BODY-IN-WHITE DOOR PANEL Chery Very (A13A)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|

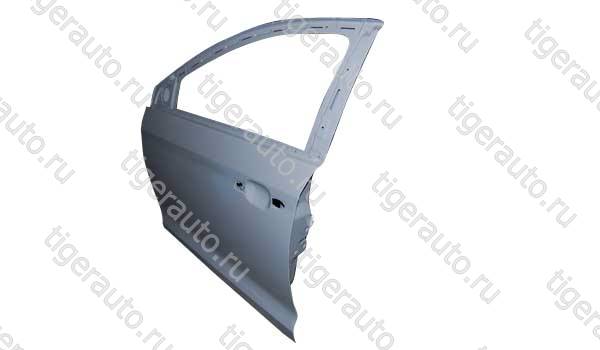

| 1 | A136101010DY | FR DOOR-LH |
 |
1 | |
| 2 | A136101020DY | FR DOOR-RH |
 |
1 | |

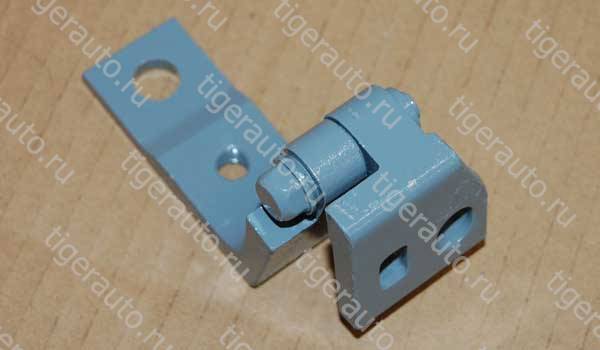

| 3 | A136106010DY | UPR HINGE-FR DOOR LH |
 |
||

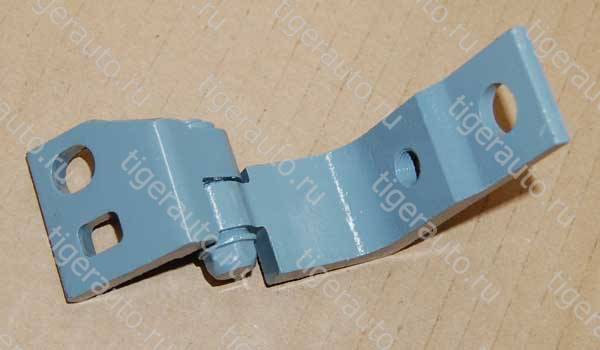

| 4 | A136106020DY | UPR HINGE-FR DOOR RH |
 |
||

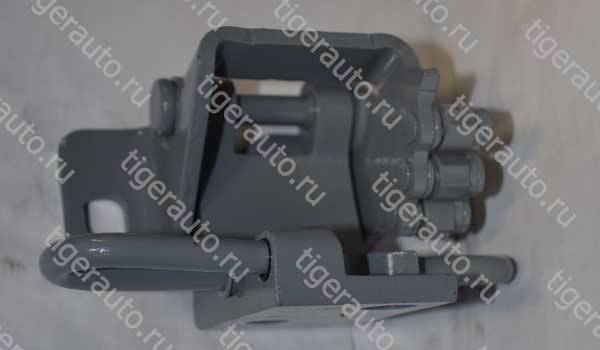

| 5 | A136106030DY | HINGE&LIMITER-FR DOOR LH |
 |
||

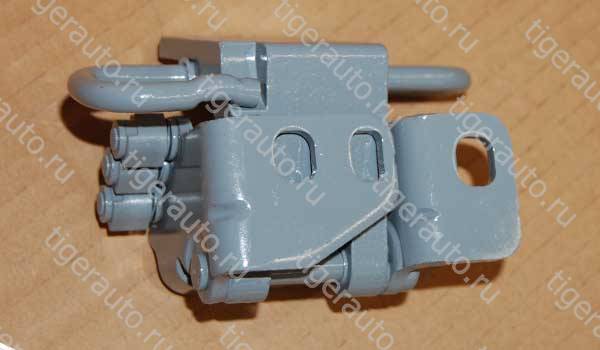

| 6 | A136106040DY | LWR HINGE&LIMITER-FR DOOR RH |
 |
||

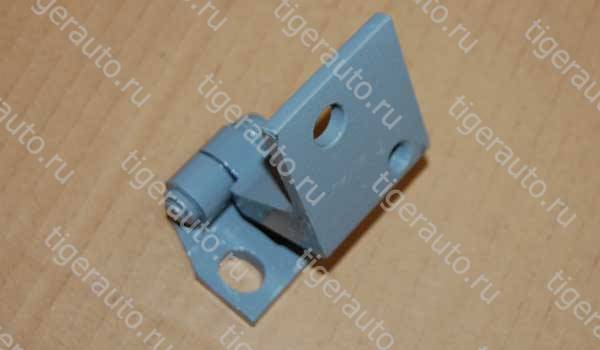

| 7 | A136206010DY | UPR HINGE-RR DOOR LH |
 |
||

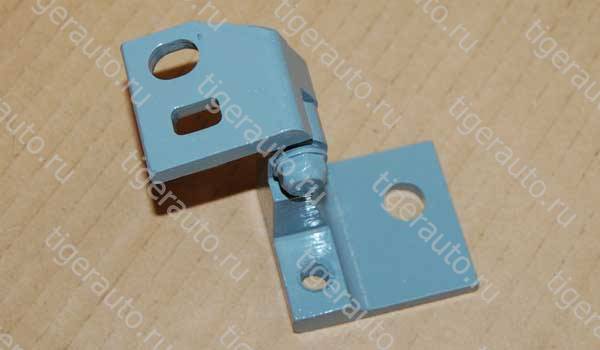

| 8 | A136206020DY | UPR HINGE-RR DOOR RH |
 |
||
| 9 | A136206030DY | LWR HINGE&LIMITER-RR DOOR LH |
 |
||
| 10 | A136206040DY | LWR HINGE WITH LIMITER-RR DOOR RH |
 |
||
| 11 | A138402030DY | LH HINGE-HOOD |
 |
1 | |

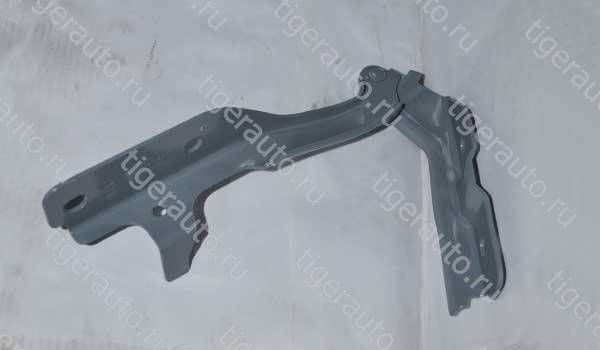

| 12 | A138402040DY | RH HINGE-HOOD |
 |
1 | |

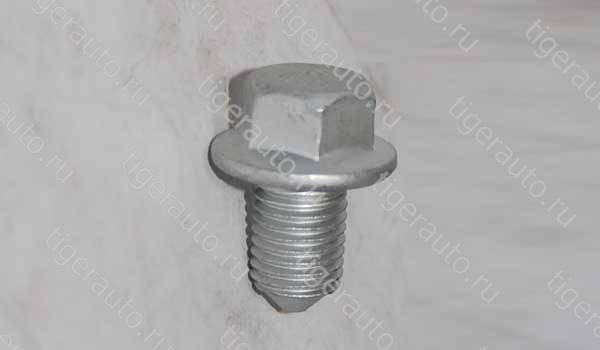

| 13 | FQ185C1016F6 | BOLT |
 |
6 | |
| 14 | J152804501DY | RR BUFFER BEAM |
 |
1 | |

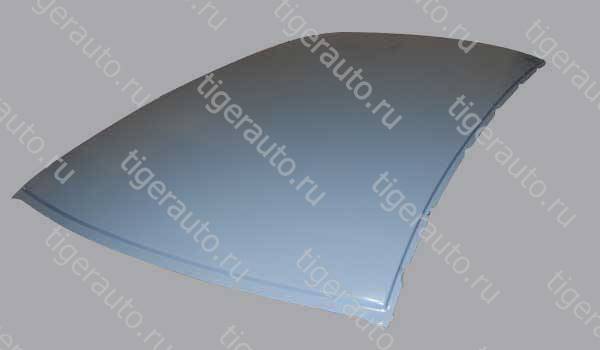

| 15 | J155701010DY | ROOF ASSY |
 |
1 | |

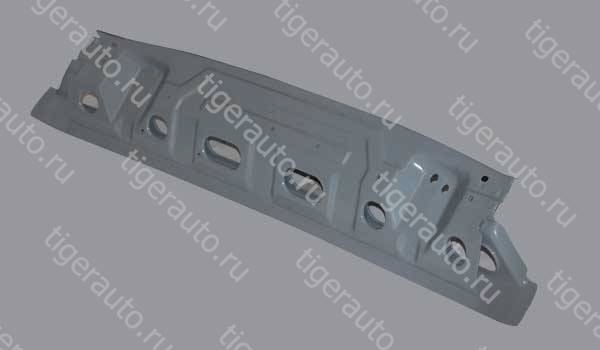

| 16 | J155701050DY | CROSSBEAM-RR ROOF |
 |
1 | |

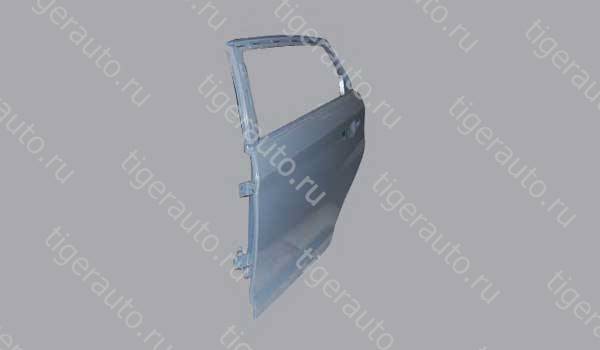

| 17 | J156201010DY | RR DOOR-LH |
 |
1 | |

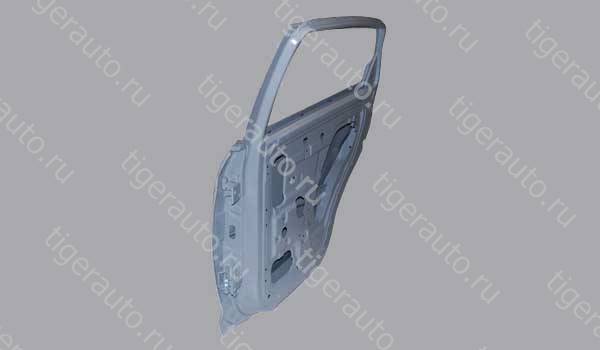

| 18 | J156201020DY | RR DOOR-RH |
 |
1 | |

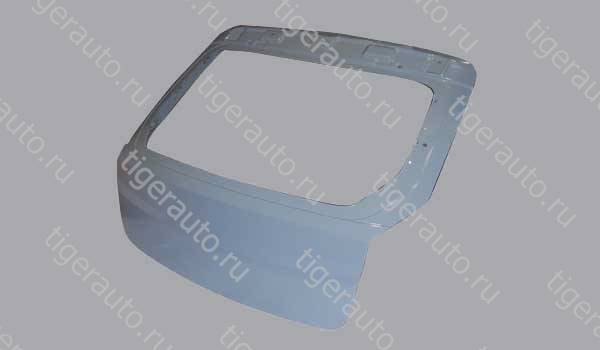

| 19 | J156301100DY | TAIL DOOR |
 |
1 | |

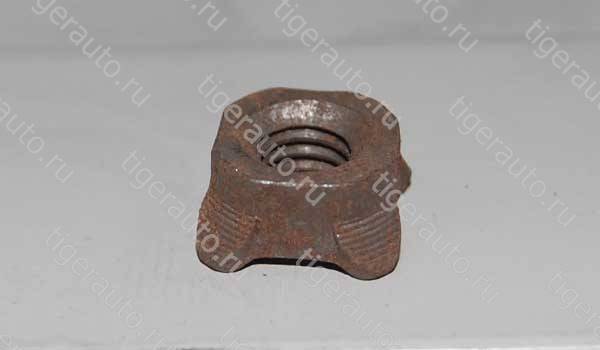

| 20 | N0111931 | NUT |
 |
1 | |
| N0111931 | NUT |
|
6 | ||
| 21 | N0111941 | NUT-WELD |
 |
3 | |
| 22 | Q1840816 | HEX FLANGE BOLT |
 |
4 | |
| 23 | Q184C1020 | BOLT |
 |
1 | |
| Q184C1020 | BOLT |
|
1 | ||
| Q184C1020 | BOLT |
|
28 | ||
| 24 | Q1860816 | HEX FLANGE BOLT |
|
8 | |
| 25 | Q32008 | HEXAGON BUT WITH FLANGE M8 |
|
6 | |
| 26 | S166306310DY | LH HINGE-TAIL DOOR |
 |
1 | |
| 27 | S166306320DY | RH HINGE-TAIL DOOR |
 |
1 | |
| 28 | A138402010DY | HOOD |
 |
1 | |
| 29 | A135701020DY | CROSSBEAM-FR ROOF |
 |
1 | |
| 30 | J155701013DY | FR REINFORCEMENT BEAM-ROOF |
|
1 | |
| 31 | J155701041DY | RR REINFORCEMENT BEAM-ROOF |
|
1 |
