CLUTCH OPERATION SYSTEM Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | A211602043 | BRACKET 2 |
 |
1 | |
| 2 | A211609010 | CLUTCH CYLINDER |
 |
1 | |
| T111609010BV | CLUTCH CYLINDER |
 |
1 | ||
| 3 | AQ60114 | SPRING RING HOOP |
 |
2 | |

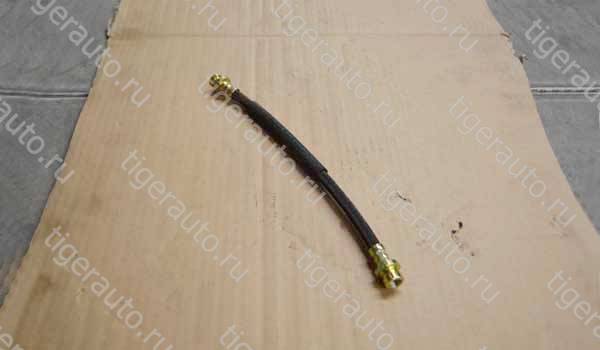

| 4 | B211602040 | HOSE |
 |
1 | |
| 5 | Q1840612 | HEXAGON BOLT WITH FLANGE M6X12 |
 |
1 | |
| 6 | Q1840616 | HEXAGON BOLT WITH FLANGE M6X16 |
|
1 | |
| 7 | Q1840822 | BOLT |
|
2 | |
| 8 | Q32008 | HEXAGON BUT WITH FLANGE M8 |
|
3 | |
| 9 | S113506021 | HOLDING REED |
 |
2 | |

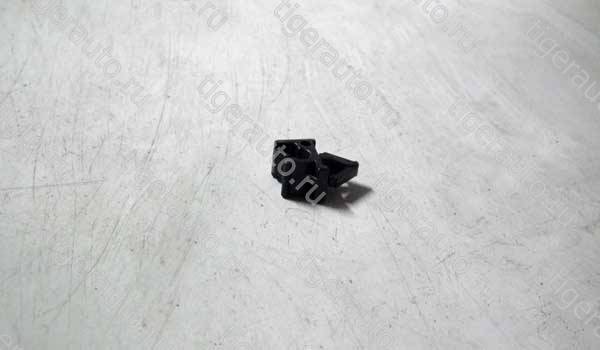

| 10 | S113506023 | CLIP |
 |
1 | |

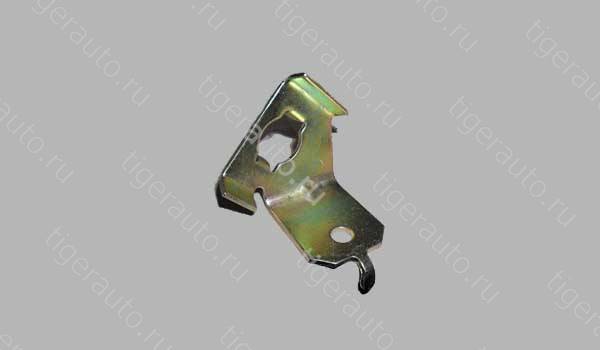

| 11 | T111602041 | BRACKET 1 |
 |
1 | |
| 12 | T211602010 | CLUTCH PEDAL |
|
1 | |
| 13 | T211602121 | FOOT CUSHION |
|
1 | |
| 14 | T211602122 | CONNECT SLEEVE-MASTER CYLINDER |
|
1 | |
| 15 | T211602123 | SHAFT SLEEVE |
|
1 | |
| 16 | T211602125 | PIN SHAFT |
|
1 | |
| 17 | T211602126 | GASKET |
|
1 | |
| 18 | T211602141 | CLUTCH SPRING |
|
1 | |
| 19 | T211602142 | SPRING SLEEVE |
|
1 | |
| 20 | T211602144 | SPRING SLEEVE |
|
1 | |
| 21 | T211602145 | CLIP |
|
1 | |
| 22 | T211602151 | CUSHION 2 |
|
1 | |
| 23 | T211602152 | CUSHION 1 |
|
1 | |
| 24 | T211607010 | CLUTCH PIPE 1 |
|
1 | |
| 25 | T211607030 | CLUTCH PIPE 2 |
|
1 | |
| 26 | T211607101 | OIL INTAKE HOSE-MASTER CYLINDER |
|
1 | |
| 27 | T211608010 | CLUTCH MASTER CYLINDER |
|
1 |
