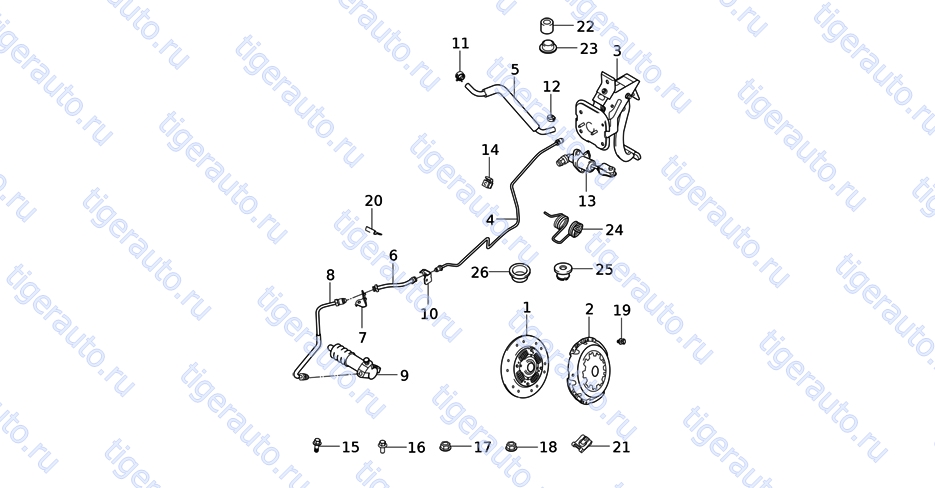

CLUTCH OPERATION SYSTEM Chery Very (A13A)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|

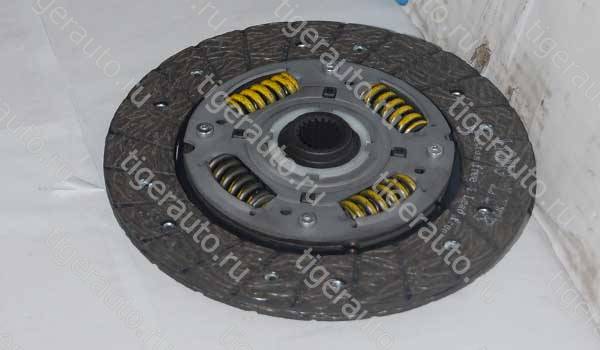

| 1 | A111601030AD | CLUTCH PLATE |
 |
1 | |

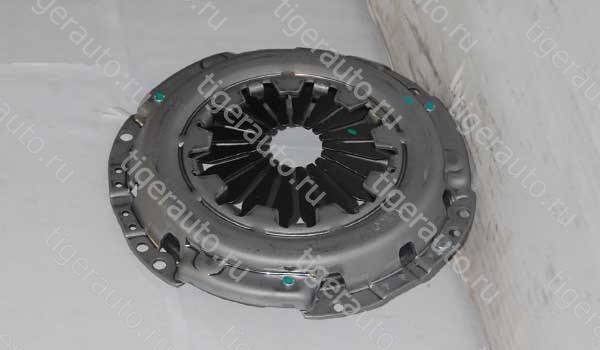

| 2 | A131601020 | CLUTCH COVER |
 |
1 | |
| 3 | A131602010 | CLUTCH PEDAL |
 |
1 | |

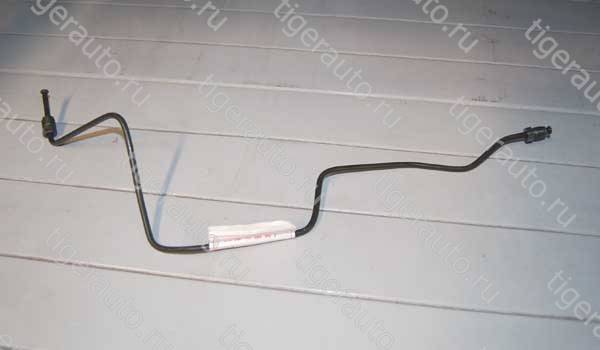

| 4 | A131602030 | PIPE 1 |
 |
1 | |
| 5 | A131602060 | OIL INTAKE HOSE-MASTER CYLINDER |
 |
1 | |

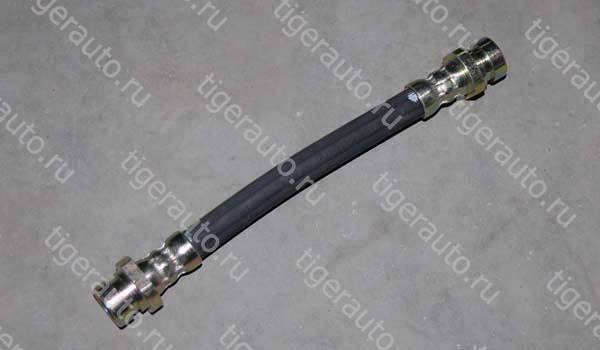

| 6 | A151602040 | HOSE |
 |
1 | |
| 7 | A151602043 | BRACKET 2 |
 |
1 | |

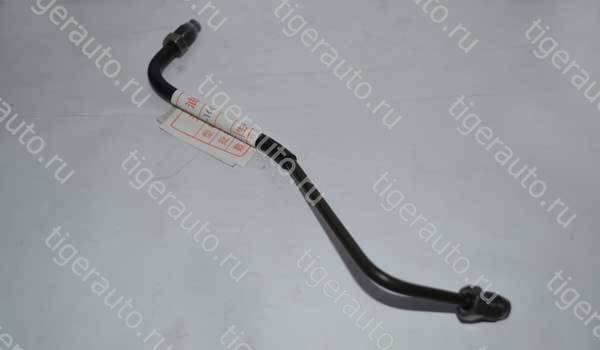

| 8 | A151602050 | PIPE 2 |
 |
1 | |
| 9 | A151602070 | CLUTCH PUMP-SUB |
 |
1 | |
| 10 | A211602043 | BRACKET 2 |
 |
1 | |
| 11 | AQ60114 | SPRING RING HOOP |
 |
1 | |
| 12 | AQ60215 | CLIP |
 |
1 | |
| 13 | B221608010 | CLUTCH MASTER CYLINDER |
 |
1 | |

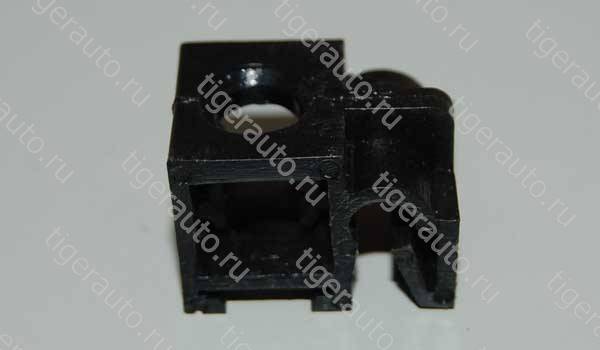

| 14 | M113506023 | CLIP SINGLE PIPE |
 |
2 | |
| 15 | Q1840616 | HEXAGON BOLT WITH FLANGE M6X16 |
 |
1 | |
| 16 | Q1840816 | HEX FLANGE BOLT |
|
2 | |
| 17 | Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
1 | |
| 18 | Q32008 | HEXAGON BUT WITH FLANGE M8 |
|
7 | |

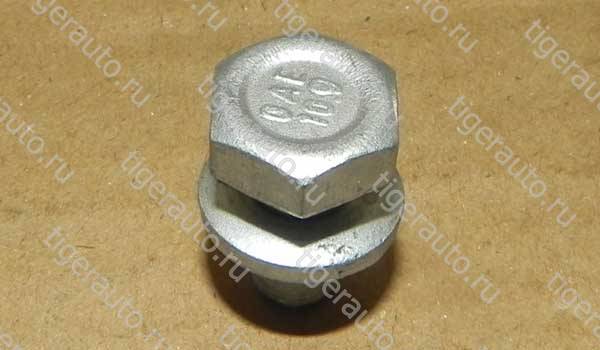

| 19 | S111601101 | BOLT-COVER |
 |
6 | |
| 20 | S113506021 | HOLDING REED |
 |
2 | |

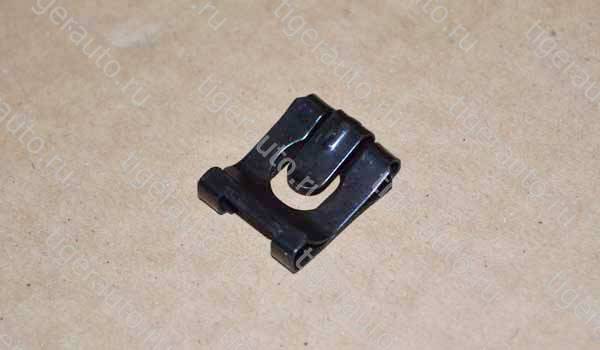

| 21 | A113504203 | GASKET |
 |
1 | |

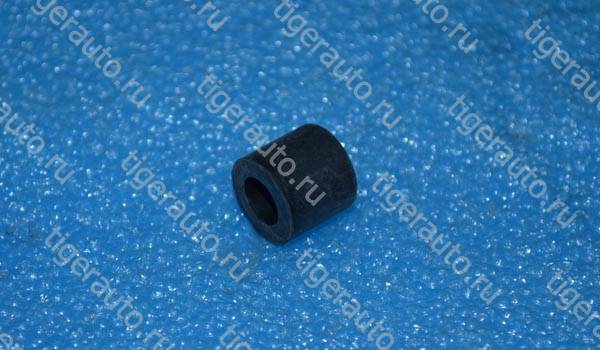

| 22 | A131602021 | STOP SLEEVE-CLUTCH PEDAL |
 |
1 | |
| 23 | A131602061 | SHAFT SLEEVE-CLUTCH PEDAL |
 |
1 | |
| 24 | A131602062 | SPRING-CLUTCH PEDAL |
 |
1 | |

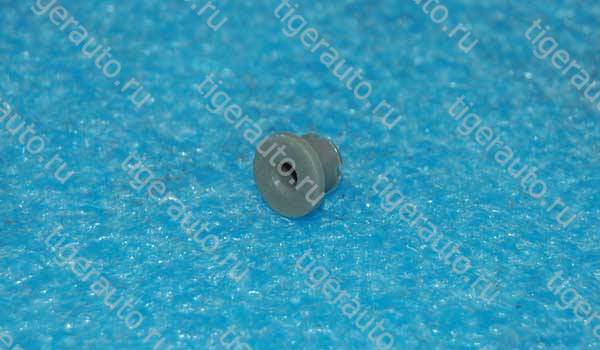

| 25 | A131602063 | SPRING SHAFT SLEEVE-CLUTCH PEDAL |
 |
1 | |
| 26 | A137AA1602011 | SLEEVE-BRAKE PEDAL |
 |
1 |
