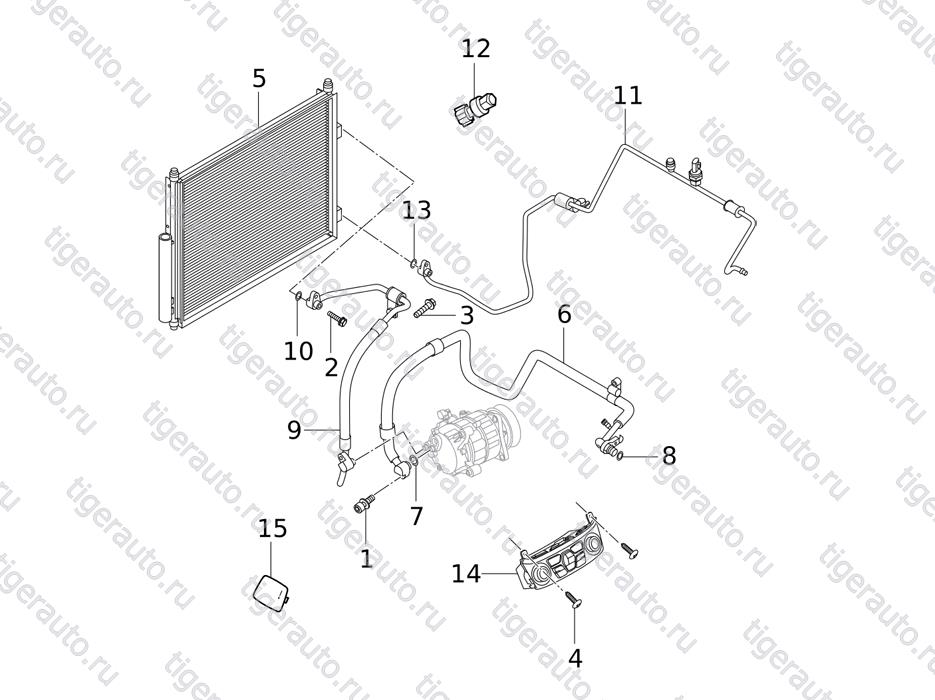

CONDENSER, PIPE, COMPRESSOR SYSTEM Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|

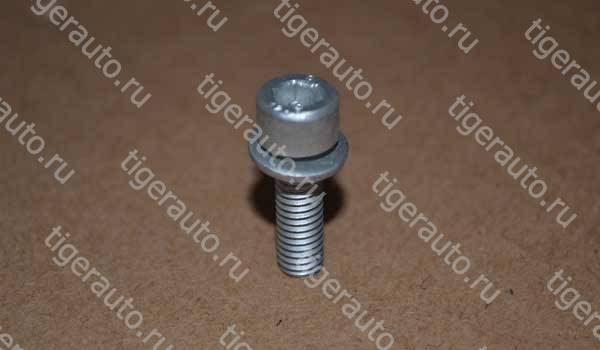

| 1 | N10227803 | BOLT |
 |
1 | |
| 2 | Q1400625 | BOLT |
 |
1 | |
| 3 | Q1840825 | HEXAGON BOLT WITH FLANGE M8X25 |
|
2 | |
| 4 | Q2734216 | CROSS RECESSED TAPPING SCREW ST4.2X16 |
|
2 | |
| 5 | T218105010 | CONDENSER |
|
1 | |
| 6 | T218108010 | PIPELINE-EVAPORATOR TO COMPRESSOR |
|
1 | |

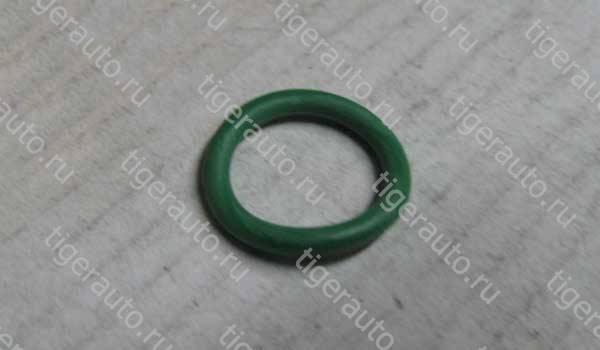

| 7 | S118108015 | O RING |
 |
1 | |
| 8 | T218108015 | O RING |
|
1 | |
| 9 | T218108030 | PIPELINE-COMPRESSOR TO CONDENSER |
|
1 | |

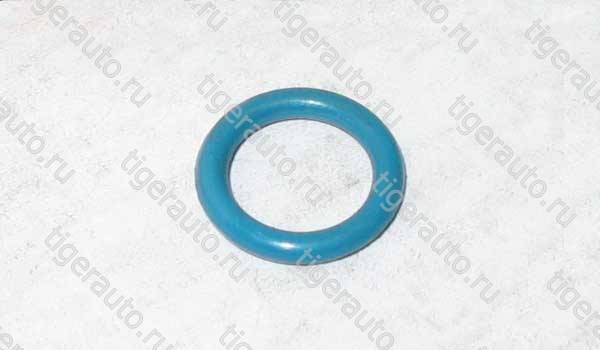

| 10 | S218108015 | O RING |
 |
2 | |
| 11 | T218108050 | PIPELINE-CONDENSER TO EVAPORATOR |
|
1 | |

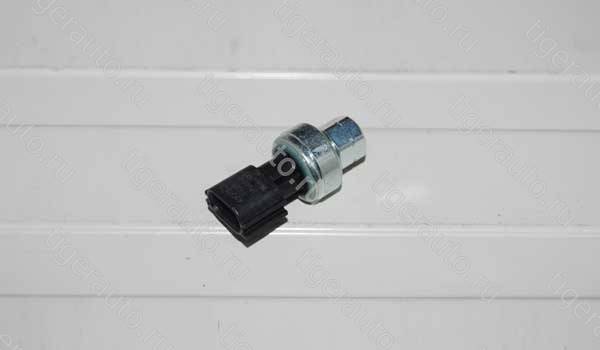

| 12 | B138111015 | SENSOR-A\C PRESSURE |
 |
1 | |

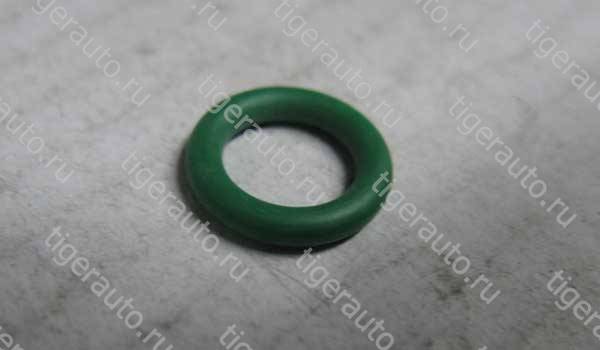

| 13 | S118108055 | O RING |
 |
2 | |
| 14 | T218112010 | CONTROL PANEL-A\C |
|
1 | |
| 15 | T218112070HA | PLUG-SUNLIGHT SENSOR |
|
1 |
