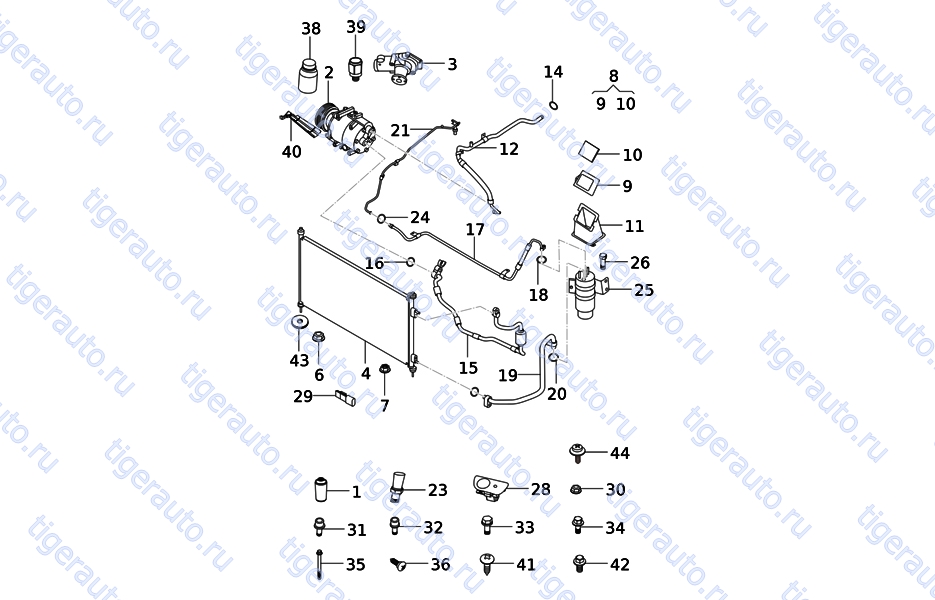

CONDENSER,PIPE,COMPRESSOR SYSTEM Chery Very (A13A)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | A114702011AB | REFRIGERATION OIL |
 |
450 | |

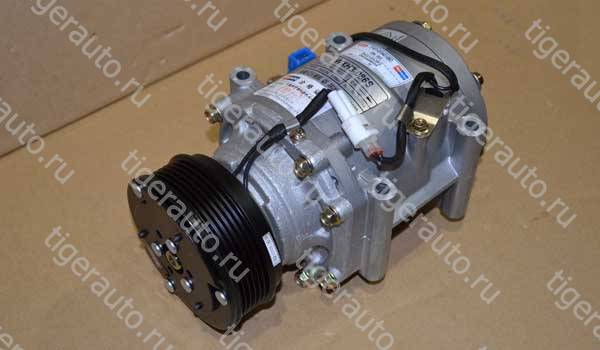

| 2 | A118104010BD | A\C COMPRESSOR |
 |
||

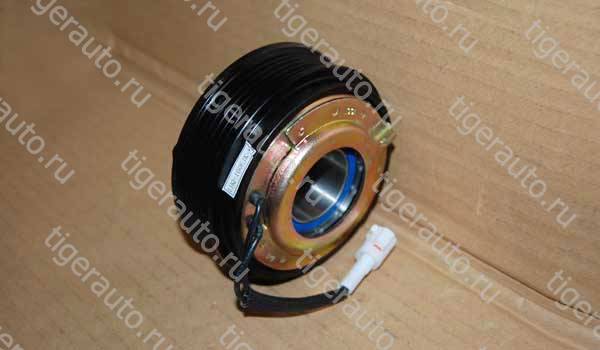

| 3 | A118104013BD | CLUTCH-A\C COMPRESSOR |
 |
||

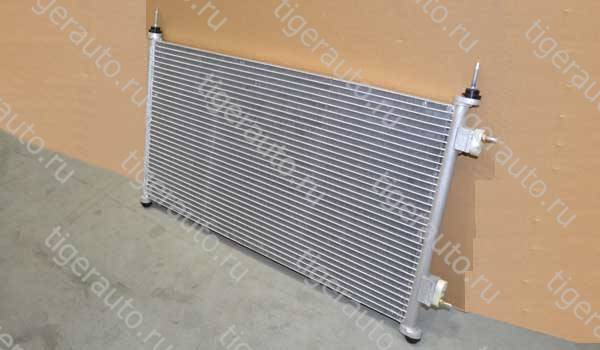

| 4 | A138105010 | CONDENSER |
 |
1 | |
| 6 | Q32006 | HEXAGON BUT WITH FLANGE M6 |
 |
2 | |
| Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
2 | ||
| Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
5 | ||

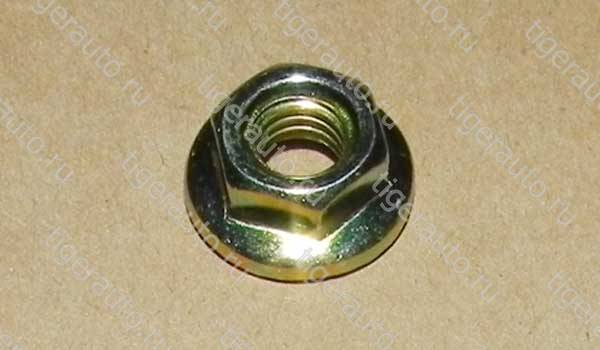

| 7 | N0150822 | NUT |
 |
2 | |
| N0150822 | NUT |
|
2 | ||
| N0150822 | NUT |
|
2 | ||

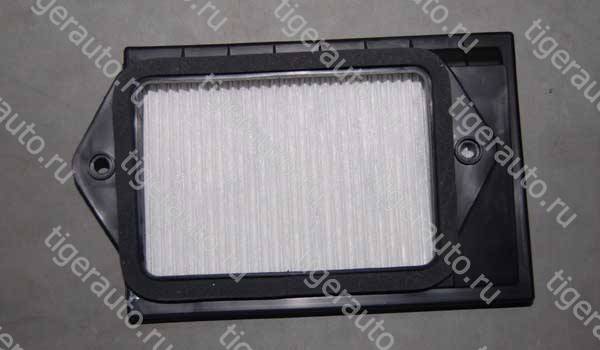

| 8 | A138107910 | AIR INLET FILTER |
 |
1 | |

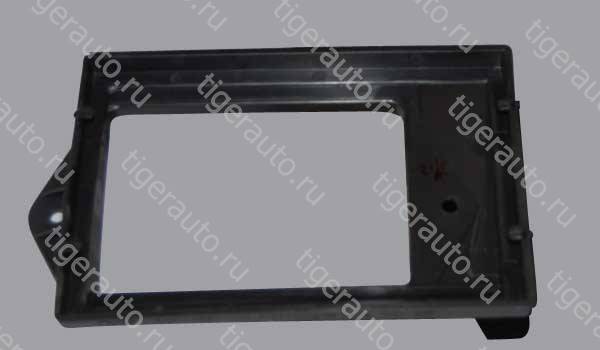

| 9 | A138107913 | BRACKET-AIR INLET FILTER |
 |
1 | |

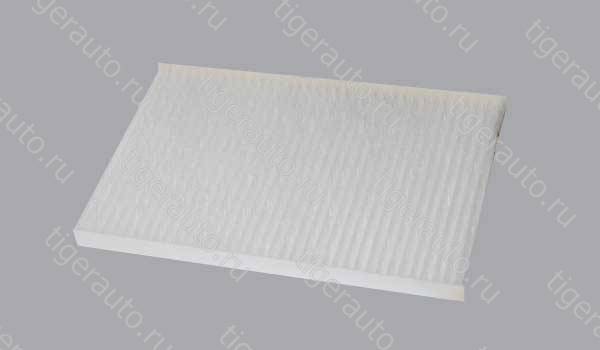

| 10 | A138107915 | CORE-AIR INLET FILTER |
 |
1 | |
| 11 | A138107920 | AIR INLET DUCT |
 |
1 | |
| 12 | A138108010FA | PIPELINE-EVAPORATOR TO COMPRESSOR |
 |
1 | |
| 14 | A138108015 | O RING |
 |
1 | |
| 15 | A138108030 | PIPELINE-COMPRESSOR TO CONDENSER |
 |
1 | |
| 16 | A138108045 | O RING |
 |
1 | |

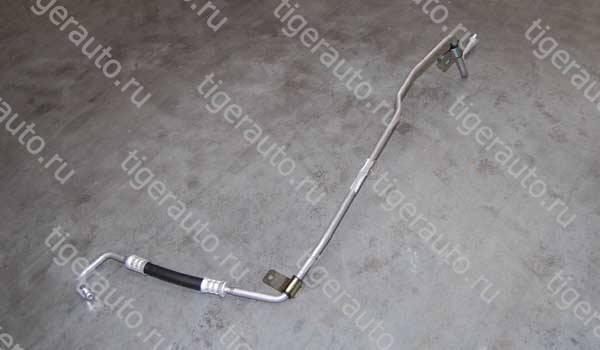

| 17 | A138108050FA | PIPELINE 1-DRYER TO EVAPORATOR |
 |
1 | |
| 18 | S118108019 | O RING |
 |
2 | |
| S118108019 | O RING |
|
2 | ||
| S118108019 | O RING |
|
2 | ||

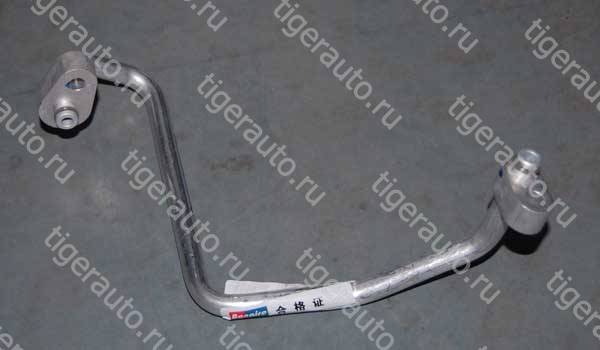

| 19 | A138108070 | PIPELINE-CONDENSER TO DRYER |
 |
1 | |
| 20 | A11BJ8108015BD | O RING |
 |
1 | |
| A11BJ8108015BD | O RING |
|
1 | ||
| 21 | A138108150FA | PIPELINE 2-DRYER TO EVAPORATOR |
 |
1 | |
| 23 | A118111015AB | SWITCH-A\C PRESSURE |
 |
1 | |

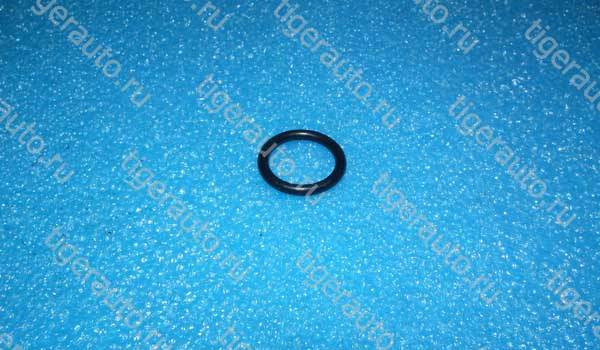

| 24 | A11BJ8108055BD | O RING |
 |
1 | |
| A11BJ8108055BD | O RING |
|
1 | ||

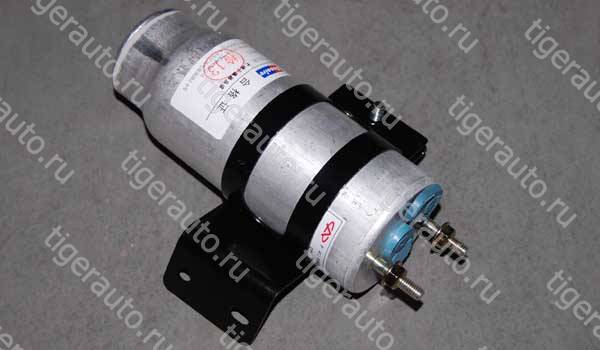

| 25 | A138109010 | DRYER |
 |
1 | |
| 26 | Q150B0620 | BOLT |
|
1 | |
| 28 | A138112070BA | SUNLIGHT SENSOR |
 |
1 | |
| 29 | B118112050 | SENSOR-OUTDOOR TEMPERATURE |
 |
1 | |

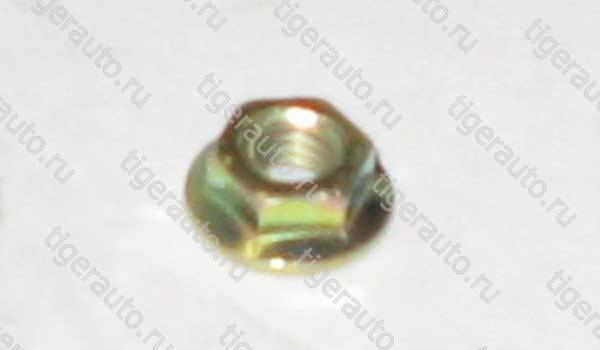

| 30 | N0221481 | NUT-FLANGE&HEXAGON |
 |
2 | |
| 31 | N10227803 | BOLT |
 |
1 | |

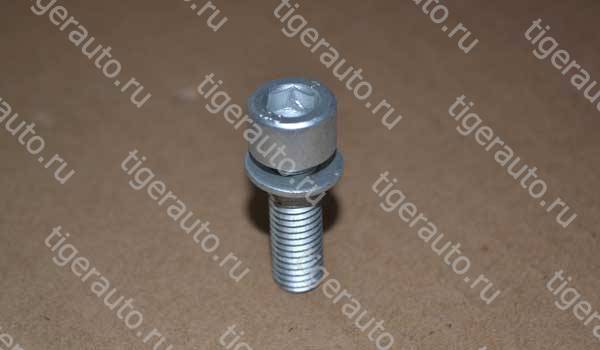

| 32 | N90415102 | BOLT |
 |
1 | |
| 33 | Q1400616 | HEX BOLT |
|
4 | |
| 34 | Q1840616 | HEXAGON BOLT WITH FLANGE M6X16 |
|
3 | |
| 35 | Q1840898 | HEXAGON BOLT WITH FLANGE M8X98 |
 |
4 | |
| 36 | Q2734816 | TAPPING SCREW |
|
2 | |

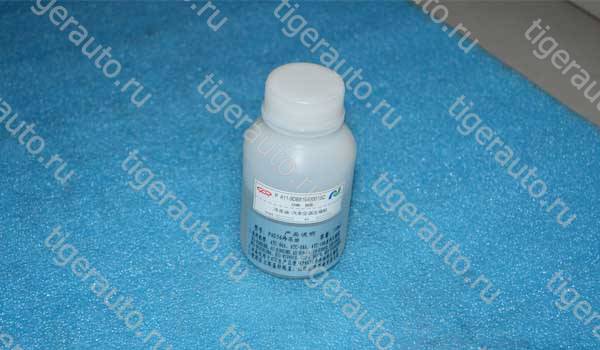

| 38 | A119DB81040001BD | REFRIGERATION OIL |
 |
1 | |
| A119EC81040001BD | REFRIGERATION OIL |
 |
1 | ||
| 39 | A119DB8104011BD | RELIEF VALVE |
 |
1 | |

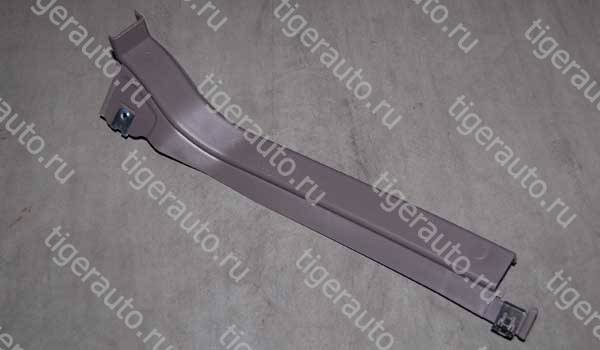

| 40 | A135301590 | WATERPROOF PANEL-A\C |
 |
1 | |
| 41 | Q2734216 | CROSS RECESSED TAPPING SCREW ST4.2X16 |
|
2 | |
| 42 | Q1840820 | HEXAGON BOLT WITH FLANGE M8X20 |
|
1 | |

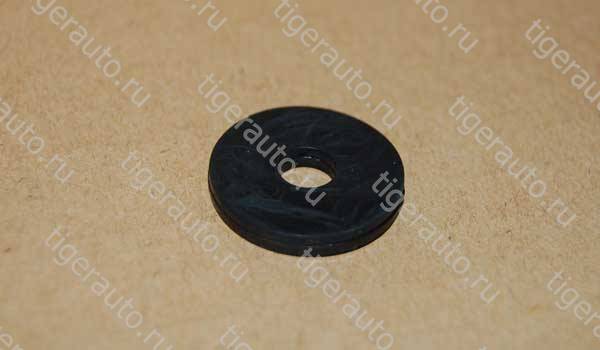

| 43 | A118105017 | RUBBER WASHER-CONDENSER |
 |
1 | |

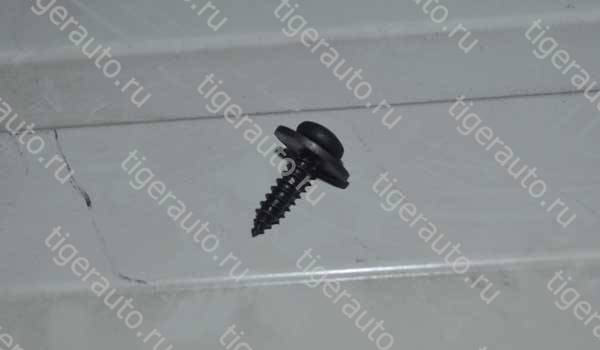

| 44 | N10003201 | SCREW |
 |
1 |
