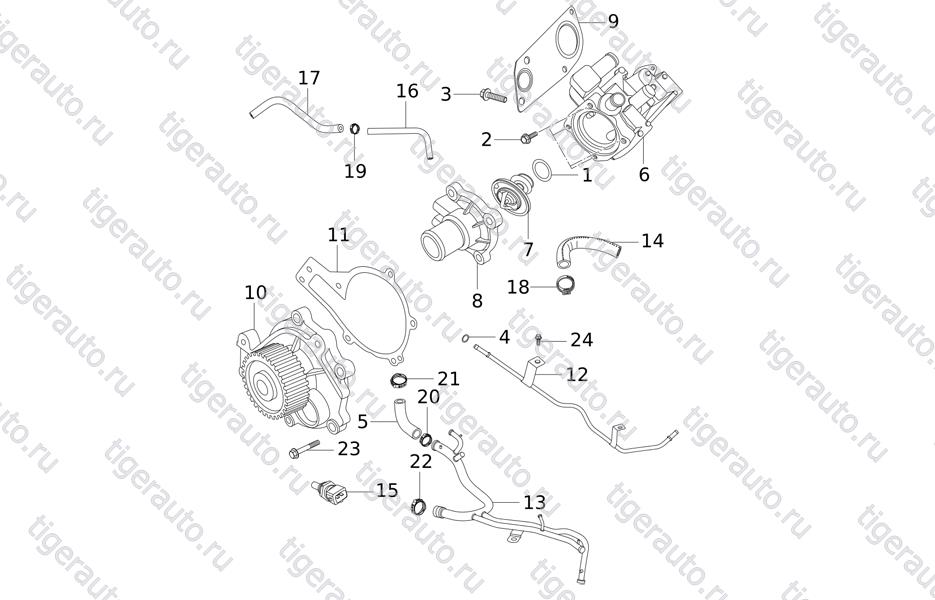

COOLING SYSTEM (E01AA) Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | 473H1307021 | O RING |
 |
1 | |
| 2 | 4801005041 | HEX-HEAD FLANG BOLT |
|
4 | |
| 3 | 4801007161 | HEX FLANGE BOLT |
|
6 | |

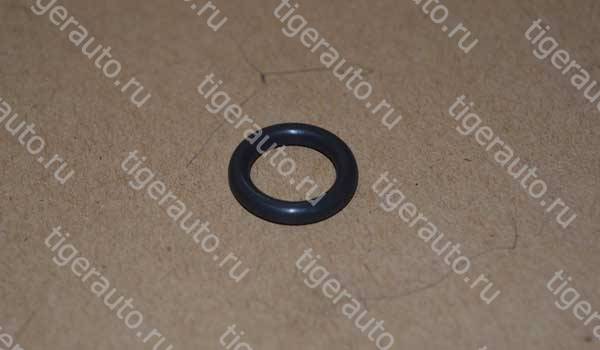

| 4 | 481H1009114 | O RING |
 |
1 | |

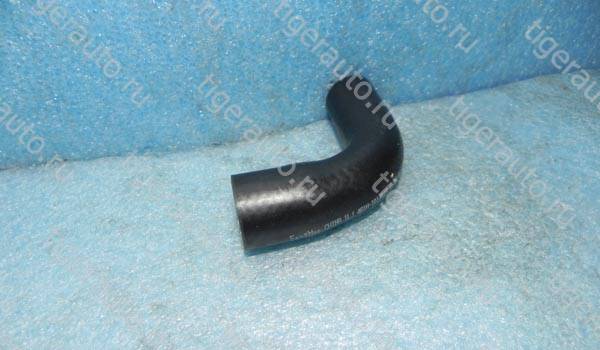

| 5 | 481H1014019 | HOSE-TO MANIFOLD |
 |
1 | |

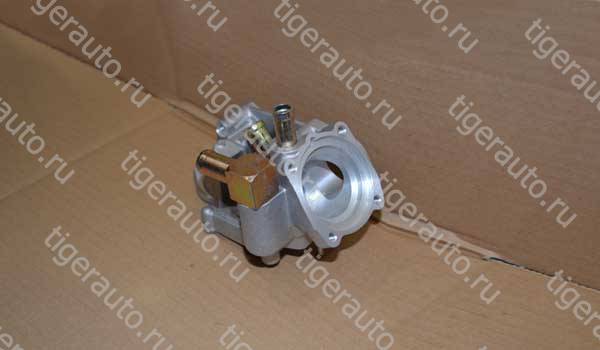

| 6 | 481H1306011AB | THERMOSTAT HOUSING LWR |
 |
1 | |
| 7 | 481H1306020 | THERMOSTAT |
 |
1 | |
| 8 | 481H1306021AC | THERMOSTAT COVER |
 |
1 | |

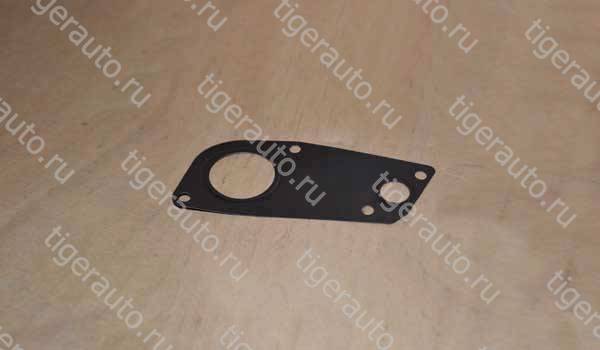

| 9 | 481H1306056 | GASKET-THERMOSTAT HOUSING LWR |
 |
1 | |

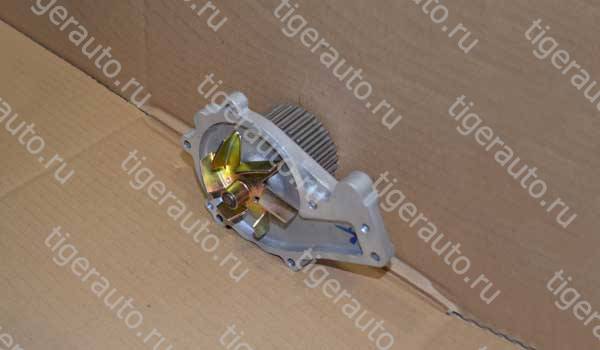

| 10 | 484FC1307010BA | WATER PUMP |
 |
1 | |

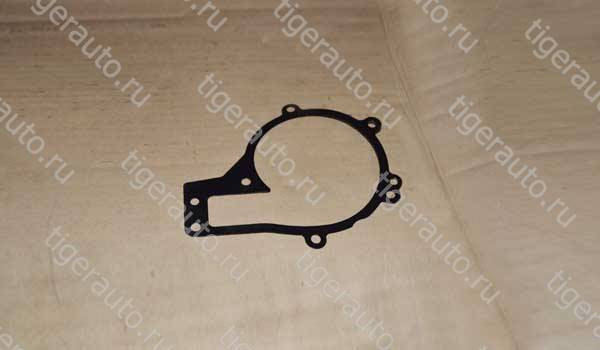

| 11 | 484FC1307041 | GASKET-WATER PUMP |
 |
1 | |

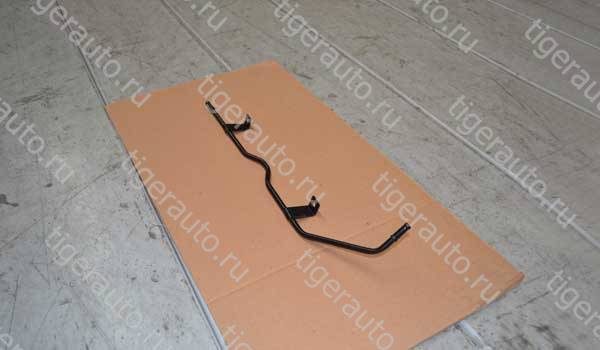

| 12 | 484H1303330 | STEEL PIPE-EXHAUST |
 |
1 | |

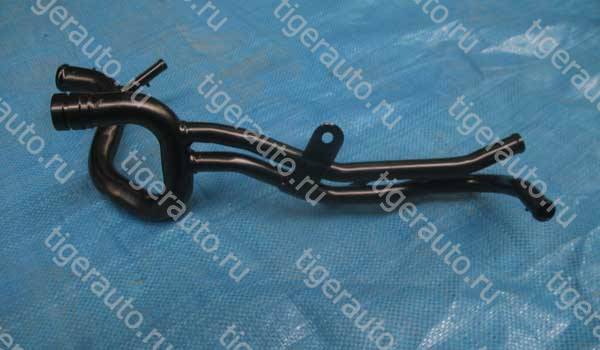

| 13 | A111303310DA | COOLING WATER PIPE 1 |
 |
1 | |

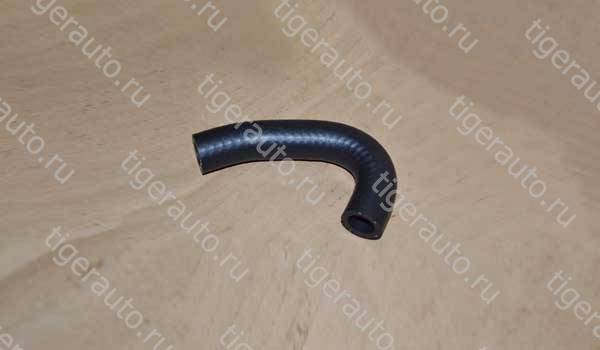

| 14 | A111303711 | HOSE-CIRCULATION WATER OUTLET |
 |
1 | |
| 15 | A113617011 | SENSOR-WATER TEMPERATURE |
 |
1 | |
| 16 | A211303701 | WATER HOSE-ENGINE TO EXPANSION TANK |
 |
1 | |

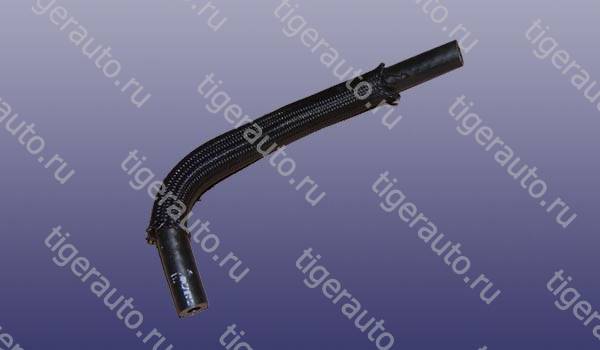

| 17 | A211303821 | OUTLET WARM PIPE-THROTTLE |
 |
1 | |

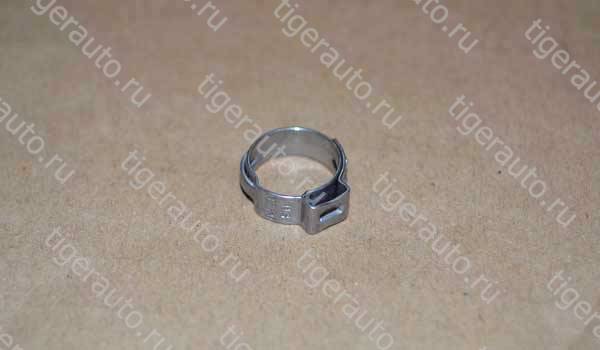

| 18 | AQ60211 | CLIP |
 |
1 | |
| 19 | AQ60215FA | CLIP |
 |
2 | |
| 20 | AQ60218 | CLIP |
 |
1 | |
| 21 | AQ60222FA | CLIP |
 |
1 | |
| 22 | AQ60227FA | CLIP |
 |
2 | |
| 23 | Q1840650 | HEX-HEAD FLANG BOLT |
|
4 | |
| 24 | Q1840820 | HEXAGON BOLT WITH FLANGE M8X20 |
|
1 |
