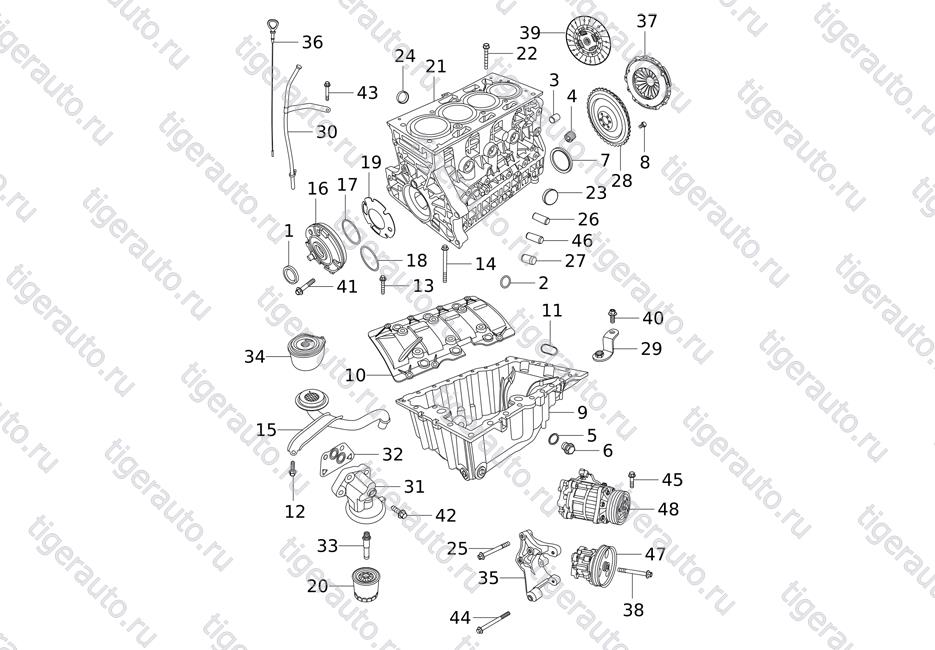

CYLINDER BLOCK, OIL PAN, FLYWHEEL Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | 4801011020 | FR OIL SEAL-CRANKSHAFT |
 |
2 | |
| 481H1011020BA | FR OIL SEAL-CRANKSHAFT |
 |
1 | ||
| 2 | 481H1002037 | O RING |
 |
2 | |
| 3 | 481H1002038 | LOCATING SLEEVE-TRANSMISSION |
 |
2 | |
| 4 | 481H1002039 | PLUG SCREW |
 |
1 | |
| 5 | 481H1002041 | GASKET |
 |
1 | |
| 6 | 481H1002042 | OIL DRAIN PLUG-OIL PAN |
 |
1 | |
| 7 | 481H1005030BA | RR OIL SEAL-CRANKSHAFT |
 |
1 | |
| 8 | 481H1005121BA | FLYWHEEL BOLT |
 |
6 | |
| 9 | 481H1009010CA | OIL PAN |
 |
1 | |
| 10 | 481H1009013CA | PLATE-OIL INSULATION |
 |
1 | |
| 11 | 481H1009022 | O RING-OIL PAN |
 |
1 | |
| 12 | 481H1009023 | HEX FLANGE BOLT |
 |
18 | |
| 13 | 481H1009024 | HEX FLANGE BOLT |
 |
1 | |
| 14 | 481H1009026 | HEX FLANGE BOLT |
 |
6 | |
| 15 | 481H1010010BA | OIL COLLECTOR |
 |
1 | |
| 16 | 481H1011030BA | OIL PUMP |
 |
1 | |
| 17 | 481H1011022 | O RING |
 |
1 | |
| 18 | 481H1011032 | O RING |
 |
1 | |
| 19 | 481H1011035 | GASKET-OIL PUMP |
 |
1 | |
| 20 | 481H1012010 | OIL FILTER |
 |
1 | |
| 21 | 484F1002010 | CYLINDER BLOCK |
 |
1 | |
| 22 | 481H1002024 | BOLT-BEARING CAP |
 |
10 | |
| 23 | 481H1002034 | BOWL PLUG |
 |
5 | |
| 24 | 481H1002036 | BOWL PLUG |
 |
1 | |
| 25 | Q1840880 | BOLT |
|
10 | |
| 26 | Q5210616 | LOCATING PIN |
 |
2 | |
| 27 | Q5210814 | LOCATING PIN |
|
6 | |
| 28 | 484F1005110BB | FLYWHEEL ASSEMBLY |
|
1 | |
| 29 | 484F1008022 | BRACKET-INTAKE MANIFOLD |
 |
1 | |
| 30 | 484F1009031 | PIPE-OIL LEVEL GAUGE |
 |
1 | |
| 31 | 484F1012023 | SEAT-OIL FILTER |
 |
1 | |
| 32 | 484F1012026 | GASKET-OIL FILTER SEAT |
 |
1 | |
| 33 | 484FC1012021 | JOINT-OIL FILTER |
 |
1 | |
| 34 | 484FC1013010 | OIL COOLER |
 |
1 | |
| 35 | A113412041EA | BRACKET-STEERING PUMP |
 |
1 | |
| 36 | A211009110 | ROD-OIL LEVEL GAUGE |
 |
1 | |
| 37 | T211601020 | COVER ASSY - CLUTCH |
|
1 | |
| 38 | FQ184D08100 | BOLT |
 |
1 | |
| 39 | T211601030 | DRIVEN DISK ASSY |
|
1 | |
| 40 | Q1840616 | HEXAGON BOLT WITH FLANGE M6X16 |
|
9 | |
| 41 | Q1840635 | HEX FLANGE BOLT |
|
4 | |
| 42 | Q1840825 | HEXAGON BOLT WITH FLANGE M8X25 |
|
6 | |
| 43 | Q1840650 | HEX-HEAD FLANG BOLT |
|
4 | |
| 44 | Q18410120 | HEX FLANGE BOLT |
 |
2 | |
| 45 | Q1841040 | HEX-HEAD FLANG BOLT |
|
4 | |
| 46 | Q5210610 | LOCATING PIN |
 |
2 | |
| 47 | T213407010 | STEERING PUMP |
|
1 | |
| 48 | T218103010 | AC COMPRESSOR ASSY |
|
1 |
