DASHBOARD Chery Bonus (A13)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | A135305070 | DASHBOARD FRAME |
 |
1 | |
| 2 | A135305120 | FR ASHTRAY |
 |
1 | |
| 3 | A135305150 | LH PANEL-DASHBOARD |
 |
1 | |
| 4 | A135305160 | RH PANEL-DASHBOARD |
 |
1 | |
| 5 | A135305250 | LWR PROTECTING PLATE LH-DASHBOARD |
 |
1 | |

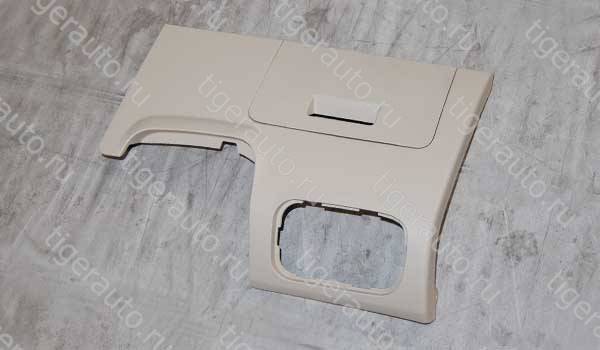

| A135305250BA | LWR PROTECTING PLATE LH-DASHBOARD |
 |
1 | ||

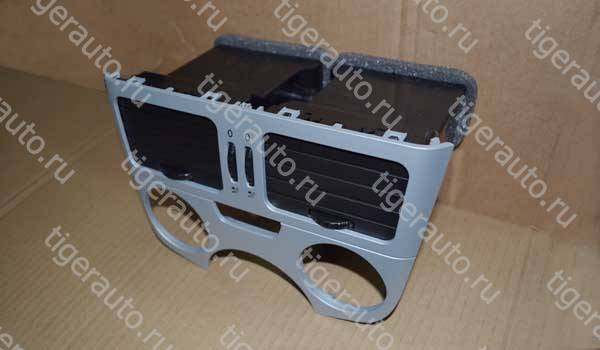

| 7 | A135305310 | MD PANEL |
 |
1 | |

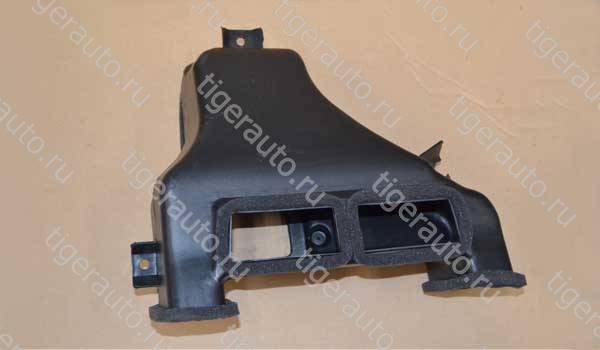

| 8 | A135305370 | DOUBLE AIR OUTLET |
 |
1 | |

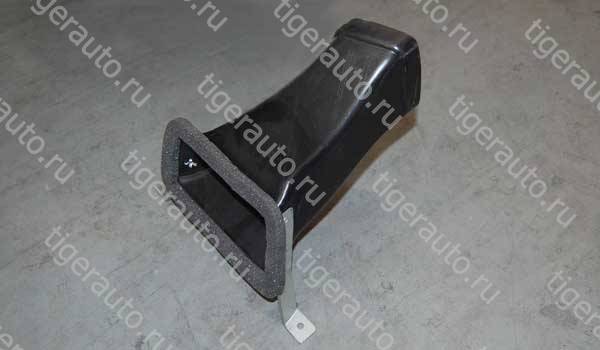

| 9 | A135305380 | SINGLE AIR VENT |
 |
1 | |

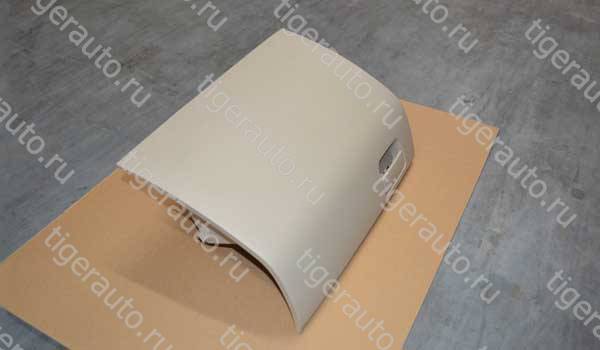

| 10 | A135305410 | STORAGE BOX |
 |
1 | |

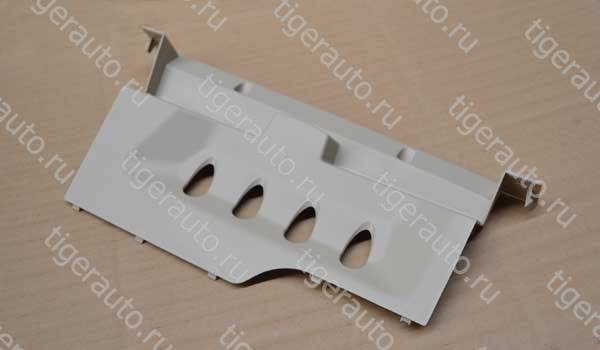

| 11 | A135305420 | UPR PANEL-STORAGE BOX |
 |
1 | |

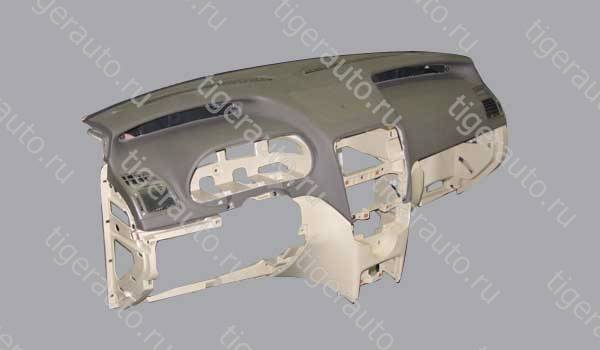

| 12 | A135305550 | DASHBOARD-SUB |
 |
1 | |
| A135305550BA | DASHBOARD-SUB |
 |
1 | ||

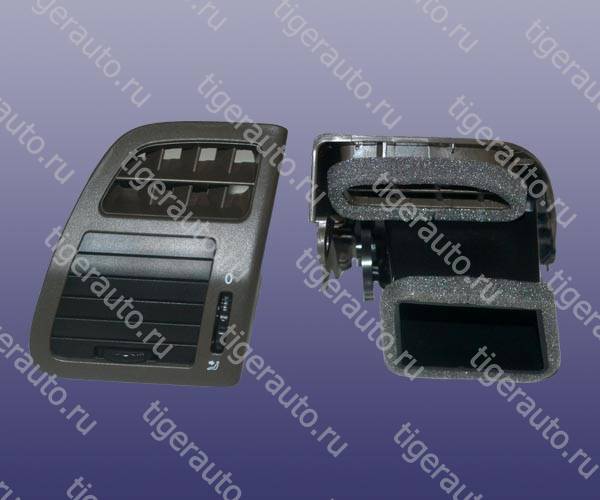

| 13 | A135305080 | AIR OUTLET-A\C RH |
 |
1 | |
| A135305080 | AIR OUTLET-A\C RH |
|
|||

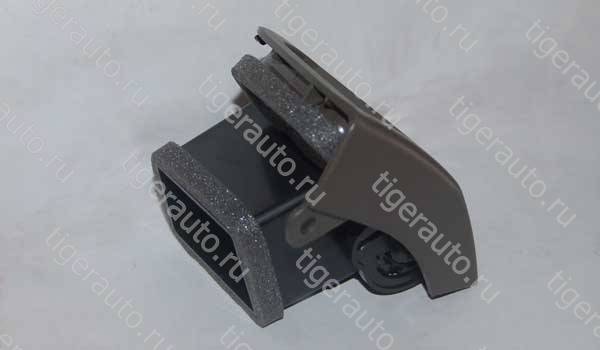

| 14 | A135305090 | LH AIR OUTLET-A\C |
 |
1 | |
| A135305090 | LH AIR OUTLET-A\C |
|
|||

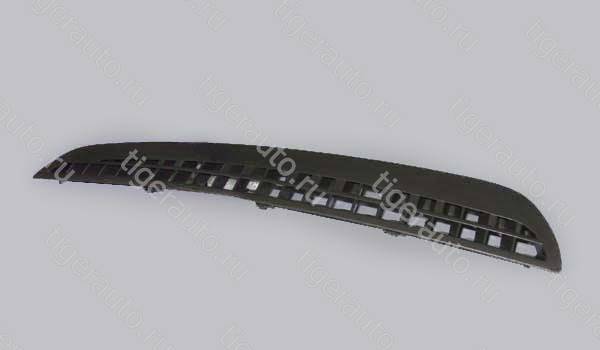

| 15 | A135305331 | FR DEFROSTING OUTLET-LH |
 |
1 | |
| A135305331 | FR DEFROSTING OUTLET-LH |
|
|||
| 16 | A135305332 | FR DEFROSTING OUTLET-RH |
 |
1 | |
| A135305332 | FR DEFROSTING OUTLET-RH |
|
|||

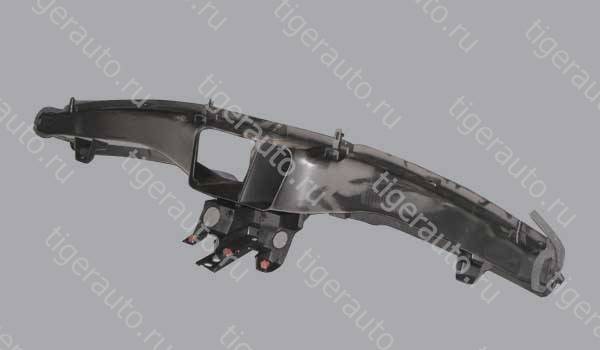

| 17 | A135305340 | DEFROSTING AIR DUCT-MD |
 |
1 | |
| A135305340 | DEFROSTING AIR DUCT-MD |
|
|||

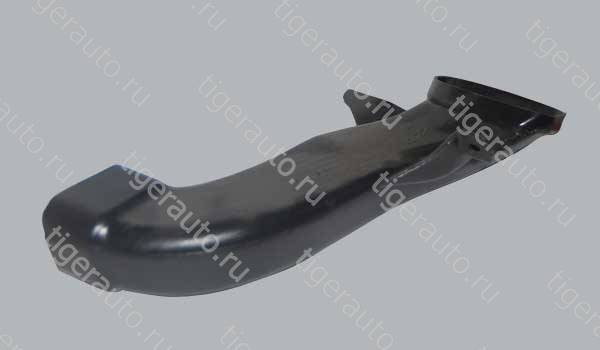

| 18 | A135305350 | DEFROSTING AIR DUCT-LH |
 |
1 | |
| A135305350 | DEFROSTING AIR DUCT-LH |
|
|||

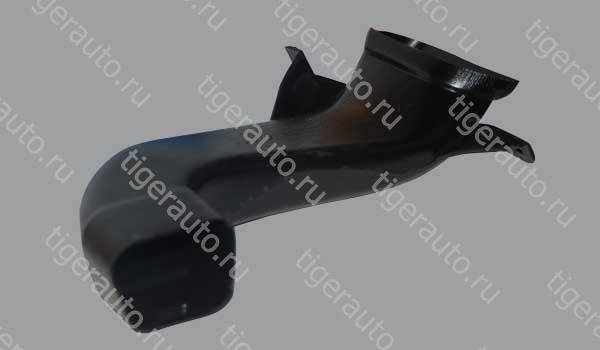

| 19 | A135305360 | DEFROSTING VENT PIPE-RH |
 |
1 | |
| A135305360 | DEFROSTING VENT PIPE-RH |
|
|||

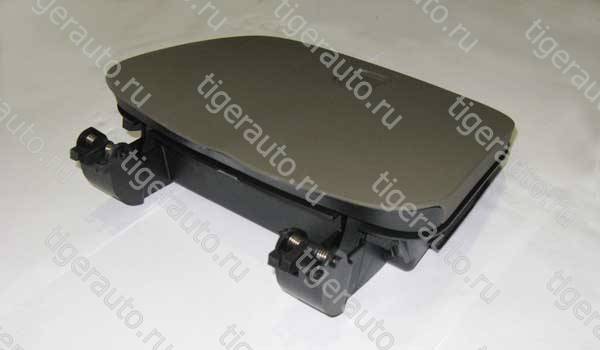

| 20 | A135305430 | MD STORAGE BOX |
 |
1 | |
| A135305430 | MD STORAGE BOX |
|
|||

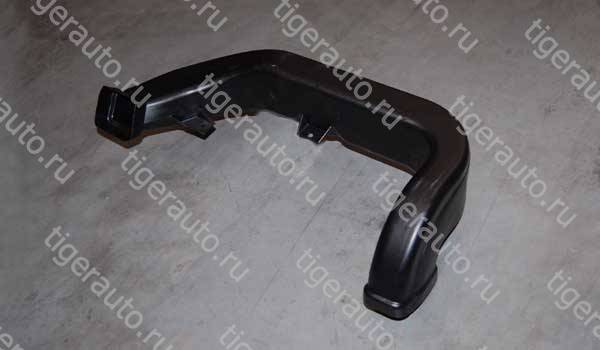

| 22 | A135305710 | LH VENT PIPE |
 |
1 | |

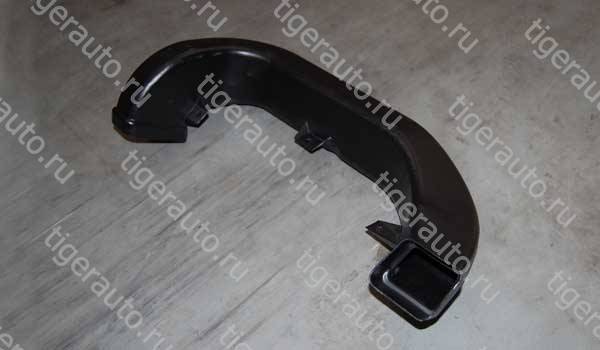

| 23 | A135305720 | RH VENT PIPE |
 |
1 | |
| 24 | A135305820 | PAB |
 |
1 | |
| 26 | Q1400616 | HEX BOLT |
 |
22 | |
| 27 | Q2734216 | CROSS RECESSED TAPPING SCREW ST4.2X16 |
|
8 | |
| 28 | Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
10 | |
| 29 | A135305230 | COVER-ELECTRIC BOX |
 |
1 | |
| A135305230BA | COVER-ELECTRIC BOX |
 |
1 | ||
| 30 | A135305212 | AIR DAMPER |
|
1 | |
| A135305212 | AIR DAMPER |
|
1 | ||
| 31 | Q1840816 | HEX FLANGE BOLT |
|
2 |
