ENGINE COMPARTMENT Chery Very (A13A)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | A115100365 | SCREW |
 |
13 | |
| A115100365 | SCREW |
|
1 | ||
| A115100365 | SCREW |
|
1 | ||
| A115100365 | SCREW |
|
1 | ||
| A115100365 | SCREW |
|
1 | ||
| A115100365 | SCREW |
|
|||
| 2 | A135100030PADY | LH CARLING |
 |
1 | |
| 3 | A135100040PADY | RH CARLING |
 |
1 | |
| 4 | A135100360PADY | COVER-FR CARLING LH |
 |
||
| 5 | A135100460PADY | PANEL-FR CARLING RH |
 |
1 | |
| 6 | A135100580PADY | RH COVER |
 |
1 | |
| A135100580PADY | RH COVER |
|
1 | ||
| 7 | A135100590PADY | LH COVER-QUARTER PANEL |
 |
||
| A135100590PADY | LH COVER-QUARTER PANEL |
|
1 | ||
| 8 | A135100710DY | LH BRACKET-MUDGUARD |
 |
||
| 9 | A135100730DY | RH BRACKET-MUDGUARD |
 |
1 | |
| 10 | A135300100FLDY | FR RETAINING PLATE |
 |
1 | |
| A135300100FLDY | FR RETAINING PLATE |
|
1 | ||
| A135300100PADY | FR RETAINING PLATE |
 |
1 | ||
| 11 | A135300120DY | LWR CROSSBEAM ASSY-FR WINDSHIELD |
 |
1 | |
| A135300120DY | LWR CROSSBEAM ASSY-FR WINDSHIELD |
|
1 | ||
| A135300120DY | LWR CROSSBEAM ASSY-FR WINDSHIELD |
|
1 | ||
| A135300120DY | LWR CROSSBEAM ASSY-FR WINDSHIELD |
|
1 | ||
| 12 | A135300200PADY | FR PANEL-DASH PANEL |
 |
1 | |
| A135300200PADY | FR PANEL-DASH PANEL |
|
1 | ||
| 13 | A135300310PADY | LWR CROSSBEAM ASSY-FR WINDSHIELD |
 |
1 | |
| A135300310PADY | LWR CROSSBEAM ASSY-FR WINDSHIELD |
|
1 | ||
| A135300310PADY | LWR CROSSBEAM ASSY-FR WINDSHIELD |
|
|||
| A135300310PADY | LWR CROSSBEAM ASSY-FR WINDSHIELD |
|
|||
| 14 | A135300320DY | MD FIXING BRACKET-WIPER |
 |
1 | |
| A135300320DY | MD FIXING BRACKET-WIPER |
|
1 | ||
| A135300320DY | MD FIXING BRACKET-WIPER |
|
|||
| A135300320DY | MD FIXING BRACKET-WIPER |
|
|||
| 15 | A135300810DY | MD SUPPORT PANEL-UPR RADIATOR CROSSBEAM |
 |
1 | |
| 16 | A135300820DY | UPR RADIATOR CROSSBEAM-SUB |
 |
1 | |
| 17 | A135300850PADY | UPR CROSSBEAM-FR BUMPER |
 |
1 | |
| 18 | A138403300PADY | FR WHEEL ARCH-LH |
 |
1 | |
| 19 | A138403340DY | RADIATOR BRACKET |
 |
1 | |
| A138403340DY | RADIATOR BRACKET |
|
|||

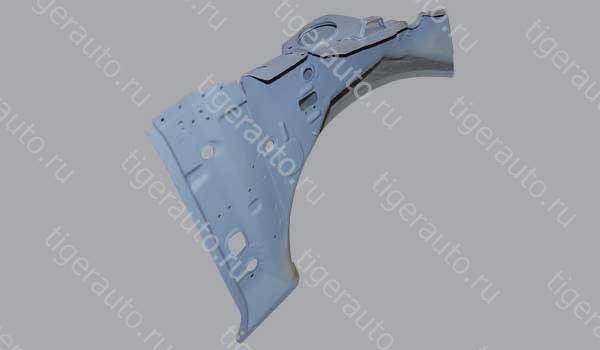

| 20 | A138403400PADY | FR WHEEL ARCH-RH |
 |
1 | |
| 21 | A138403470DY | BRACKET 2-QUARTER PANEL |
 |
1 | |
| A138403470DY | BRACKET 2-QUARTER PANEL |
|
|||
| A138403470DY | BRACKET 2-QUARTER PANEL |
|
1 | ||
| 22 | A138403480DY | OILER BRACKET |
 |
1 | |
| 23 | N0111931 | NUT |
 |
1 | |
| N0111931 | NUT |
|
1 | ||
| N0111931 | NUT |
|
1 | ||
| N0111931 | NUT |
|
1 | ||
| N0111931 | NUT |
|
2 | ||
| 24 | QR2020614 | BOLT |
 |
||
| QR2020614 | BOLT |
|
1 | ||
| QR2020614 | BOLT |
|
1 | ||
| QR2020614 | BOLT |
|
1 | ||
| QR2020614 | BOLT |
|
1 | ||
| QR2020614 | BOLT |
|
1 | ||
| QR2020614 | BOLT |
|
|||
| N90068401 | STUD |
 |
|||
| N90068401 | STUD |
|
1 | ||
| N90068401 | STUD |
|
1 | ||
| N90068401 | STUD |
|
|||
| N90068401 | STUD |
|
12 | ||
| 25 | N90169301 | STUD |
 |
33 | |

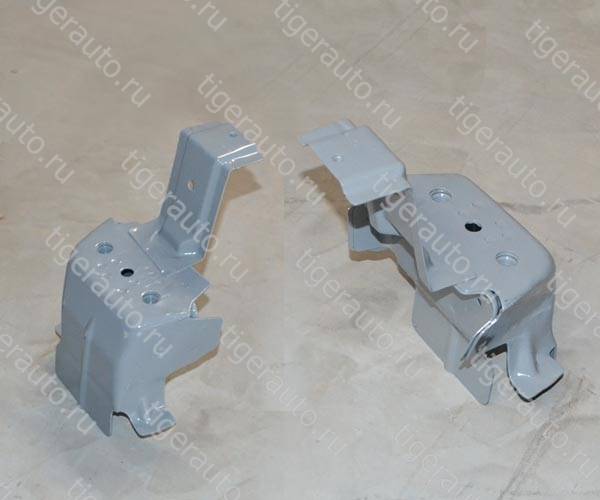

| 26 | A135100630PADY | FIXING PLATE LH-ENGINE MOUNT BEAM |
 |
||
| 27 | A135100640PADY | FIXING PLATE RH-ENGINE MOUNT BEAM |
 |
1 | |

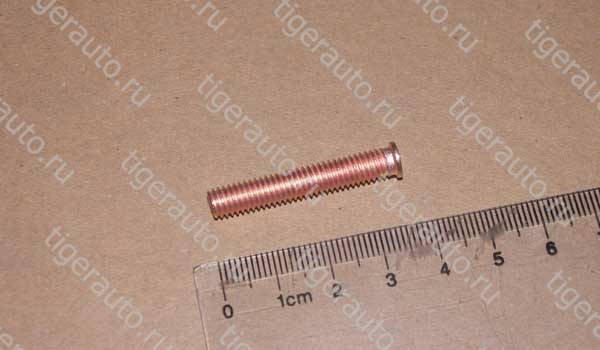

| 28 | QR2020635 | SCREW |
 |
||
| 29 | S115300104 | BOLT |
 |
1 | |
| S115300104 | BOLT |
|
1 | ||
| S115300104 | BOLT |
|
1 | ||
| S115300104 | BOLT |
|
1 | ||
| 30 | S115300108 | STUD |
 |
10 | |
| S115300108 | STUD |
|
10 | ||
| S115300108 | STUD |
|
1 | ||
| S115300108 | STUD |
|
1 | ||
| 31 | B215101890 | SCREW |
 |
1 |
