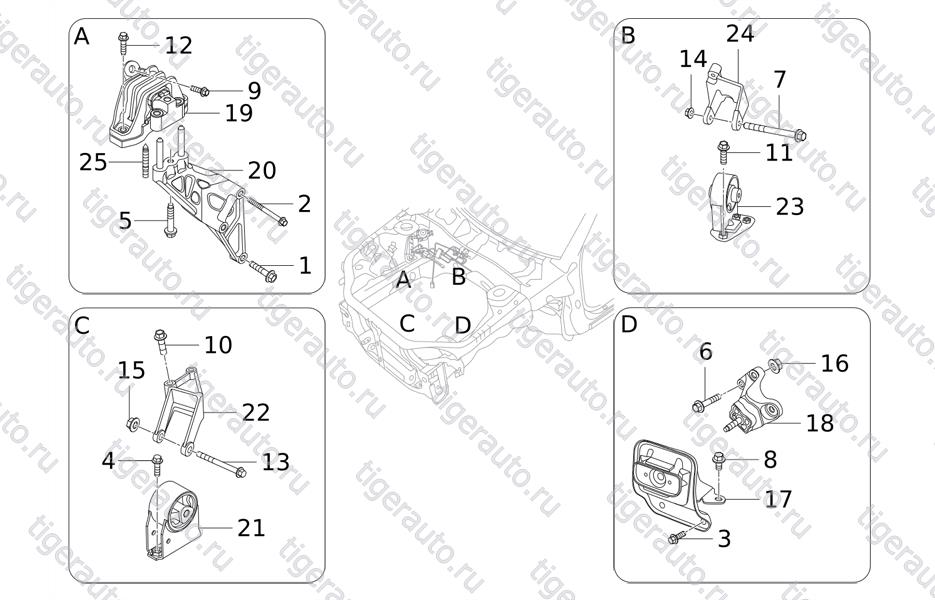

ENGINE MOUNTING SYSTEM (CA) Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | FQ184C1045TF6N | BOLT |
 |
1 | |
| Q1841045 | HEX-HEAD FLANG BOLT |
 |
1 | ||
| 2 | Q1841090 | BOLT |
 |
2 | |

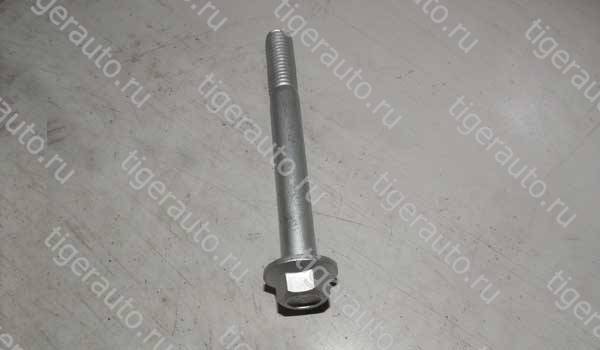

| Q1841090TF6 | HEX-HEAD FLANG BOLT |
 |
1 | ||

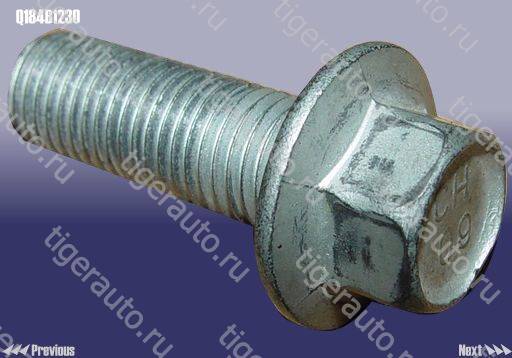

| 3 | Q184B1230 | BOLT |
 |
2 | |

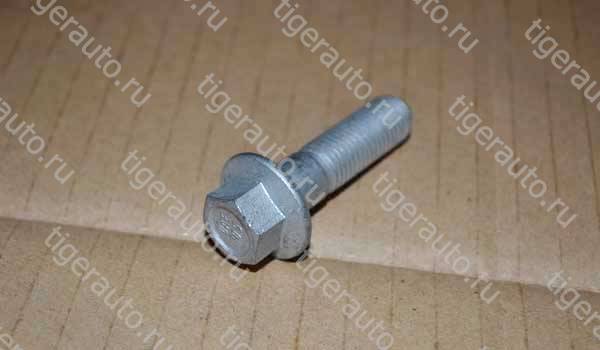

| 4 | Q184B1245 | BOLT |
 |
3 | |
| 5 | Q184B1275 | BOLT |
 |
1 | |

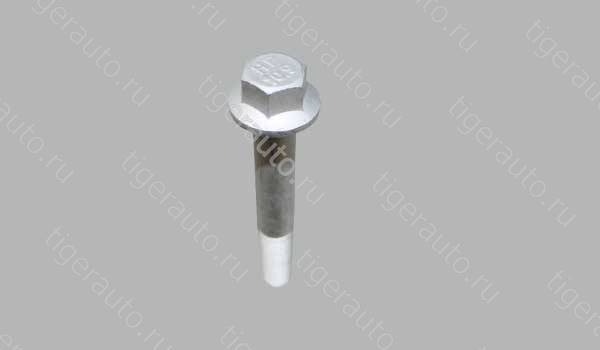

| 6 | Q184B1280 | BOLT |
 |
1 | |
| 7 | Q184B1280TF6 | BOLT |
|
1 | |
| Q184C10100 | BOLT |
 |
2 | ||
| 8 | Q184C1020 | BOLT |
 |
4 | |
| 9 | Q184C1025 | BOLT |
|
1 | |
| 10 | Q184C1030 | BOLT |
 |
2 | |
| 11 | Q184C1035TF6 | HEXAGON BOLT WITH FLANGE_M10*35 |
 |
3 | |
| 12 | Q184C1025TF6 | BOLT |
|
1 | |
| Q184C1045 | HEX FLANGE BOLT |
 |
2 | ||
| 13 | Q184C1075 | BOLT |
 |
2 | |
| 14 | Q330B12 | PREVALING TORQUE TYPE ALL METAL HEXAGON |
 |
3 | |
| 15 | Q330C10 | PREVALING TORQUE TYPE ALL METAL HEXAGON |
 |
2 | |

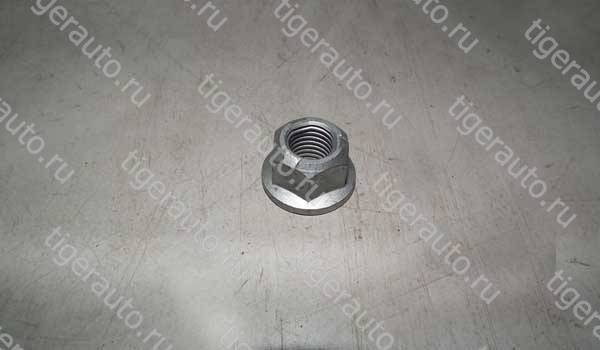

| 16 | Q330C12 | PREVALING TORQUE TYPE ALL METAL HEXAGON |
 |
2 | |
| 17 | T211001110CA | SUSPENSION CUSHION-LH |
|
1 | |
| 18 | T211001211CA | SUSPENSION BRACKET-LH |
|
1 | |
| 19 | T211001310 | SUSPENSION CUSHION-RH |
|
1 | |
| 20 | T211001411 | SUSPENSION BRACKET-RH |
|
1 | |
| 21 | T211001510 | SUSPENSION CUSHION-FR |
|
1 | |
| 22 | T211001611CA | SUSPENSION BRACKET-FR |
|
1 | |
| 23 | T211001710CA | SUSPENSION CUSHION-RR |
|
1 | |
| 24 | T211001811CA | SUSPENSION BRACKET-RR |
|
1 | |
| 25 | 019CHA1502124 | BOLT |
|
2 |
