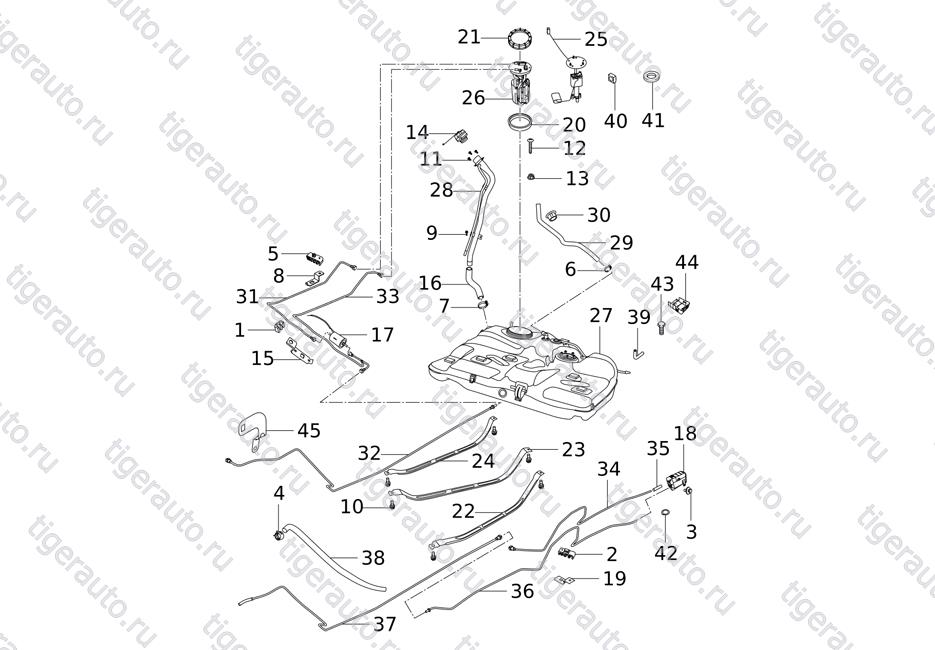

FUEL SUPPLY SYSTEM Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | A131100042 | BRACKET DUAL PIPE CLIP |
 |
4 | |

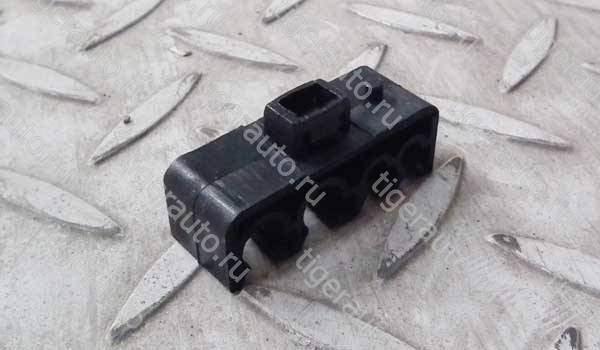

| 2 | A211100039 | CLIP |
 |
1 | |
| 3 | AQ1400615 | HEXAGON HEAD BOLT AND PLAIN WASHER ASSEM |
 |
1 | |

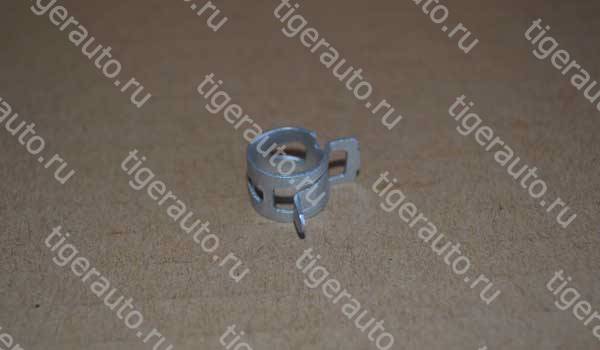

| 4 | AQ60114 | SPRING RING HOOP |
 |
8 | |

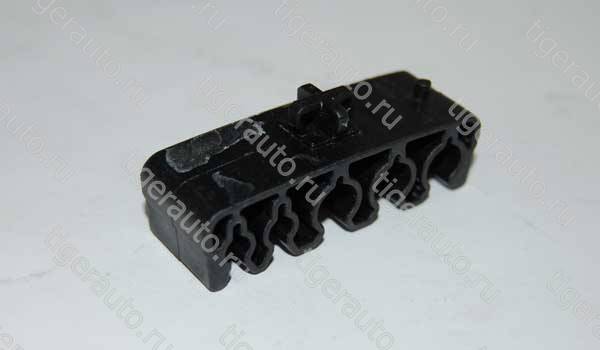

| 5 | B111100049 | Clip with five grooves |
 |
6 | |

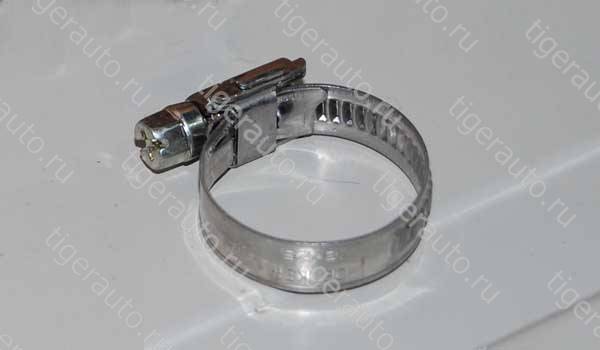

| 6 | CQ67625 | WORM HOOP 25 |
 |
2 | |

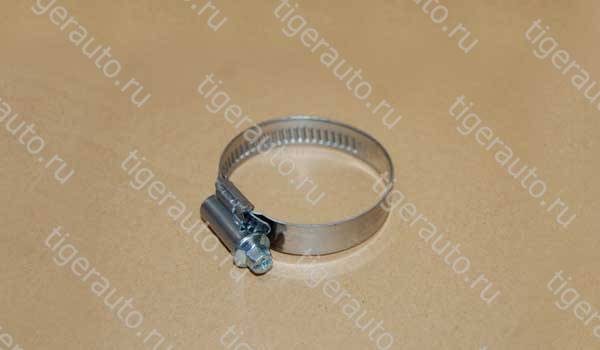

| 7 | CQ67645 | CLIP |
 |
2 | |

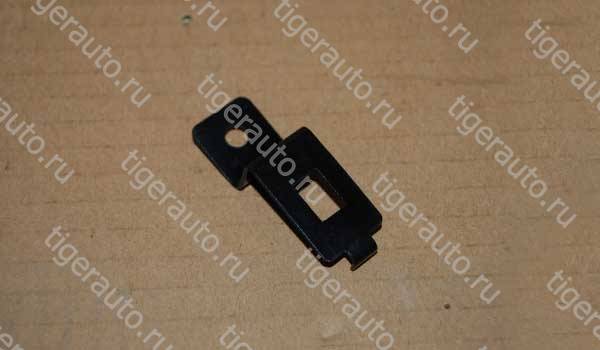

| 8 | H131100045 | BRACKET |
 |
4 | |
| 9 | Q1460825 | HEX BOLT |
 |
1 | |

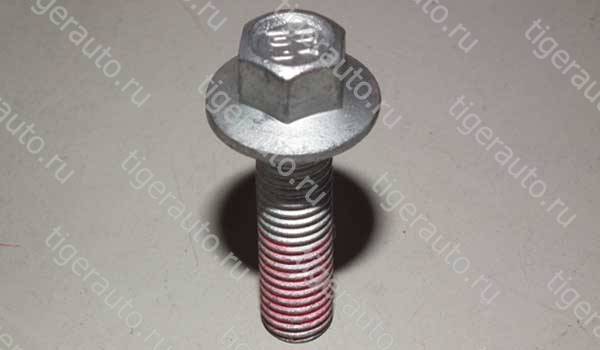

| 10 | Q1840830TF6 | BOLT |
 |
4 | |
| 11 | Q2140616 | CROSS RECESSED PAN HEAD SCREW M6X16 |
|
3 | |

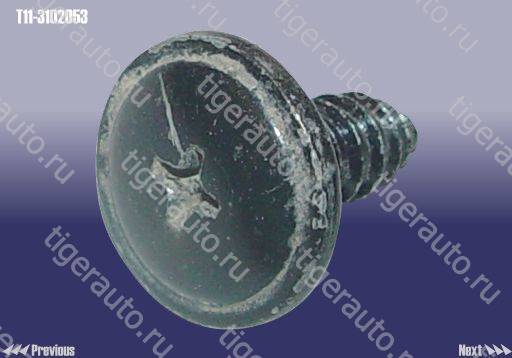

| T113102053 | SCREW |
 |
1 | ||

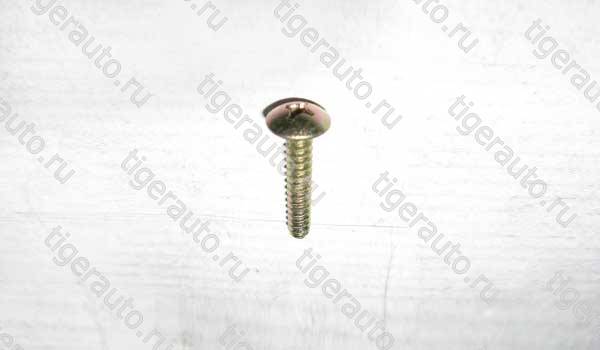

| 12 | Q2735532A | SCREW |
 |
1 | |
| 13 | Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
12 | |
| Q32206L | HEXAGON NUT AND SINGLE HEAVY COIL SPRING |
|
1 | ||

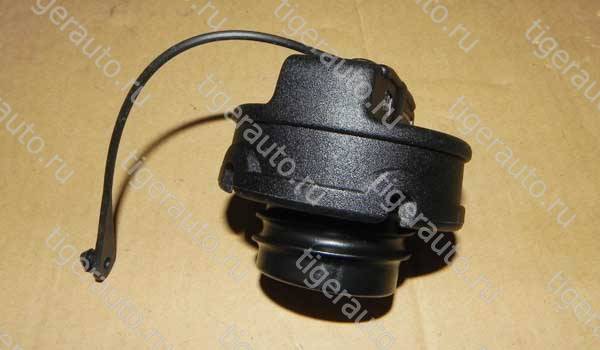

| 14 | S111103010BA | FUEL TANK CAP |
 |
1 | |

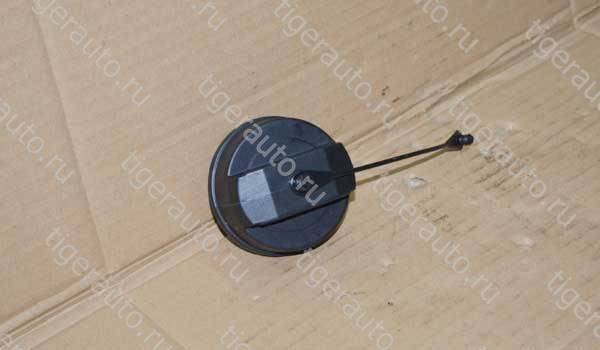

| S111103010BB | FUEL TANK CAP |
 |
1 | ||
| 15 | S161100047 | CLIP |
 |
6 | |

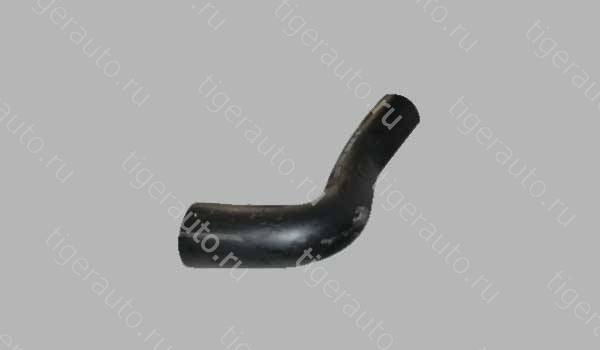

| 16 | T111101231 | HOSE-FUEL FILLING |
 |
1 | |

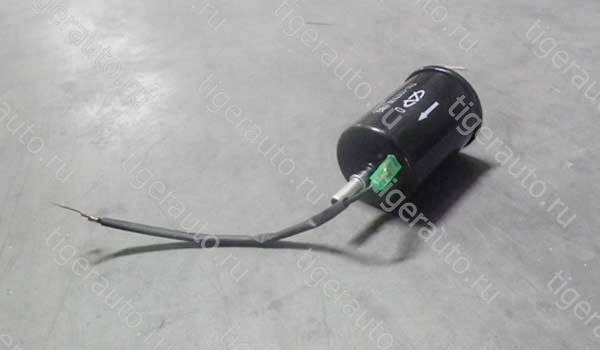

| 17 | T111117110 | FUEL FILTER |
 |
1 | |
| 18 | T111208110BA | CARBON BOX |
 |
1 | |
| 19 | T211100067 | BRACKET |
|
1 | |
| 20 | A111101151 | SEAL RING OF FUEL TANK |
 |
1 | |

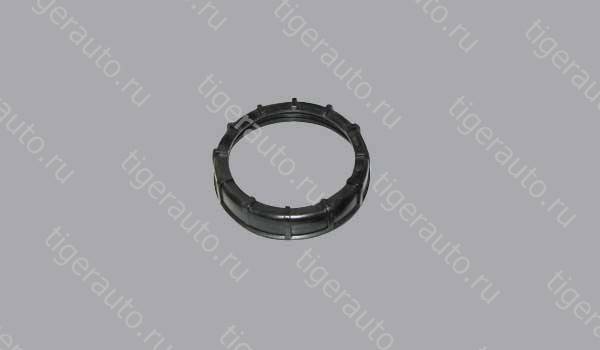

| 21 | A111101153 | FUEL TANK CAP |
 |
1 | |

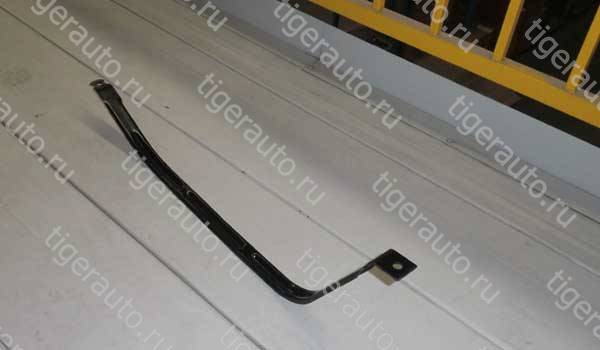

| 22 | T111100015 | FUEL TANK BAND 1 |
 |
1 | |

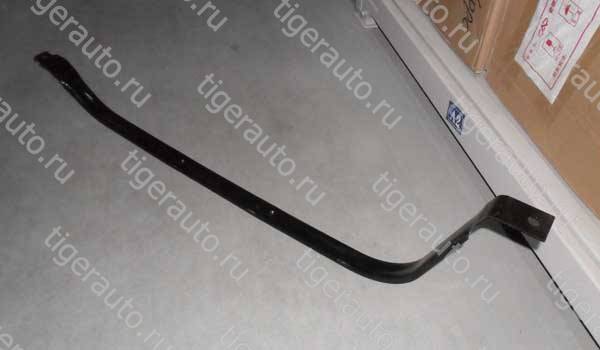

| 23 | T111100025 | FUEL TANK BAND 2 |
 |
1 | |

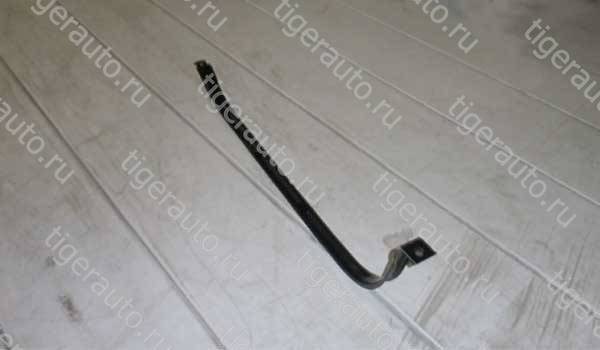

| 24 | T111100035 | FUEL TANK BAND 3 |
 |
1 | |

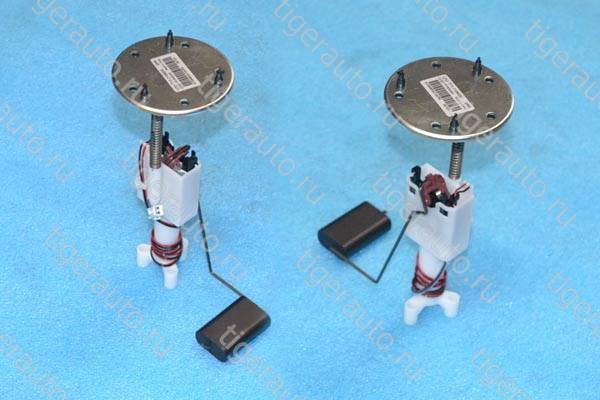

| 25 | T111106030 | FUEL POSITION SENSOR |
 |
1 | |

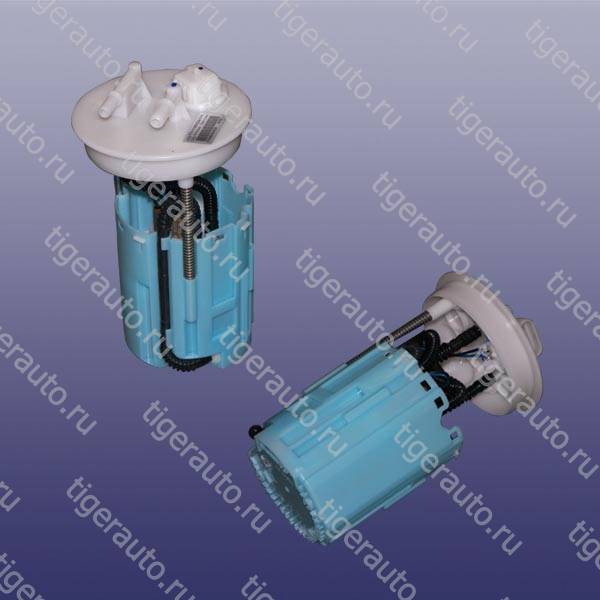

| 26 | T111106610DA | FUEL PUMP |
 |
1 | |
| 27 | T211101110 | FUEL TANK |
|
1 | |
| 28 | T211101310 | FUEL FILLING PIPE |
|
1 | |
| 29 | T211101317 | HOSE-FUEL FILLING |
|
1 | |
| 30 | T211101320 | SHAFT SLEEVE-VENT PIPE |
|
2 | |
| 31 | T211104110 | FUEL INTAKE PIPE 1 |
|
1 | |
| 32 | T211104130 | FUEL INTAKE PIPE 2 |
|
1 | |
| 33 | T211104210 | FUEL RETURN PIPE-INLET |
|
1 | |
| 34 | T211104310 | FUEL VAPOR PIPE 1 |
|
1 | |
| 35 | T211104321 | FUEL VAPOR HOSE 1 |
|
1 | |
| 36 | T211104330 | FUEL VAPOR PIPE 2 |
|
1 | |
| 37 | T211104350 | FUEL VAPOR PIPE 3 |
|
1 | |
| 38 | T211208219 | OUTLET PIPE-CARBON BOX |
|
1 | |
| 39 | T211208321 | VENT PIPE-CARBON BOX |
|
1 | |
| 40 | Q310B06 | NUT |
|
1 | |
| 41 | Q40006 | GASKET |
|
1 | |

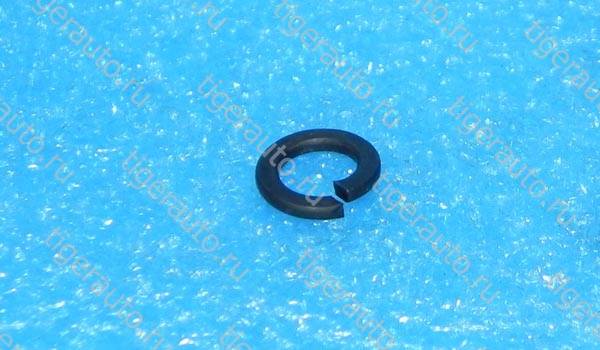

| 42 | Q40406 | WASHER |
 |
1 | |
| 43 | S111208117 | BOLT |
 |
1 | |
| 44 | T111208113 | PROTECTIVE BOX-CARBON BOX |
 |
1 | |
| 45 | T211100032 | CLIP 2 |
|
1 |
