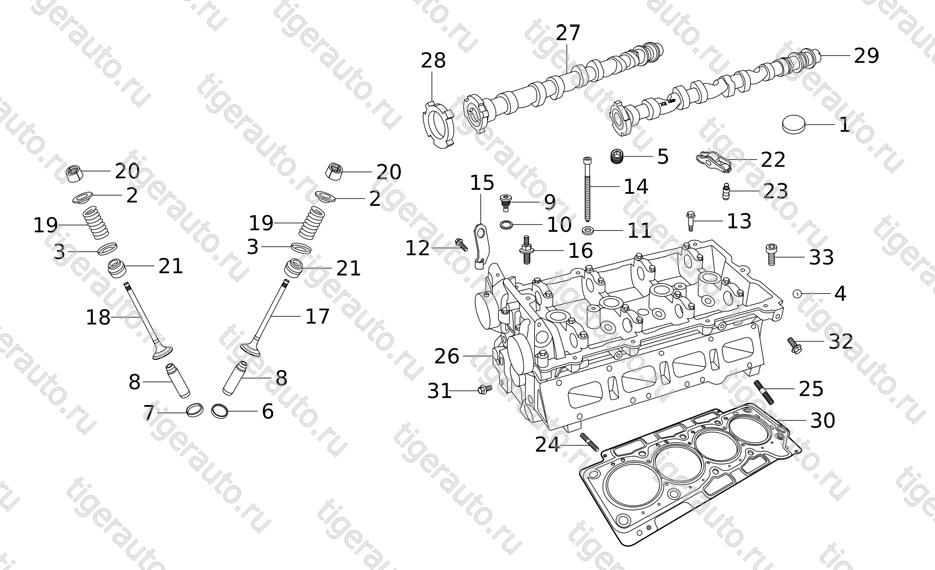

Головка блока цилиндров "E01AB" Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | 3721002024 | BOWL PLUG |
 |
1 | |
| 2 | 473H1007015 | UPR SEAT-VALVE SPRING |
|
16 | |
| 3 | 477F1007013 | LWR SEAT-VALVE SPRING |
|
16 | |
| 4 | 4801006017 | STEEL BALL |
|
2 | |
| 5 | 481F1003034 | PLUG SCREW |
 |
1 | |
| 6 | 481H1003021 | SEAT RING-INTAKE VALVE |
 |
8 | |
| 7 | 481H1003022 | SEAT RING-EXHAUST VALVE |
 |
8 | |
| 8 | 481H1003023 | GUIDE PIPE-AIR VALVE |
 |
16 | |
| 9 | 481H1003031 | CAMSHAFT BOLT |
 |
2 | |
| 10 | 481H1003032 | WASHER |
 |
2 | |
| 11 | 481H1003033 | GASKET-CYLINDER HEAD BOLT |
 |
10 | |
| 12 | 481H1003062 | HEX FLANGE BOLT |
 |
2 | |
| 13 | 481H1003063 | CAMSHAFT BOLT |
 |
18 | |
| 14 | 481H1003082 | BOLT-CYLINDER HEAD |
 |
10 | |
| 15 | 481H1003086 | LIFTING LUG |
 |
2 | |
| 16 | 481H1003087 | STUD |
 |
1 | |
| 17 | 481H1007011CA | INTAKE VALVE |
 |
8 | |
| 18 | 481H1007012CA | EXHAUST VALVE |
 |
8 | |
| 19 | 481H1007014BA | VALVE SPRING |
 |
16 | |
| 20 | 481H1007018 | VALVE LOCK BLOCK |
 |
32 | |
| 21 | 481H1007020 | OIL SEAL-AIR VALVE |
 |
16 | |
| 22 | 481H1007030AB | ROCKER |
|
16 | |
| 23 | 481H1007040AB | TAPPET |
|
16 | |
| 24 | 481H1008032 | STUD |
 |
9 | |
| 25 | 481H1008112 | STUD |
 |
8 | |
| 26 | 484H1003010BB | CYLINDER HEAD BODY |
 |
1 | |
| 27 | 484H1006010 | INTAKE CAMSHAFT |
 |
1 | |
| 28 | 481H1006019 | SIGNAL WHEEL-CAMSHAFT POSITION |
 |
2 | |
| 481H1006019 | SIGNAL WHEEL-CAMSHAFT POSITION |
|
1 | ||
| 29 | 484H1006030BA | EXHAUST CAMSHAFT |
 |
1 | |
| 30 | 484J1003080BA | GASKET-CYLINDER HEAD |
 |
1 | |
| 31 | FQ1840515F32E | HEX FLANGE BOLT |
 |
2 | |
| 32 | Q1840820 | HEXAGON BOLT WITH FLANGE M8X20 |
|
1 | |
| 33 | Q218B0616 | BOLT |
 |
1 |
