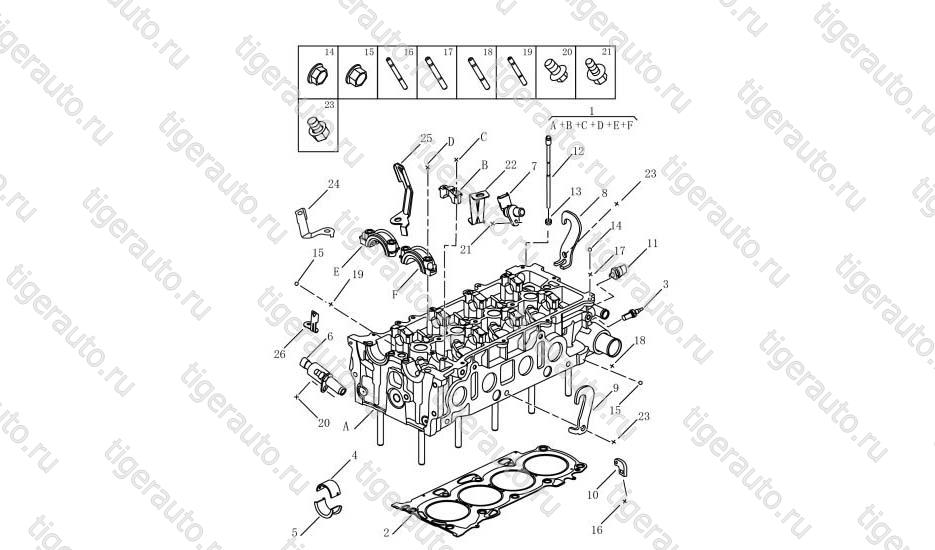

Головка блока цилиндров [JLD-4G20-A45\A017] Geely Atlas (NL-3)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | 1016052493 | CYLINDER COVER ASSY |
 |
1 | (4G20) |
| 1016050942 | CYLINDER HEAD GASKET |
|
1 | ||
| 1025000500 | WATER TEMPERTURE SENSOR 479Q |
 |
1 | ||
| 1025001900 | OCV |
 |
1 | REPLACED BY 1016050711512010 (SUPPLIER 512010); 1016050711576290 (SUPPLIER 576290) | |
| 1016052958 | PHASE SENSOR |
|
1 | (4G20/UAES) | |
| 1025006600 | REAR HOOK ENGINE |
|
1 | ||
| 1025006500 | FRONT HOOK ENGINE |
|
1 | ||
| 1016050464 | CLIP HARNESS 1 |
|
2 | ||
| 1025006900 | OIL PRESSURE SENSOR |
|
1 | (EC8) | |
| 1025006700 | CYLINDER HEADBOLT |
|
10 | ||
| 1025006800 | CYLINDER HEAD BOLT WASHER |
|
10 | ||
| JQ32006 | HEXAGON FLANGE NUT |
|
4 | ||
| JQ32008 | HEXAGON FLANGE NUT |
|
5 | ||
| JQ1260624 | DUAL HEAD BOLT M6 |
|
2 | ||
| JQ1260635 | DUAL HEAD BOLT |
|
2 | ||
| JQ1260824 | STUD BOLT |
|
5 | ||
| JQ1260835 | DUAL HEAD BOLT |
|
2 | ||
| Q1840510 | HEXAGON FLANGE BOLT |
|
1 | ||
| JQ1840614KB | HEXAGON FLANGE BOLT |
|
1 | ||
| 7010004700 | BRACKET |
|
2 | ||
| JQ140C1020K2 | HEXAGON HEAD BOLT & PLAIN WASHER ASSY. |
|
2 | ||
| 1025010600 | 2 POWER WIRE HARNESS |
|
1 | ||
| 1025012600 | 2 WIRE HARNESS BRACKET |
|
1 | ||
| 1025012700 | WIRE HARNESS BRACKET |
|
1 |
