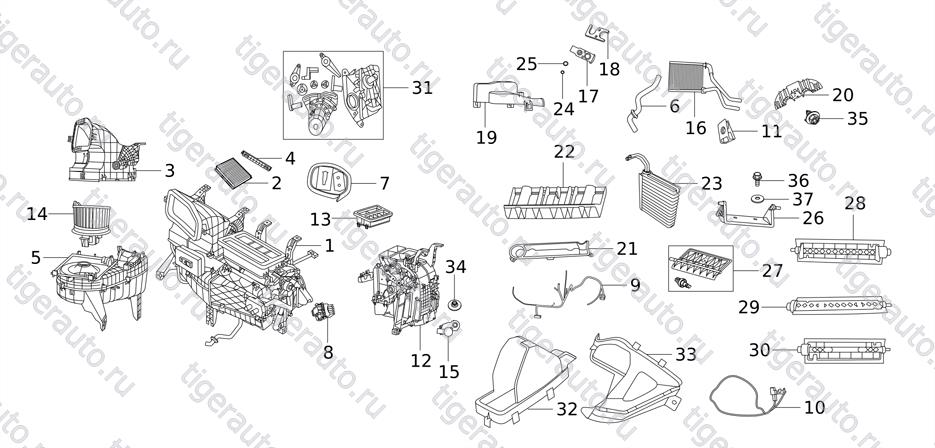

HVAC ASSY Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | T218107010 | HVAC |
 |
1 | |
| 2 | T218107011 | AIR FILTER |
|
1 | |
| 3 | T218107015 | AIR INLET HOUSING |
|
1 | |
| 4 | T218107016 | COVER-AIR FILTER |
|
1 | |
| 5 | T218107017 | BLOWER HOUSING |
|
1 | |
| 6 | T218107025 | DRAIN PIPE-EVAPOTATOR |
|
1 | |
| 7 | T218107029 | SEAL SPONGE STRIP |
|
1 | |
| 8 | T218107031 | RESISTOR |
|
1 | |
| 9 | T218107037 | WIRING HARNESS-A\C |
|
1 | |
| 10 | T218107041 | TEMPERATURE SENSOR, CLIP-EVAPORATOR |
|
1 | |
| 11 | T218107043 | NUT |
|
1 | |
| 12 | T218107070 | DISPATCHER HOUSING |
|
1 | |
| 13 | T218107080 | AIR DUCT |
|
1 | |
| 14 | T218107110 | HEATER MOTOR |
|
1 | |
| 15 | T218107115 | CIRCULATION MOTOR |
|
1 | |
| 16 | T218107130 | HEATER CORE |
|
1 | |
| 17 | T218107170 | EXPANSION VALVE |
|
1 | |
| 18 | T218107172 | FIXING PANEL-EXPANSION VALVE |
|
1 | |
| 19 | T218107173 | COVER-EXPANSION VALVE |
|
1 | |
| 20 | T218107175 | WATER PIPE COVER-HEATER |
|
1 | |
| 21 | T218107177 | HEATER COVER |
|
1 | |
| 22 | T218107179 | GUIDE PANEL |
|
1 | |
| 23 | T218107350 | EVAPORATOR CORE |
|
1 | |
| 24 | T218107351 | O RING 1-EXPANSION VALVE |
|
1 | |
| 25 | T218107352 | O RING 2-EXPANSION VALVE |
|
1 | |
| 26 | T218107711 | AIR VALVE-INR, OTR CIRCULATION |
|
1 | |
| 27 | T218107713 | AIR VALVE-TEMPERATURE CONTROL |
|
1 | |
| 28 | T218107715 | AIR VALVE-FACE BLOW |
|
1 | |
| 29 | T218107717 | AIR VALVE-DEFROSTING |
|
1 | |
| 30 | T218107719 | AIR VALVE-FOOT BLOW |
|
1 | |
| 31 | T218107750 | AIRFLOW CONTROL MECHANISM |
|
1 | |
| 32 | T218107860 | FOOT BLOW GUARD-LH |
|
1 | |
| 33 | T218107865 | FOOT BLOW GUARD-RH |
|
1 | |

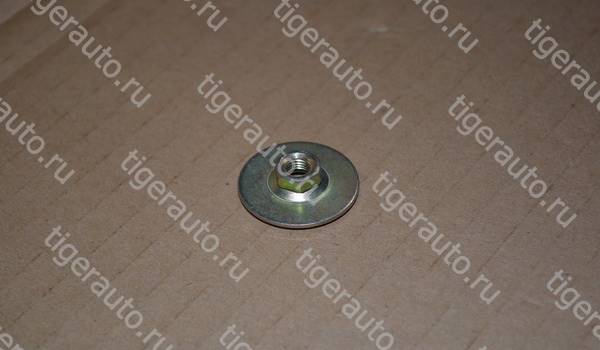

| 34 | A118107013 | NUT-EVAPORATOR |
 |
4 | |

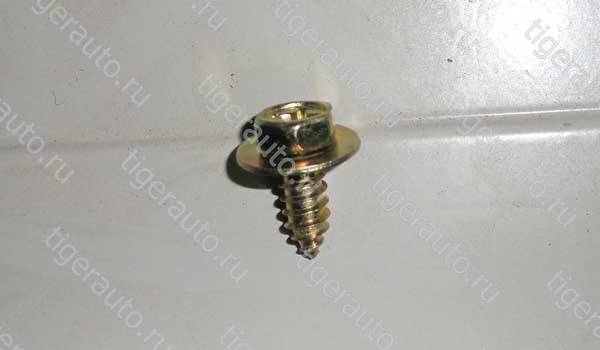

| 35 | AQ2756316 | SCREW |
 |
2 | |
| 36 | Q1860616 | HEAVY SERIES HEXAGON BOLT WITH FLANGE M6 |
|
2 | |
| 37 | Q40208 | WASHER |
|
2 |
