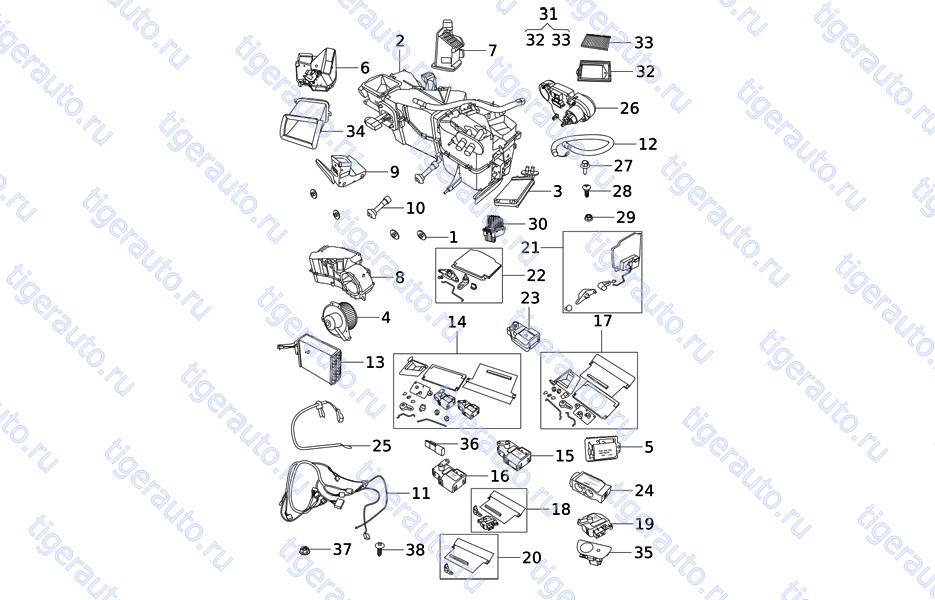

HVAC SYSTEM Chery Very (A13A)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | A118107013 | NUT-EVAPORATOR |
 |
4 | |
| A118107013 | NUT-EVAPORATOR |
|
1 | ||
| 2 | A138107010 | HVAC |
 |
1 | |

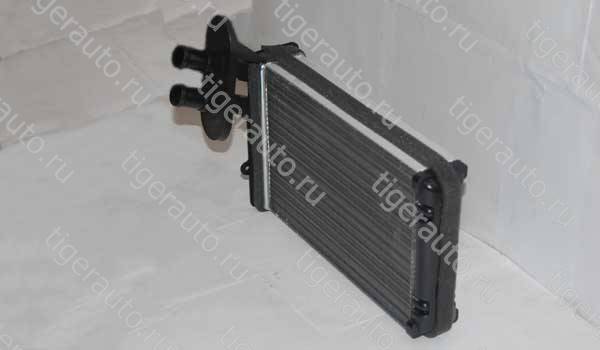

| 3 | A118107023 | RADIATOR CORE |
 |
1 | |
| 4 | A118107027AB | BLOWER |
 |
1 | |
| 5 | A118107031 | A\C RESISTOR |
 |
1 | |
| 6 | A138107013 | AIR OUTLET HOUSING |
 |
1 | |
| 7 | A138107015 | AIR INLET HOUSING |
 |
1 | |

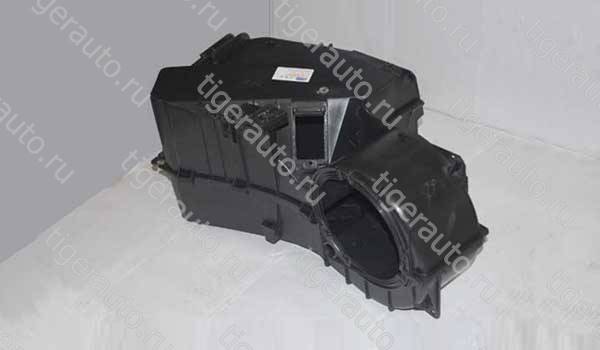

| 8 | A138107017 | EVAPORATOR HOUSING |
 |
1 | |
| 9 | A138107021 | FOOT BLOW GUARD |
 |
1 | |

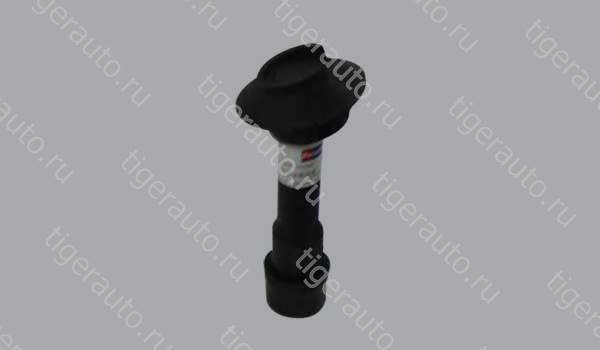

| 10 | A138107025 | DRAIN PIPE |
 |
1 | |
| A118107025 | OUTLET WATER HOSE |
 |
1 | ||

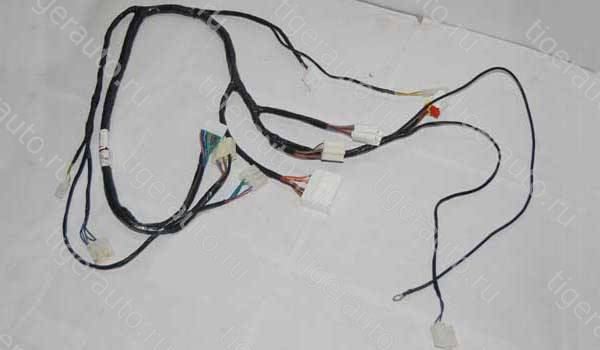

| 11 | A138107037 | WIRING HARNESS-A\C |
 |
1 | |

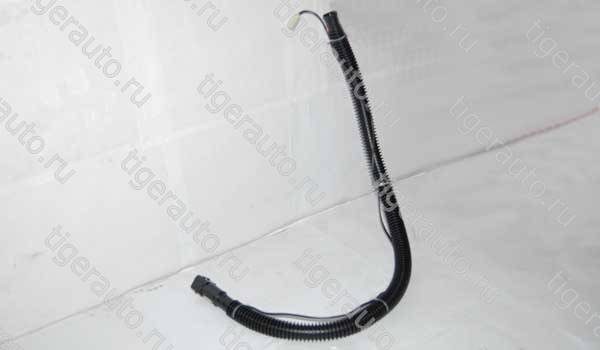

| 12 | A138107043 | SENSOR-INDOOR TEMPERATURE |
 |
1 | |
| 13 | A138107150 | EVAPORATOR CORE |
 |
1 | |

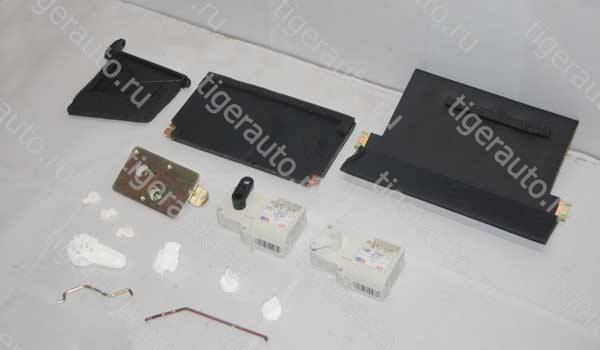

| 14 | A138107310 | AIRFLOW CONTROL MECHANISM |
 |
1 | |
| 15 | A139EC8107063 | MOTOR-AIR VALVE |
 |
1 | |
| 16 | A139EC8107065 | DEFROSTING MOTOR |
 |
1 | |

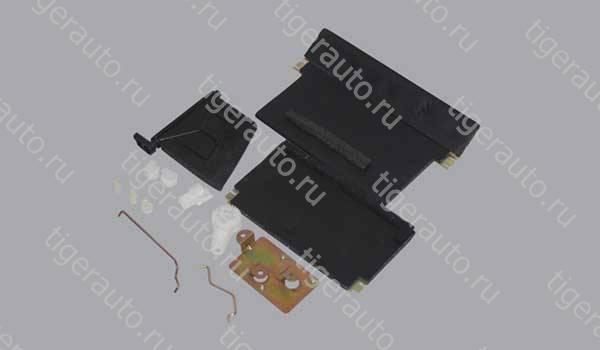

| 17 | A139EC8107310 | AIRFLOW CONTROL MECHANISM |
 |
1 | |
| 18 | A138107510 | TEMPERATURE CONTROL MECHANISM |
 |
1 | |

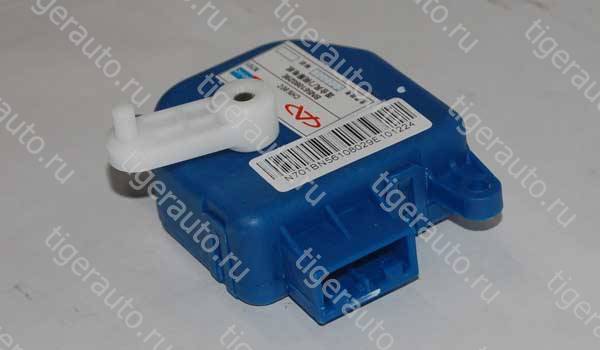

| 19 | A139EC8107061 | SERVO MOTOR-MIX AIR VALVE |
 |
1 | |
| 20 | A139EC8107510 | TEMPERATURE CONTROL MECHANISM |
 |
1 | |

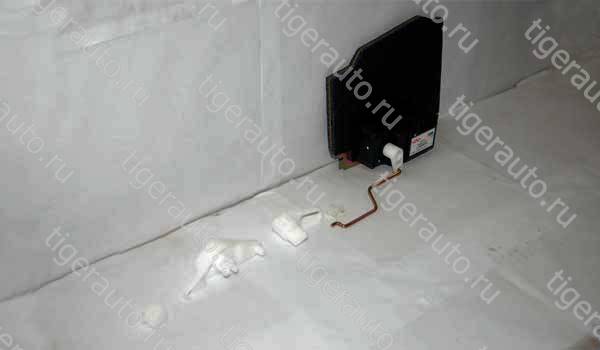

| 21 | A138107710 | CIRCULATION CONTROL MECHANISM |
 |
1 | |
| 22 | A139EC8107710 | CIRCULATION CONTROL MECHANISM |
 |
||
| 23 | A139EC8107715 | CIRCULATION MOTOR |
 |
||
| 24 | B218107170 | EXPANSION VALVE |
 |
1 | |
| 25 | S118107041 | THERMOSTAT SWITCH |
 |
1 | |

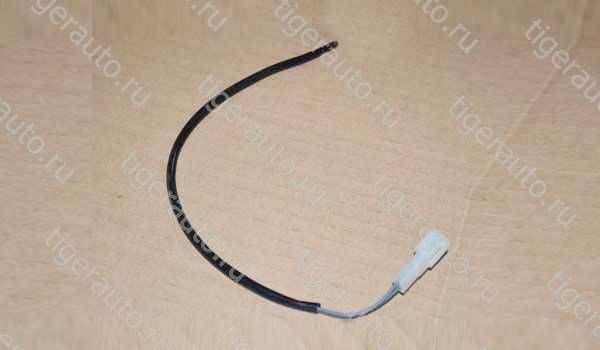

| S119EC8107041 | THERMOSTAT SWITCH |
 |
1 | ||

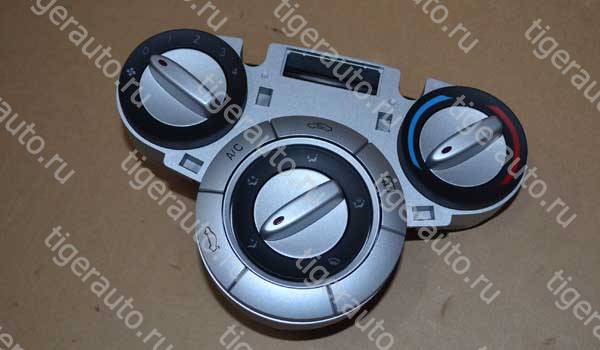

| 26 | A138112010 | CONTROL PANEL-A\C |
 |
1 | |
| A138112010 | CONTROL PANEL-A\C |
|
1 | ||

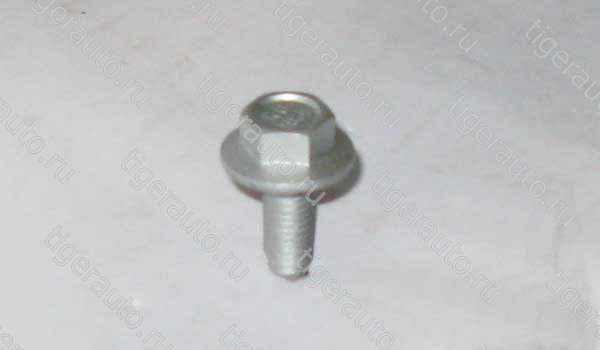

| 27 | N90267201 | BOLT |
 |
1 | |
| 28 | Q2734816 | TAPPING SCREW |
 |
2 | |
| 29 | Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
1 | |

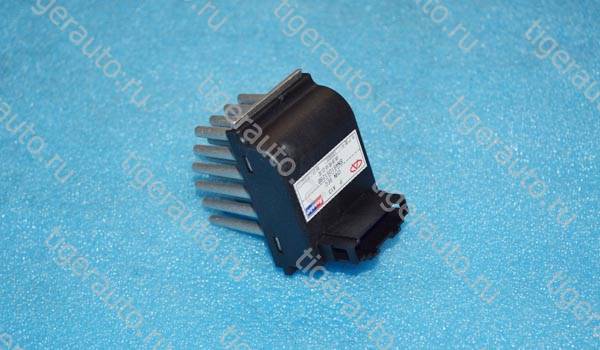

| 30 | A138107031 | RESISTOR |
 |
1 | |
| 31 | A138107910 | AIR INLET FILTER |
 |
1 | |
| 32 | A138107913 | BRACKET-AIR INLET FILTER |
 |
1 | |
| 33 | A138107915 | CORE-AIR INLET FILTER |
 |
1 | |
| 34 | A138107920 | AIR INLET DUCT |
 |
1 | |
| 35 | A138112070BA | SUNLIGHT SENSOR |
 |
1 | |
| 36 | B118112050 | SENSOR-OUTDOOR TEMPERATURE |
 |
1 | |
| 37 | N0150822 | NUT |
 |
2 | |
| 38 | Q2734216 | CROSS RECESSED TAPPING SCREW ST4.2X16 |
|
2 |
