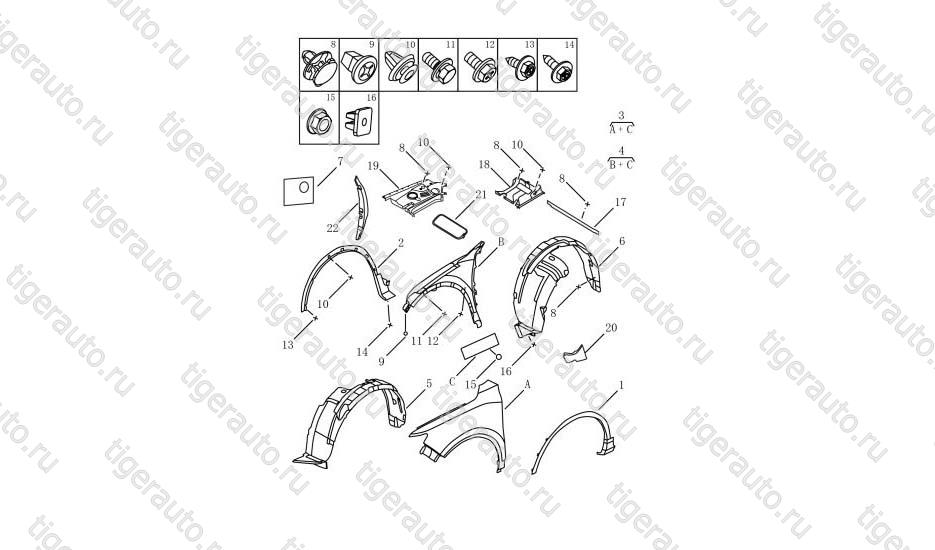

1 |
5035005700661 |
TRIM BOARD, LF FENDER |
 |
1 |
|
|
2 |
5035005600661 |
TRIM BOARD, RF FENDER |
|
1 |
|
|
3 |
5035005500C15 |
ASSY, LEFT FENDER |
|
1 |
|
|
3 |
5035038900C15 |
ASSY, LEFT FENDER |
|
1 |
|
|
4 |
5035005400C15 |
ASSY, RIGHT FENDER |
|
1 |
|
|
4 |
5035038800C15 |
ASSY, RIGHT FENDER |
|
1 |
|
|
5 |
5035007700 |
SUB-ASSY, LF FENDER REAR PANEL |
|
1 |
|
|
6 |
5035007800 |
SUB-ASSY, RF FENDER REAR PANEL |
|
1 |
|
|
7 |
5035005100 |
DAMPING PLATE, FRONT WHEEL COVER |
|
2 |
|
|
8 |
JQ693E84 |
G TYPE CLIP |
|
32 |
|
|
9 |
JQ399A85 |
SEAL SETTING-IN PLASTIC NUT |
|
2 |
|
|
9 |
5035037600 |
SEAL SETTING-IN PLASTIC NUT |
|
2 |
|
|
10 |
JQ690E82 |
DTYPE CLIP |
|
20 |
|
|
11 |
JQ146DA0616 |
CROSS SLOT PAN HEAD TAPPING SCREW & PAIN |
|
16 |
|
|
12 |
JQ147DA0614F31 |
CROSS SLOTTED HEXAGON HEAD BOLT & BIG PL |
|
2 |
|
|
13 |
JQ222DA4816F31 |
CROSS SLOTTED HEX SEREW & PLAIN WASHER |
|
2 |
|
|
14 |
JQ222DA4819F31 |
CROSS RECESS HEXAGON HEAD TAPPING SCREW |
|
12 |
|
|
15 |
JQ32006 |
HEXAGON FLANGE NUT |
|
2 |
|
|
16 |
JQ398A8886 |
PYLOME SETTINGSIN PLASTIC NUT |
|
8 |
|
|
17 |
6070005000661 |
CONNECTING PLATE, UPPER TRIM PLATE, LEFT F |
|
1 |
|
|
18 |
6070004900661 |
UPPER TRIM, LEFT FENDER |
|
1 |
|
|
19 |
6070004800661 |
UPPER TRIM, RIGHT FENDER |
|
1 |
|
|
20 |
6070004600661 |
SUPPORT PLATE, UPPER TRIM, LEFT FENDER |
|
1 |
|
|
20 |
6070004500661 |
SUPPORT PLATE, UPPER TRIM, RIGHT FENDER |
|
1 |
|
|
21 |
6070004400661 |
BATTERY REPAIR HOLE CAP |
|
1 |
|
|
22 |
6070003900 |
BAFFLE PLATE, LF FENDER |
|
1 |
|
|
22 |
6070003600 |
BAFFLE PLATE, RF FENDER |
|
1 |
|
