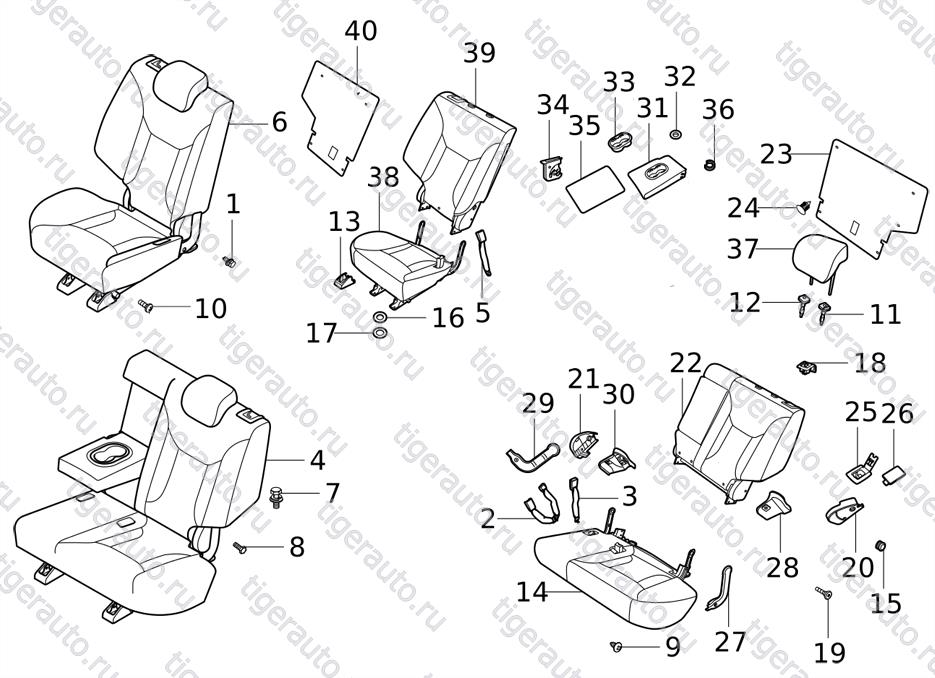

MD&RR SEAT Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | Q146C1028F30 | BOLT |
 |
8 | |
| 2 | T215812030BA | SAFETY BELT BUCKLE-RR ROW |
 |
1 | |
| 3 | T215812040BA | SAFETY BELT BUCKLE-RR ROW |
|
1 | |
| 4 | T217000010BD | RR SEAT-LH |
|
1 | |
| 5 | T215812050BA | SAFETY BELT BUCKLE-RR ROW |
|
1 | |
| 6 | T217000020BD | RR SEAT-RH |
|
1 | |
| 7 | Q146C1030 | BOLT |
 |
1 | |
| Q146C1030 | BOLT |
|
1 | ||
| 8 | Q150B0512 | BOLT |
|
1 | |
| 9 | Q2724895 | SCREW |
|
1 | |
| Q2724895 | SCREW |
|
1 | ||
| 10 | T216804022 | SCREW |
|
||
| T216804022 | SCREW |
|
|||
| 11 | T216808013BC | HEADREST SLIDE TUBE |
|
||
| T216808013BC | HEADREST SLIDE TUBE |
|
|||
| 12 | T216808015BC | HEADREST SLIDE TUBE |
|
||
| T216808015BC | HEADREST SLIDE TUBE |
|
|||
| 13 | T217000011 | FOOT COVER-RR SEAT |
|
1 | |
| T217000011 | FOOT COVER-RR SEAT |
|
1 | ||
| 14 | T217002017BD | SUB CUSHION-RR SEAT LH |
|
||
| 15 | T217002020 | PLUG |
|
||
| T217002020 | PLUG |
|
|||
| 16 | T217002021 | NYLON SLEEVE |
|
||
| T217002021 | NYLON SLEEVE |
|
|||
| 17 | T217002022 | NYLON GASKET |
|
||
| T217002022 | NYLON GASKET |
|
|||
| 18 | T217004010BC | UNLOCKING MECHANISM-BACKREST |
|
||
| T217004010BC | UNLOCKING MECHANISM-BACKREST |
|
|||
| 19 | T217004011 | BOLT |
|
1 | |
| T217004011 | BOLT |
|
1 | ||
| 20 | T217004013BC | OTR TRIM COVER-RR FOLDING MECHANISM LH |
|
||
| T217004013BC | OTR TRIM COVER-RR FOLDING MECHANISM LH |
|
|||
| 21 | T217004015BC | CONNECTING COVER-RR BACKREST RH |
|
||
| T217004015BC | CONNECTING COVER-RR BACKREST RH |
|
|||
| 22 | T217005011BD | SUB BACKREST-RR SEAT LH |
|
||
| 23 | T217005013 | BACK PANEL-RR SEAT LH |
|
||
| 24 | T217005015 | FIXING SCREW |
|
||
| T217005015 | FIXING SCREW |
|
|||
| 25 | T217005017 | TRIM COVER-CHILD SEAT |
|
||
| T217005017 | TRIM COVER-CHILD SEAT |
|
|||
| 26 | T217005019BC | COVER PLATE |
|
1 | |
| T217005019BC | COVER PLATE |
|
1 | ||
| 27 | T217005021BC | CONNECTING COVER-RR BACKREST LH |
|
||
| T217005021BC | CONNECTING COVER-RR BACKREST LH |
|
|||
| 28 | T217005023BC | INR RECLINER COVER LH-RR SEAT |
|
||
| T217005023BC | INR RECLINER COVER LH-RR SEAT |
|
|||
| 29 | T217005025BC | CONNECTING COVER-RR BACKREST RH |
|
||
| T217005025BC | CONNECTING COVER-RR BACKREST RH |
|
|||
| 30 | T217005027BC | INR RECLINER COVER RH-RR SEAT |
|
||
| T217005027BC | INR RECLINER COVER RH-RR SEAT |
|
|||
| 31 | T217006010BD | GRAB HANDLE-RR SEAT |
|
||
| 32 | T217006012 | ARMREST WASHER |
|
||
| 33 | T217006013BC | DRINK HOLDER |
|
||
| 34 | T217006014 | RH COVER-ARMREST |
|
||
| 35 | T217006015 | RETAINING FLAKE-ARMREST |
|
||
| 36 | T217006018 | SLEEVE-MD ARMREST |
|
||
| 37 | T217008011BD | HEADREST-RR ROW SEAT |
|
||
| T217008011BD | HEADREST-RR ROW SEAT |
|
|||
| 38 | T217002018BD | SUB CUSHION-RR SEAT RH |
|
||
| 39 | T217005012BD | SUB BACKREST-RR SEAT RH |
|
||
| 40 | T217005014 | BACK PANEL-RR SEAT RH |
|
