RR BRAKE SYSTEM (BA) Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | P113502031 | BOLT-RR BRAKE CALIPER |
 |
2 | |
| P113502031 | BOLT-RR BRAKE CALIPER |
|
2 | ||
| 2 | Q2540616 | CROSS RECESSED COUNTERSUNK HEAD SCREW M6 |
 |
1 | |
| Q2540616 | CROSS RECESSED COUNTERSUNK HEAD SCREW M6 |
|
1 | ||
| FQ2540616F32 | SCREW |
 |
1 | ||
| FQ2540616F32 | SCREW |
|
1 | ||
| 3 | Q320C10 | NUT |
 |
4 | |
| Q320C10 | NUT |
|
4 | ||
| 4 | T213301210 | RR HUB BEARING |
|
1 | |
| T213301210 | RR HUB BEARING |
|
1 | ||
| 5 | T213502010 | RR BRAKE-LH |
|
1 | |
| 6 | M113502009 | SPRING SEAT |
 |
1 | |
| M113502009 | SPRING SEAT |
|
1 | ||

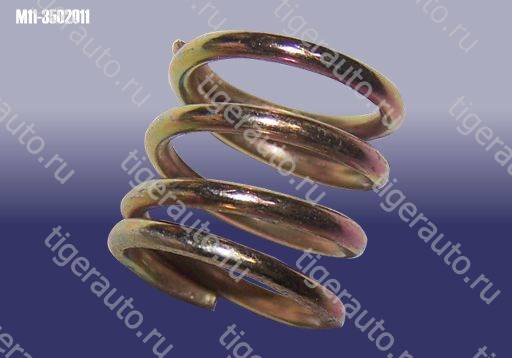

| 7 | M113502011 | BRAKE SHOE SPRING |
 |
1 | |
| M113502011 | BRAKE SHOE SPRING |
|
1 | ||
| 8 | M113502026 | LWR SPRING |
 |
1 | |
| M113502026 | LWR SPRING |
|
1 | ||

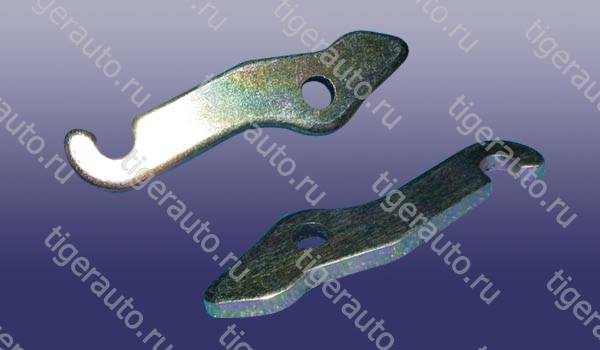

| 9 | M113502211 | HAND BRAKE ARM |
 |
1 | |
| M113502211 | HAND BRAKE ARM |
|
1 | ||
| 10 | M113502410 | GAP REGULATING MECHANISM-LH |
 |
1 | |
| M113502410 | GAP REGULATING MECHANISM-LH |
|
1 | ||

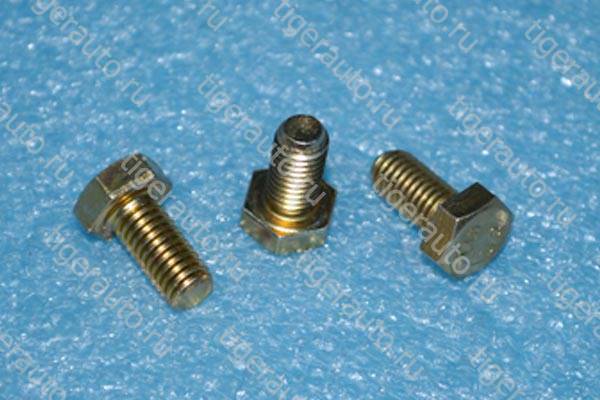

| 11 | Q150B816 | HEX-HEAD BOLT |
 |
1 | |
| Q150B816 | HEX-HEAD BOLT |
|
1 | ||

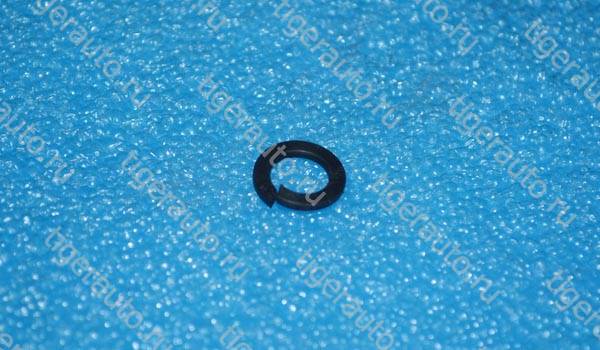

| 12 | Q40408 | GASKET |
 |
1 | |
| Q40408 | GASKET |
|
1 | ||
| 13 | T213502013 | SPRING ROD |
|
1 | |
| T213502013 | SPRING ROD |
|
1 | ||
| 14 | T213502025 | UPR SPRING-LH |
|
1 | |
| T213502025 | UPR SPRING-LH |
|
1 | ||
| 15 | T213502077 | BRAKE BOTTOM PLATE-LH |
|
1 | |
| 16 | T213502210 | RR BRAKE SHOE |
|
1 | |
| T213502210 | RR BRAKE SHOE |
|
1 | ||
| 17 | T213502212 | DUST CAP-PARKING BRAKE ARM |
|
1 | |
| T213502212 | DUST CAP-PARKING BRAKE ARM |
|
1 | ||
| 18 | T213502213 | OIL BRACKET-LH |
|
1 | |
| 19 | T213502215 | LH CABLE BRACKET |
|
1 | |
| 20 | T213502217 | PARKING PUSH ROD-LH |
|
1 | |
| 21 | T213502050 | RR BRAKE CALIPER-LH |
|
1 | |
| 22 | T213502054 | SPRING |
|
1 | |
| T213502054 | SPRING |
|
1 | ||
| 23 | T213501058 | SCREW |
|
1 | |
| T213501058 | SCREW |
|
1 | ||
| 24 | T213501059 | SCREW CAP |
|
1 | |
| T213501059 | SCREW CAP |
|
1 | ||
| 25 | T213501068 | BOLT-GUIDE PIN |
|
1 | |
| T213501068 | BOLT-GUIDE PIN |
|
1 | ||
| 26 | T213502080 | RR BRAKE PAD |
|
1 | |
| T213502080 | RR BRAKE PAD |
|
1 | ||
| 27 | T213502070 | CONNECTING PLATE |
|
1 | |
| T213502070 | CONNECTING PLATE |
|
1 | ||
| 28 | T213502075 | RR BRAKE DISC |
|
1 | |
| T213502075 | RR BRAKE DISC |
|
1 | ||
| 29 | T213502020 | RR BRAKE-RH |
|
1 | |
| 30 | T213502028 | UPR SPRING RH |
|
1 | |
| 31 | T213502078 | BRAKE BOTTOM PLATE-RH |
|
1 | |
| 32 | T213502214 | OIL BRACKET-RH |
|
1 | |
| 33 | T213502216 | RH CABLE BRACKET |
|
1 | |
| 34 | T213502218 | PARKING PUSH ROD-RH |
|
1 | |
| 35 | T213502060 | RR BRAKE CALIPER-RH |
|
1 | |
| 36 | T113502056 | BRAKE WASHER |
|
1 | |
| T113502056 | BRAKE WASHER |
|
1 | ||
| 37 | T21XLB6GN3501067 | REPAIR KIT-GUIDE PIN |
|
1 | |
| T21XLB6GN3501067 | REPAIR KIT-GUIDE PIN |
|
1 |
