STEERING SYSTEM Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|

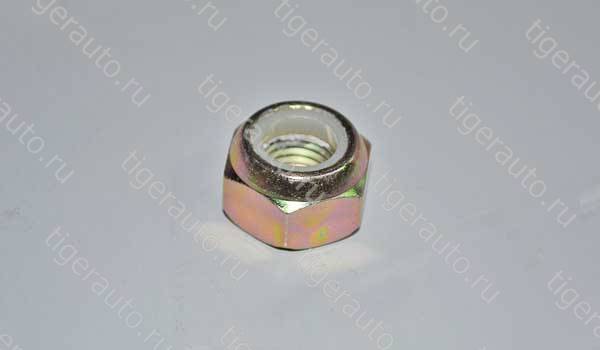

| 1 | N0111862 | NUT |
 |
2 | |
| 2 | Q1840610 | HEX FLANGE BOLT |
 |
2 | |
| 3 | Q184B1275 | BOLT |
 |
2 | |
| 4 | T213401010BB | STEERING MECHANISM, TRACK ROD |
|
1 | |
| 5 | T213401011 | SHOCK ABSORPTION SLEEVE 1 |
|
1 | |
| 6 | T213401021 | SHOCK ABSORPTION SLEEVE 2 |
|
1 | |
| 7 | T213401101 | CLIP |
|
1 | |
| 8 | T213401103 | SLEEVE-STEERING TRACK ROD |
|
1 | |
| 9 | T213401105 | CLIP |
|
1 | |
| 10 | T213401300 | STEERING TRACK ROD-LH |
|
1 | |
| 11 | T213401310 | STEERING TRACK ROD |
|
1 | |
| T213401310 | STEERING TRACK ROD |
|
1 | ||
| 12 | T213401330 | OTR BALL PIN LH |
|
1 | |
| 13 | T213401400 | STEERING TRACK ROD-RH |
|
1 | |
| 14 | T213401430 | OTR BALL PIN RH |
|
1 | |
| 15 | T213412010 | HEAT INSULATION PLATE-STEERING MECHANISM |
|
1 | |
| 16 | CQ67680 | WORM HOOP 80 |
 |
1 | |
| 17 | Q1860820TF2 | HEX FLANGE BOLT |
 |
2 | |
| 18 | Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
3 | |
| Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
3 | ||
| 19 | Q33008 | PREVALING TORQUE TYPE ALL METAL HEXAGON |
|
2 | |
| 20 | S116101021 | NUT SEAT |
 |
1 | |
| 21 | T213404010 | STEERING COLUMN, MD SHAFT |
|
1 | |
| 22 | MR6370A3404010 | BOLT-STEERING COLUMN |
|
1 | |
| 23 | Q40308 | GASKET |
|
1 | |
| 24 | T213404060 | SLEEVE-STEERING TRACK ROD |
|
1 | |

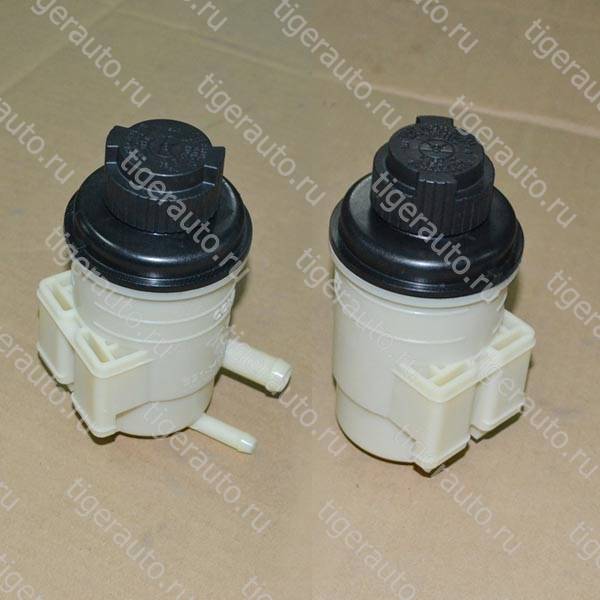

| 25 | B213408010BA | FLUID RESERVOIR |
 |
1 | |

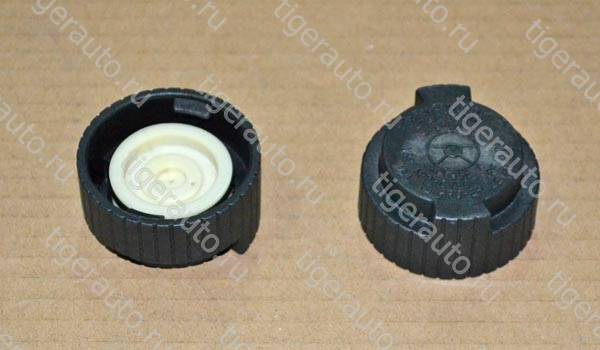

| 26 | B213408021 | COVER-FLUID RESERVOIR |
 |
1 | |
| 27 | Q1840612 | HEXAGON BOLT WITH FLANGE M6X12 |
|
2 | |
| 28 | Q1840816 | HEX FLANGE BOLT |
|
2 | |
| 29 | Q1860612 | HEAVY SERIES HEXAGON BOLT WITH FLANGE M6 |
|
2 | |
| 30 | T213406100BA | OIL PIPE-HIGH PRESSURE |
|
1 | |
| 31 | T213406200 | OIL SUCTION PIPE-STEERING |
|
1 | |
| 32 | T213406310 | OIL RETURN PIPE 1-STEERING |
|
1 | |
| 33 | T213406320 | OIL RETURN PIPE 2-STEERING |
|
1 | |
| 34 | T213406330 | COOLING PIPE |
|
1 | |
| 35 | T213412080 | BRACKET-FLUID RESERVOIR |
|
1 |
