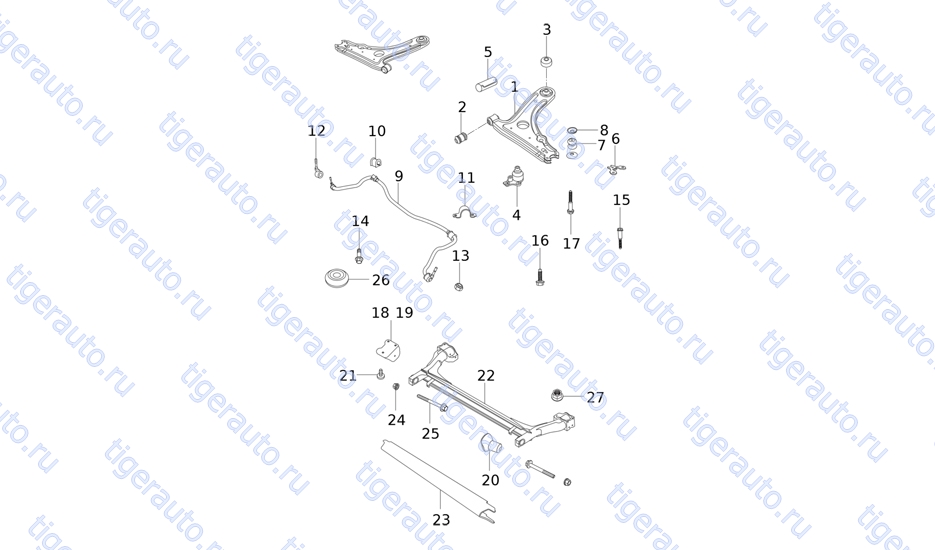

SUSPENSION Chery Very (A13A)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|

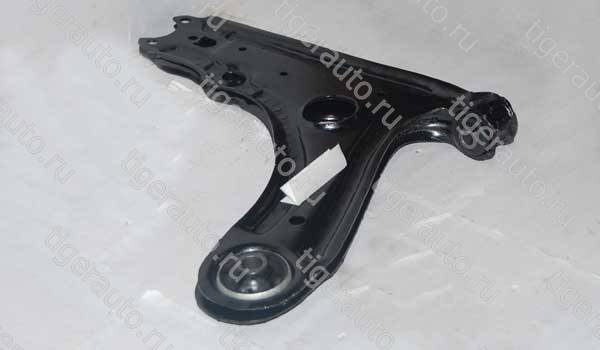

| 1 | A112909010 | CONTROL ARM |
 |
2 | |
| 2 | A112909040 | FR RUBBER SLEEVE |
 |
1 | |
| 3 | A112909050 | RR BUBBER SLEEVE |
 |
1 | |
| 4 | A112909060 | BALL PIN |
 |
1 | |

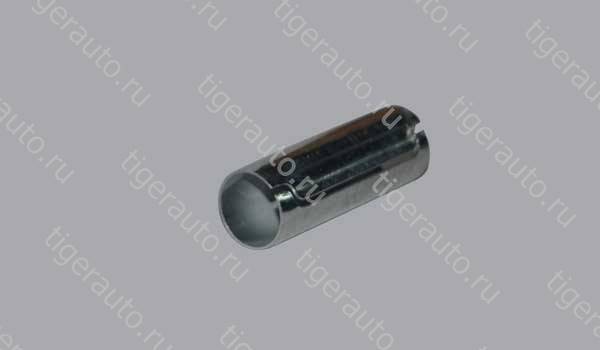

| 5 | A112909057 | ELASTIC GUIDE PIPE |
 |
2 | |
| 6 | A112909070 | GASKET-CONTROL AMR&BALL JOINT |
 |
2 | |

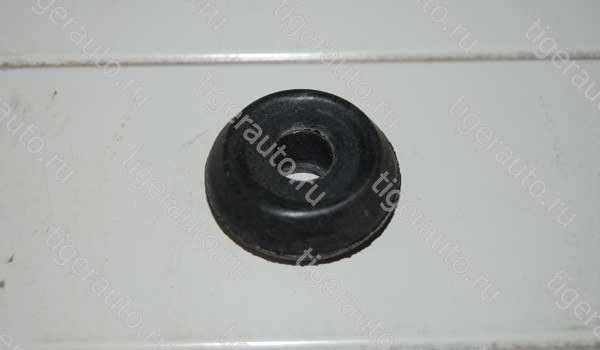

| 7 | A112906025 | RUBBER SLEEVE-STABILIZER ROD END |
 |
4 | |

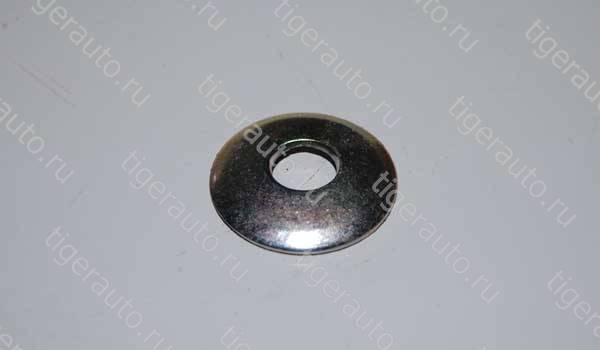

| 8 | A112906027 | GASKET-STABILIZER END |
 |
4 | |

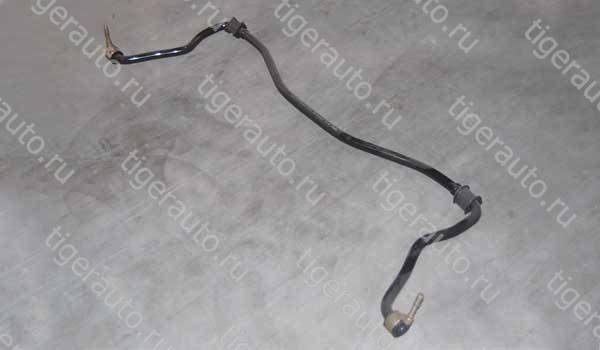

| 9 | A132906010 | STABILIZER ROD |
 |
1 | |

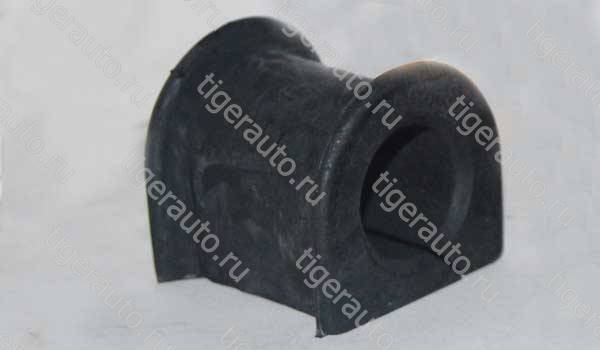

| 10 | A132906013 | RUBBER BRACKET-STABILIZER ROD |
 |
2 | |
| 11 | A132906015 | CLIP-STABILIZER ROD |
 |
2 | |
| 12 | A132906020 | CONNECTING ROD |
 |
2 | |
| 13 | N0111862 | NUT |
 |
2 | |
| 14 | Q1840825 | HEXAGON BOLT WITH FLANGE M8X25 |
 |
2 | |
| 15 | N10087403 | BOLT |
 |
2 | |

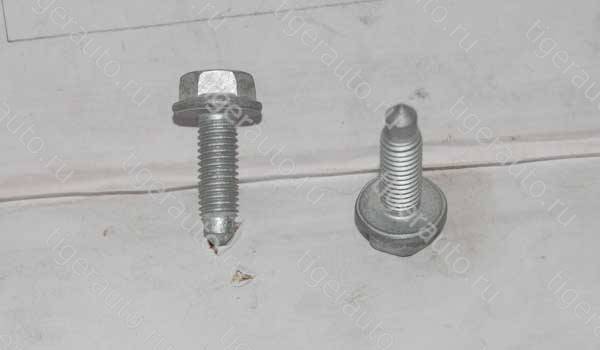

| 16 | N10127702 | BOLT-GASKET |
 |
6 | |
| 17 | N90484001 | BOLT-CONTROL ARM TO SUB-FRAME |
 |
2 | |
| 18 | A113301021 | LH BRACKET-RR AXLE |
 |
1 | |
| 19 | A113301022 | RH BRACKET-RR AXLE |
 |
1 | |
| 20 | A113301025 | RUBBER HINGE |
 |
2 | |

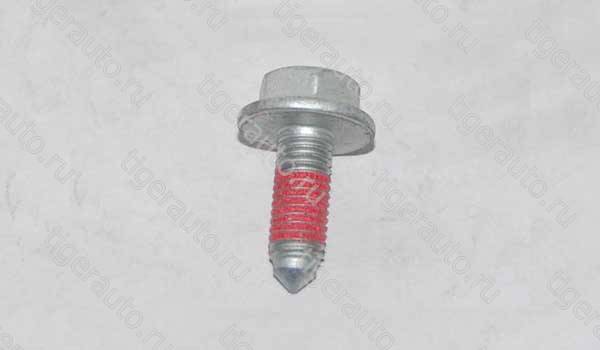

| 21 | A113301031 | BOLT |
 |
6 | |

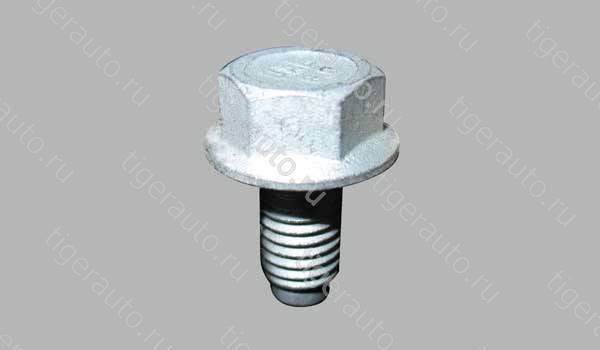

| N0195382 | BOLT |
 |
4 | ||

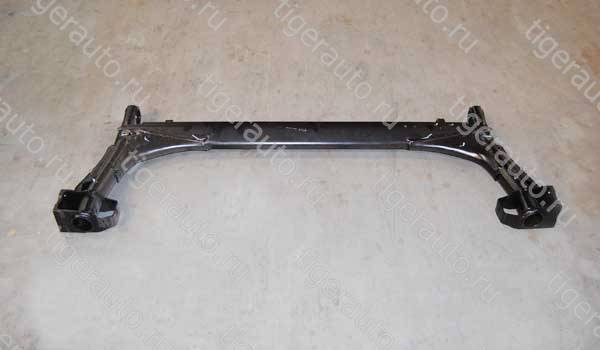

| 22 | A133301070FA | RR AXLE |
 |
1 | |
| 23 | A113301071 | RR BEAM |
 |
1 | |

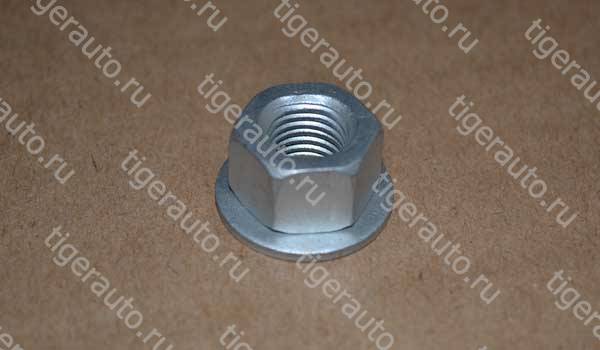

| 24 | N90238503 | NUT |
 |
2 | |
| 25 | N90354401 | BOLT |
 |
2 | |
| 26 | A132906025 | RUBBER SLEEVE-STABILIZER ROD END |
 |
1 | |
| 27 | Q330C10 | PREVALING TORQUE TYPE ALL METAL HEXAGON |
 |
1 | |
| Q330C10T13F31 | PREVALING TORQUE TYPE ALL METAL HEXAGON |
 |
1 |
