TRANSMISSION CASE Chery Very (A13A)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|

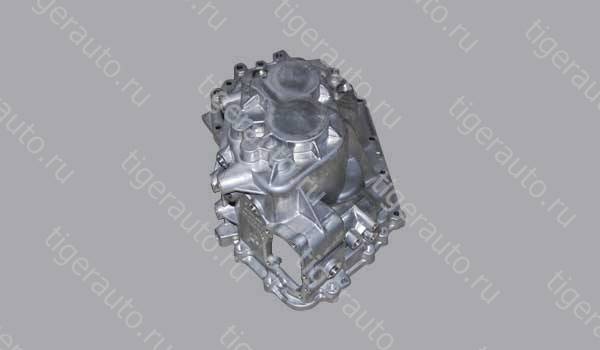

| 1 | 515MHA1701101CA | TRANSMISSION HOUSING |
 |
1 | |

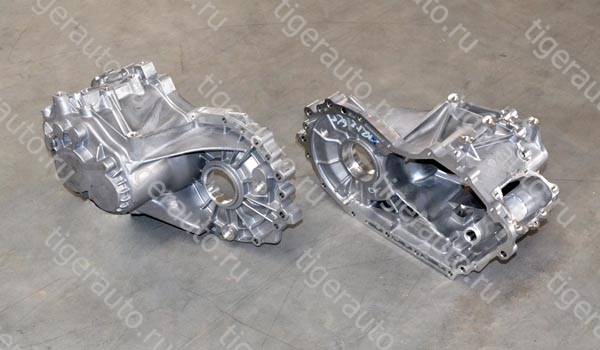

| 515MHA1701101FA | TRANSMISSION HOUSING |
 |
1 | ||

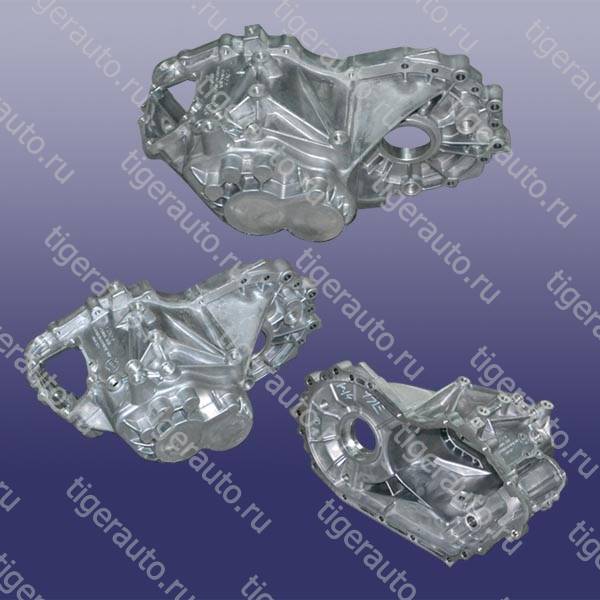

| 515MHA1701101KA | TRANSMISSION HOUSING |
 |
1 | ||
| 2 | Q1841020 | HEX FLANGE BOLT |
 |
1 | |
| 3 | 515MHA1701105 | OIL SLOT |
 |
1 | |
| 4 | Q5210510 | LOCATING PIN |
 |
2 | |
| 5 | QR519MHA1702522 | BEARING |
 |
1 | |
| 6 | QR5231701203 | OIL SEAL-DIFFERENTIAL |
 |
1 | |
| QR5231701203 | OIL SEAL-DIFFERENTIAL |
|
1 | ||
| 7 | 513MHA1701202 | WEARABLE SLEEVE |
 |
1 | |
| QR513MHA1701202 | WEARABLE SLEEVE |
 |
2 | ||
| 8 | 513MHA1701205 | OIL PIPE-OUTPUT SHAFT |
 |
1 | |
| 9 | 515MHA1701201 | CLUTCH HOUSING |
 |
1 | |

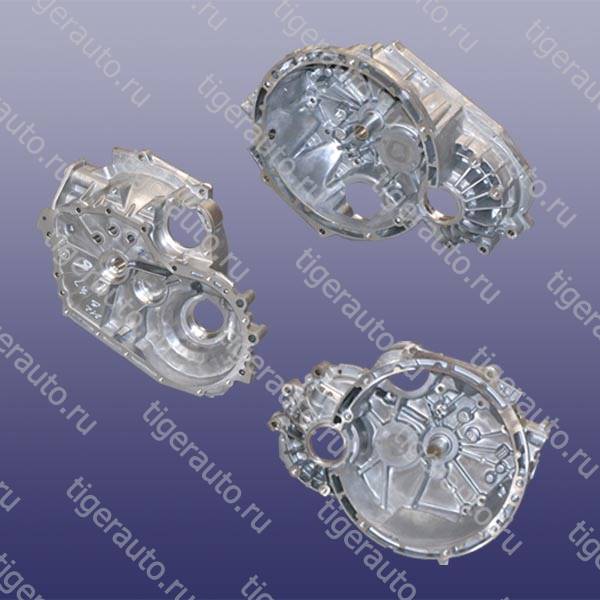

| 515MHA1701201FA | CLUTCH HOUSING |
 |
1 | ||
| 10 | Q5211020 | LOCATING PIN |
 |
2 | |

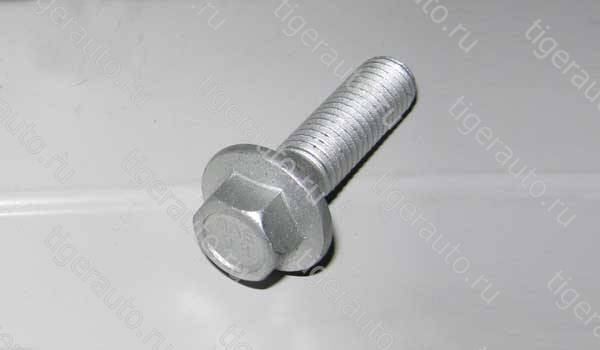

| 11 | Q1841035 | HEX-HEAD FLANG BOLT |
 |
1 | |
| 12 | QR5231701206 | OIL SEAL-INPUT SHAFT |
 |
1 | |
| 13 | 515MHA1702060 | BRACKET-SUB CLUTCH PUMP |
 |
1 | |

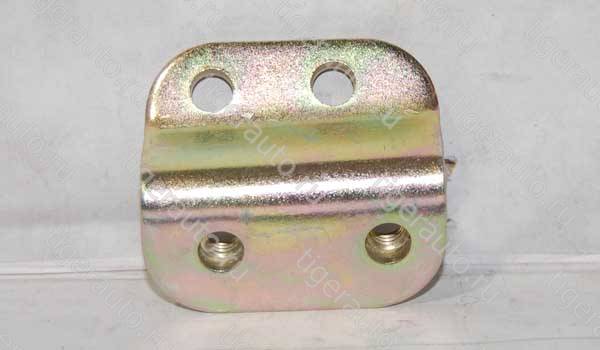

| 515MHA1702060BA | BRACKET-SUB CLUTCH PUMP |
 |
1 | ||

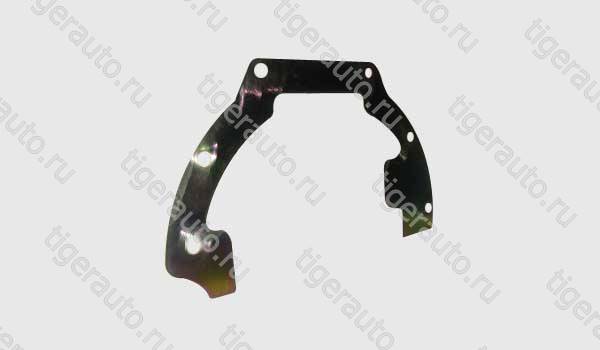

| 14 | A111700111 | UPR GASKET |
 |
1 | |

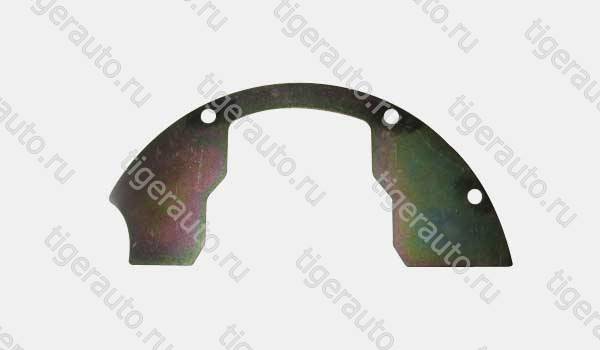

| 15 | A111700113BA | LWR GASKET |
 |
1 | |
| 16 | A151602043 | BRACKET 2 |
 |
1 | |
| 17 | FQ185C1050T1F3A | SCREW |
 |
1 | |

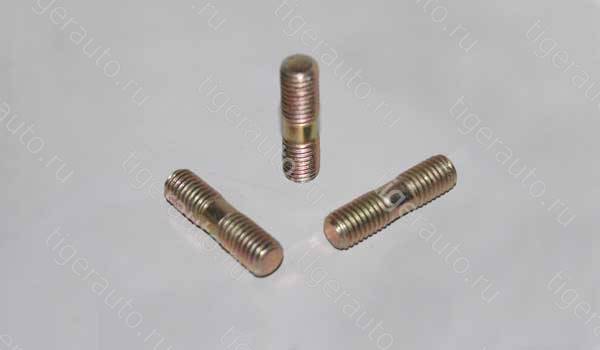

| 18 | Q1241026 | STUD |
 |
1 | |
| 19 | Q1840820 | HEXAGON BOLT WITH FLANGE M8X20 |
|
4 | |
| 20 | Q1840820T1F2 | BOLT |
 |
2 | |
| 21 | Q1840816 | HEX FLANGE BOLT |
|
2 | |
| Q1840825 | HEXAGON BOLT WITH FLANGE M8X25 |
|
1 | ||
| 22 | Q1841040 | HEX-HEAD FLANG BOLT |
|
1 | |
| 23 | Q1841045 | HEX-HEAD FLANG BOLT |
 |
1 | |
| 24 | Q1860845 | BOLT-CLUTCH&TRANSMISSION HOUSING |
 |
10 | |
| 25 | Q1860840 | BOLT |
|
5 | |
| 27 | QR519MHA1703521 | HOOK |
 |
1 | |
| 28 | QR519MHA1703522 | BOLT-HOOK |
 |
1 | |
| 29 | QR5231701102 | OIL DRAIN PLUG |
 |
2 | |
| 30 | QR5231701103 | WASHER-OIL DRAIN PLUG |
 |
2 | |
| 31 | QR5231701204 | PLUG |
 |
2 | |
| 32 | QR5231701220 | MAGNET |
 |
1 | |
| 33 | QR5233802505 | PLUG-SPEEDO SENSOR |
 |
1 | |
| 34 | T111KD400401175W2 | TRANSMISSION LUBRICATION OIL |
 |
1 |
