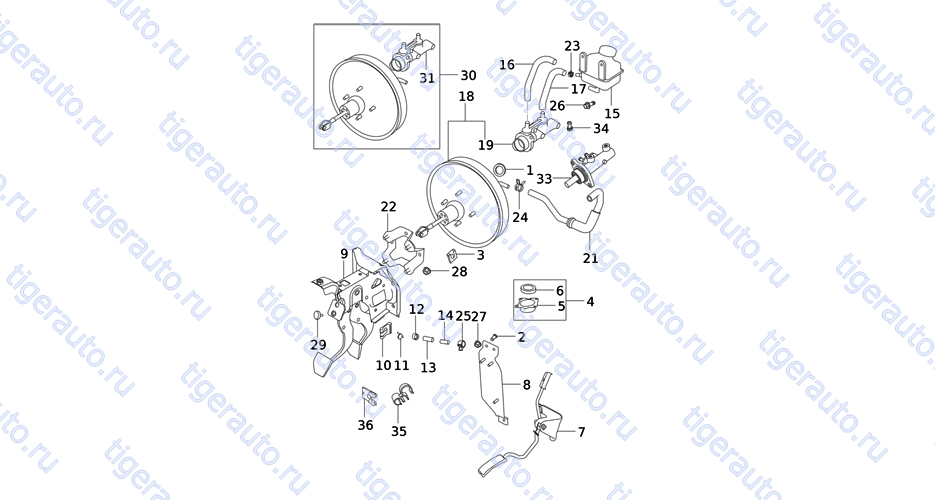

VACUUM BOOSTER AND OPERATION SYSTEM (CA) Chery Very (A13A)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|

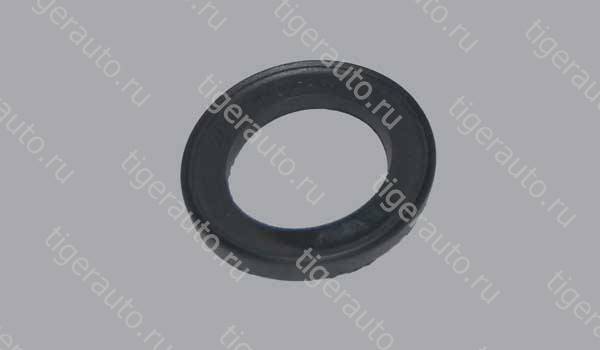

| 1 | A113510031 | SEAL |
 |
1 | |
| A113510031 | SEAL |
|
1 | ||

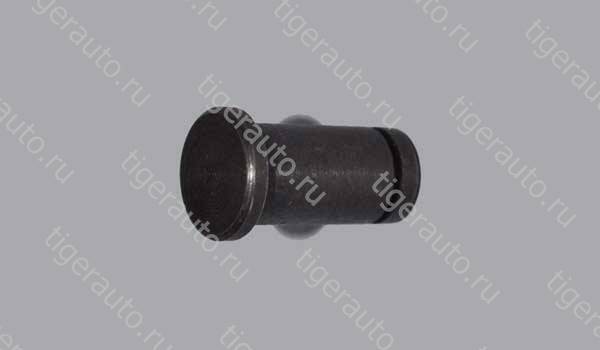

| 2 | A113510033 | PIN SHAFT |
 |
1 | |
| A113510033 | PIN SHAFT |
|
1 | ||

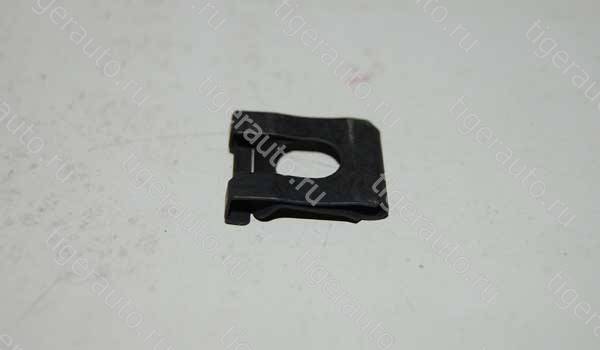

| 3 | A113510035 | SHAFT CIRCLIP |
 |
1 | |
| A113510035 | SHAFT CIRCLIP |
|
1 | ||

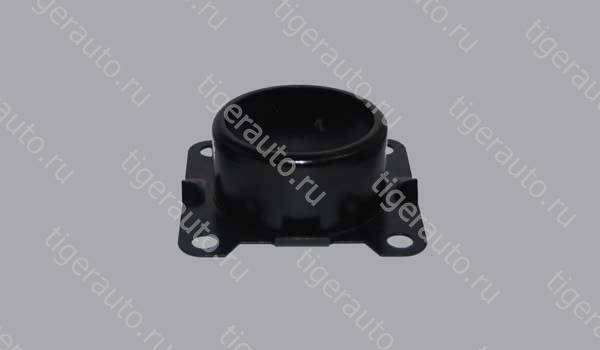

| 5 | A113510051 | HEAT INSULATION PLATE |
 |
1 | |
| A113510051 | HEAT INSULATION PLATE |
|
1 | ||
| 6 | A113510053 | ANTI-HEAT PROTECTING PLATE |
 |
1 | |
| A113510053 | ANTI-HEAT PROTECTING PLATE |
|
1 | ||

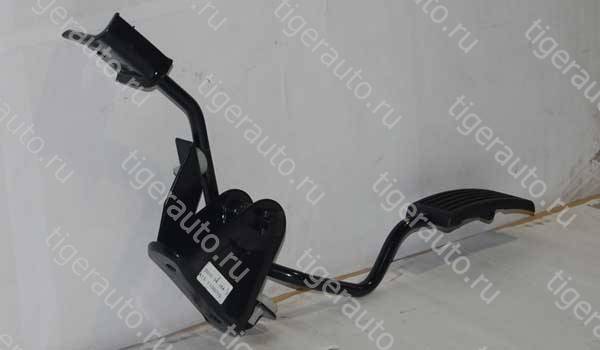

| 7 | A131108010 | ACCELERATOR PEDAL |
 |
1 | |
| A131108010 | ACCELERATOR PEDAL |
|
1 | ||

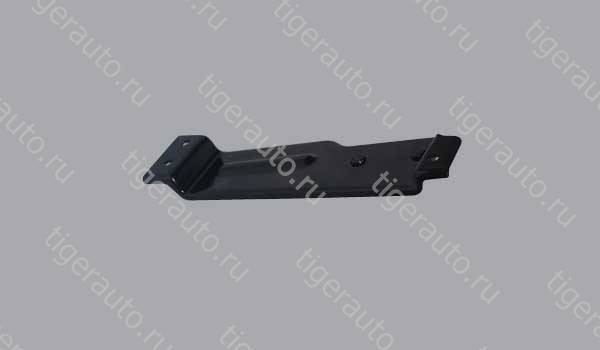

| 8 | A131108120BA | BRACKET-ACCELERATOR PEDAL |
 |
1 | |
| A131108120BA | BRACKET-ACCELERATOR PEDAL |
|
1 | ||

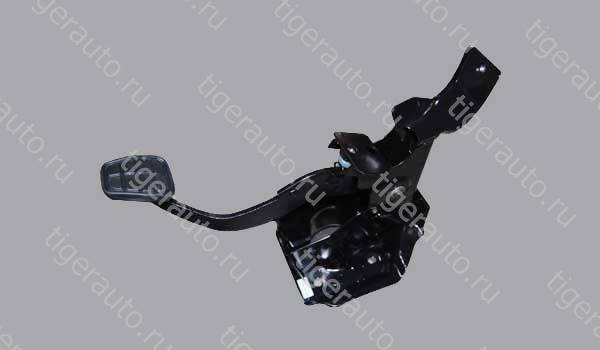

| 9 | A133504010 | BRAKE PEDAL |
 |
1 | |
| A133504010 | BRAKE PEDAL |
|
1 | ||

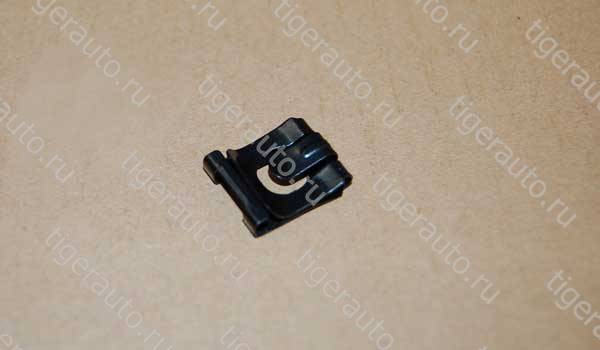

| 10 | A133504203 | GASKET-BRAKE PEDAL |
 |
1 | |
| A133504203 | GASKET-BRAKE PEDAL |
|
1 | ||
| 11 | A133504211 | SPRING-BRAKE PEDAL |
 |
1 | |
| A133504211 | SPRING-BRAKE PEDAL |
|
1 | ||
| 12 | A133504215 | SLEEVE-BRAKE PEDAL |
 |
1 | |
| A133504215 | SLEEVE-BRAKE PEDAL |
|
1 | ||

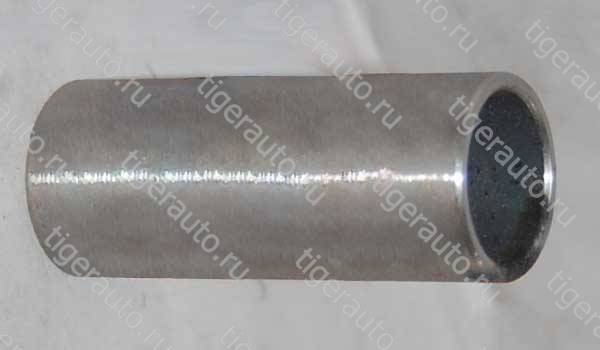

| 13 | A133504216 | SUPPORT PIPE-BRAKE PEDAL |
 |
1 | |
| A133504216 | SUPPORT PIPE-BRAKE PEDAL |
|
1 | ||

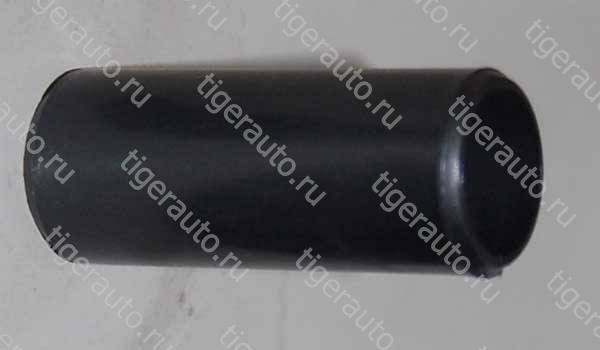

| 14 | A133504217 | SHAFT SLEEVE-BRAKE PEDAL |
 |
1 | |
| A133504217 | SHAFT SLEEVE-BRAKE PEDAL |
|
1 | ||

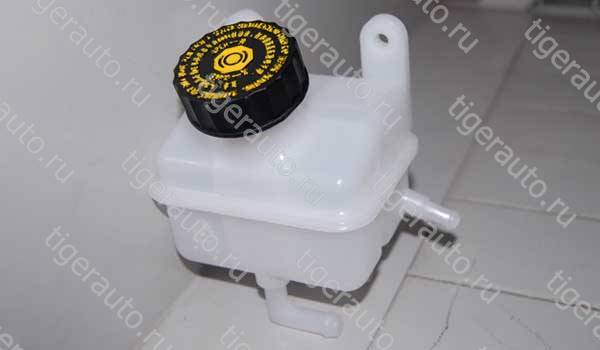

| 15 | A133505110 | FLUID RESERVOIR |
 |
1 | |
| A133505110 | FLUID RESERVOIR |
|
1 | ||
| A133505110AB | FLUID RESERVOIR |
 |
1 | ||
| A133505110AB | FLUID RESERVOIR |
|
1 | ||

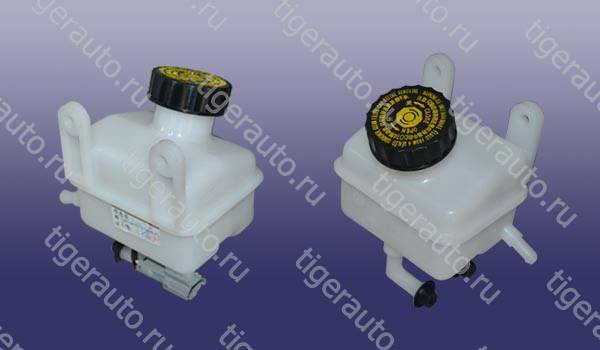

| A133505110AC | FLUID RESERVOIR |
 |
1 | ||
| A133505110AC | FLUID RESERVOIR |
|
1 | ||
| 16 | A133505111 | PIPE-FLUID RESERVOIR TO MASTER CYLINDER |
 |
1 | |
| A133505111 | PIPE-FLUID RESERVOIR TO MASTER CYLINDER |
|
1 | ||
| 17 | A133505112 | PIPE-FLUID RESERVOIR TO MASTER CYLINDER |
 |
1 | |
| A133505112 | PIPE-FLUID RESERVOIR TO MASTER CYLINDER |
|
1 | ||

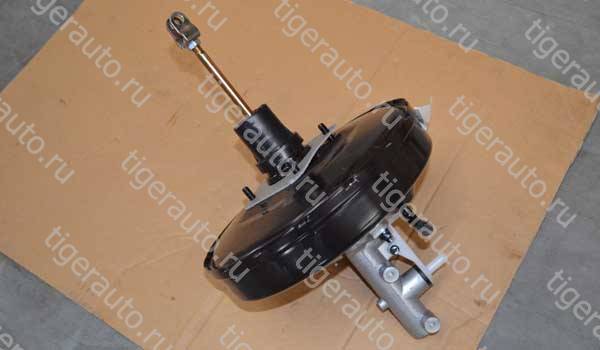

| 18 | A133510010 | VACUUM BOOSTER&MASTER BRAKE CYLINDER |
 |
1 | |
| A133510010 | VACUUM BOOSTER&MASTER BRAKE CYLINDER |
|
1 | ||
| A133510010AD | VACUUM BOOSTER&MASTER BRAKE CYLINDER |
 |
1 | ||
| A133510010AD | VACUUM BOOSTER&MASTER BRAKE CYLINDER |
|
1 | ||

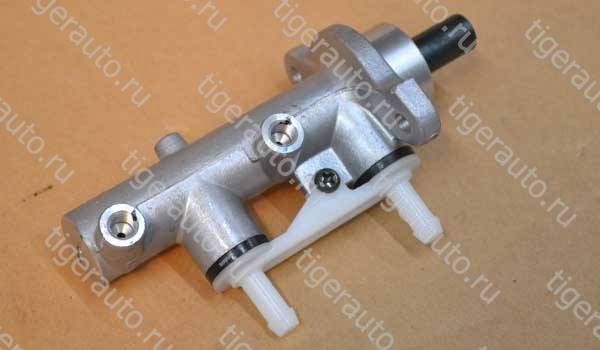

| 19 | A133505010 | MASTER BRAKE CYLINDER |
 |
1 | |
| A133505010 | MASTER BRAKE CYLINDER |
|
1 | ||
| 21 | A133510110 | VACUUM TUBE |
|
1 | |
| A133510110 | VACUUM TUBE |
|
1 | ||

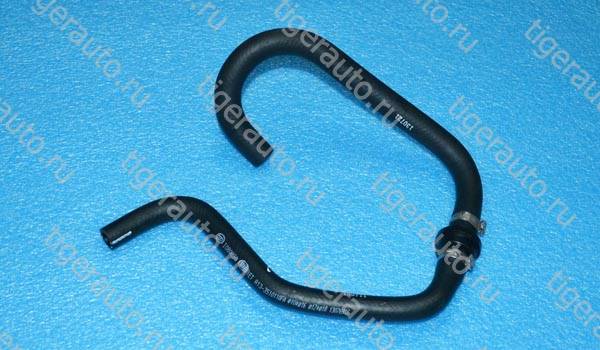

| A133510110FA | VACUUM TUBE |
 |
1 | ||
| A133510110FA | VACUUM TUBE |
|
1 | ||

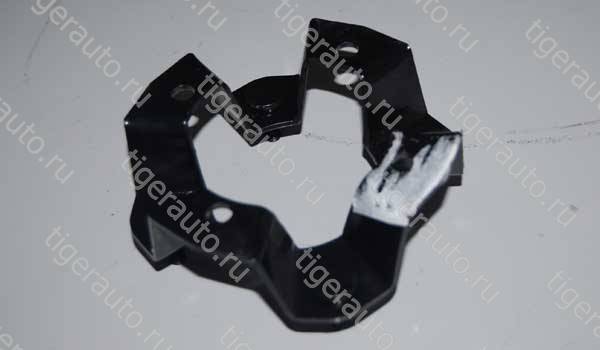

| 22 | A133510810 | BRACKET-VACUUM BOOSTER |
 |
1 | |
| A133510810 | BRACKET-VACUUM BOOSTER |
|
1 | ||
| 23 | AQ60114 | SPRING RING HOOP |
 |
1 | |
| AQ60114 | SPRING RING HOOP |
|
1 | ||

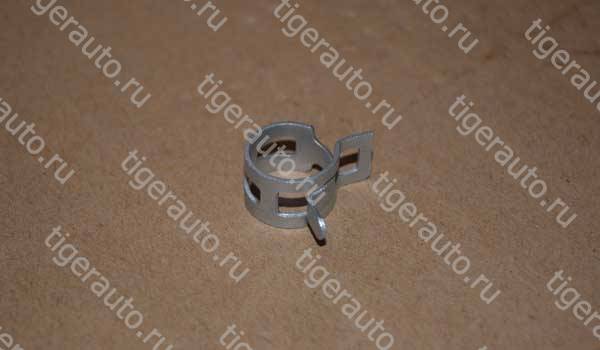

| 24 | AQ60118 | HOOP |
 |
1 | |
| AQ60118 | HOOP |
|
1 | ||
| AQ60115 | SPING RING HOOP_D15 |
 |
4 | ||
| AQ60115 | SPING RING HOOP_D15 |
|
4 | ||

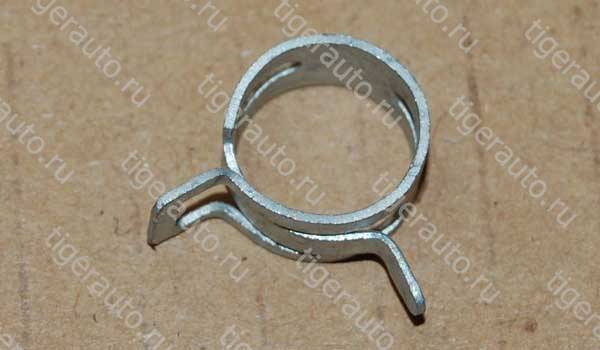

| 25 | AQ60116 | HOOP |
 |
1 | |
| AQ60116 | HOOP |
|
1 | ||
| AQ60120 | SPRING RING HOOP |
 |
1 | ||
| AQ60120 | SPRING RING HOOP |
|
1 | ||
| 26 | Q1840816 | HEX FLANGE BOLT |
|
1 | |
| Q1840816 | HEX FLANGE BOLT |
|
1 | ||
| 27 | Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
7 | |
| Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
7 | ||
| 28 | Q32008 | HEXAGON BUT WITH FLANGE M8 |
|
8 | |
| Q32008 | HEXAGON BUT WITH FLANGE M8 |
|
8 | ||

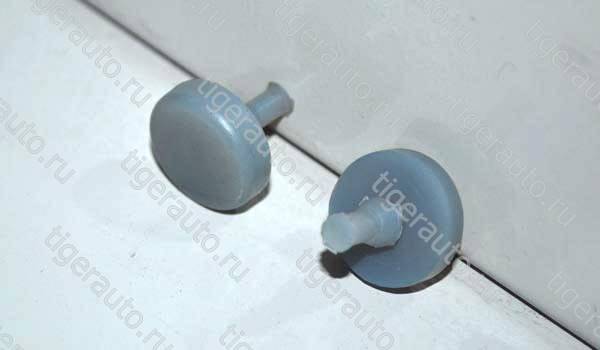

| 29 | A133504300 | CUSHION-BRAKE PEDAL |
 |
1 | |
| A133504300 | CUSHION-BRAKE PEDAL |
|
1 | ||
| 30 | A133510010AB | VACUUM BOOSTER&MASTER BRAKE CYLINDER |
 |
1 | |
| A133510010AB | VACUUM BOOSTER&MASTER BRAKE CYLINDER |
|
1 | ||

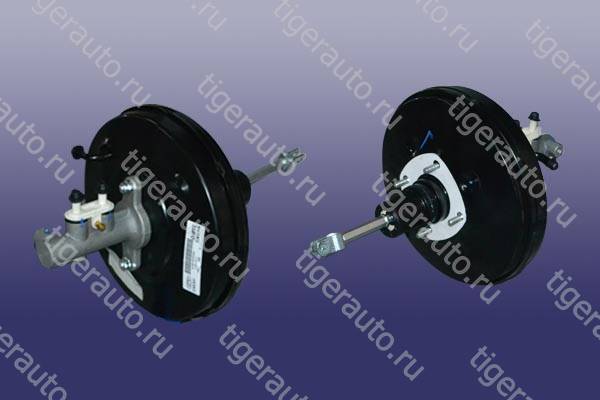

| A133510010AC | VACUUM BOOSTER&MASTER BRAKE CYLINDER |
 |
1 | ||
| A133510010AC | VACUUM BOOSTER&MASTER BRAKE CYLINDER |
|
1 | ||

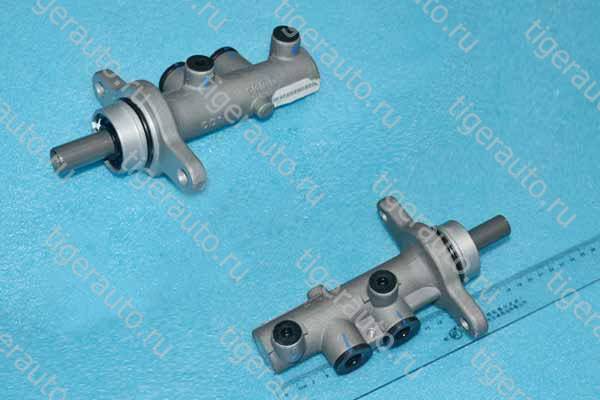

| 31 | A133505010AC | MASTER BRAKE CYLINDER |
 |
1 | |
| A133505010AC | MASTER BRAKE CYLINDER |
|
1 | ||

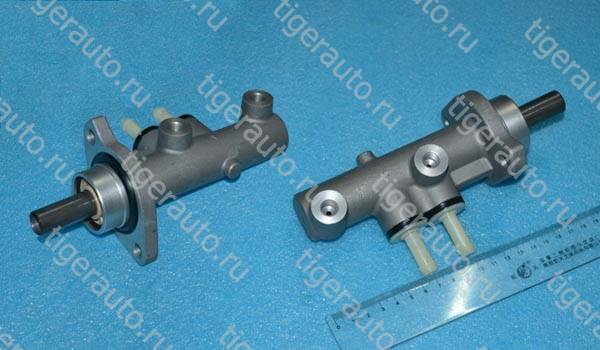

| 33 | A133505010AB | MASTER BRAKE CYLINDER |
 |
1 | |
| A133505010AB | MASTER BRAKE CYLINDER |
|
1 | ||
| 34 | A136AV3505012AB | JOINT-FLUID RESERVOIR |
|
1 | |
| A136AV3505012AB | JOINT-FLUID RESERVOIR |
|
1 | ||

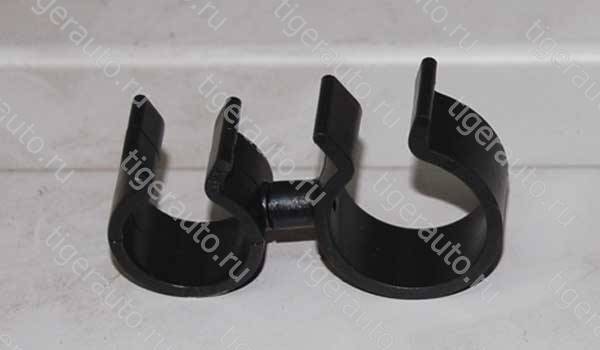

| 35 | S111008111 | CLIP |
 |
1 | |
| S111008111 | CLIP |
|
1 | ||
| 36 | A113504203 | GASKET |
 |
1 | |
| A113504203 | GASKET |
|
1 |
