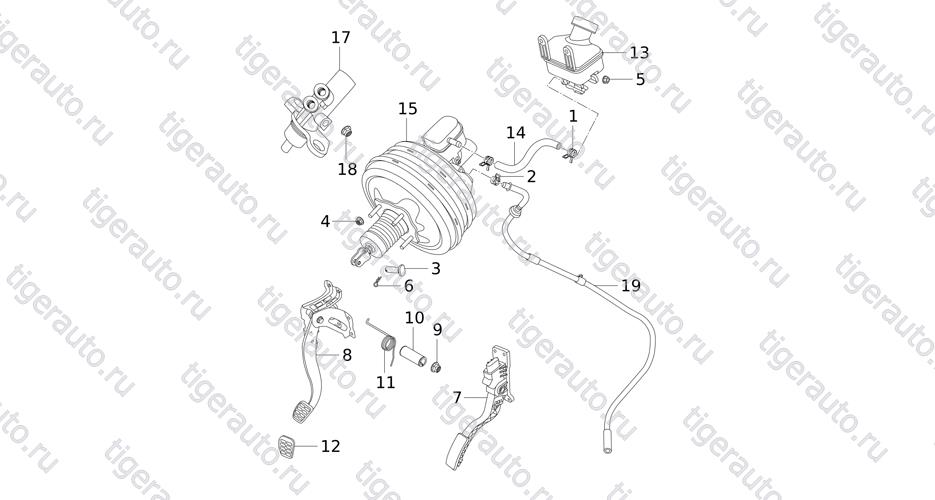

VACUUM BOOSTER AND OPERATION SYSTEM Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | AQ60115 | SPING RING HOOP_D15 |
 |
2 | |
| 2 | AQ60120 | SPRING RING HOOP |
 |
1 | |
| 3 | B113510035 | PIN SHAFT |
 |
1 | |
| 4 | Q32006F31 | HEXAGON BUT WITH FLANGE M6 |
 |
5 | |
| 5 | Q32008 | HEXAGON BUT WITH FLANGE M8 |
|
6 | |
| 6 | Q50108 | LOCKPIN |
|
1 | |
| 7 | S121108010 | ACCELERATOR PEDAL |
 |
1 | |
| S121108010EA | ACCELERATOR PEDAL |
|
1 | ||
| 8 | T213504010 | BRAKE PEDAL |
|
1 | |
| 9 | Q33010 | NUT-FRAME&STABILIZER ROD |
|
1 | |
| 10 | T213504016 | SLEEVE-ACCELERATOR PEDAL |
|
2 | |
| 11 | T213504018 | BRAKE SPRING |
|
1 | |
| 12 | T213504033 | FOOT CUSHION |
|
1 | |
| 13 | T213505110 | FLUID RESERVOIR |
|
1 | |
| 14 | T213505111 | CONNECTING PIPE-FLUID RESERVOIR |
|
1 | |
| 15 | T213510010 | VACUUM BOOSTER, MASTER BRAKE CYLINDER |
|
1 | |
| 16 | T213505113 | FLUID RESERVOIR |
|
||
| 17 | T216GN3505010 | MASTER BRAKE CYLINDER |
|
||
| 18 | T216GN3505115 | NUT-MASTER CYLINDER |
|
||
| 19 | T213510110 | BRAKE VACUUM TUBE |
|
1 |
