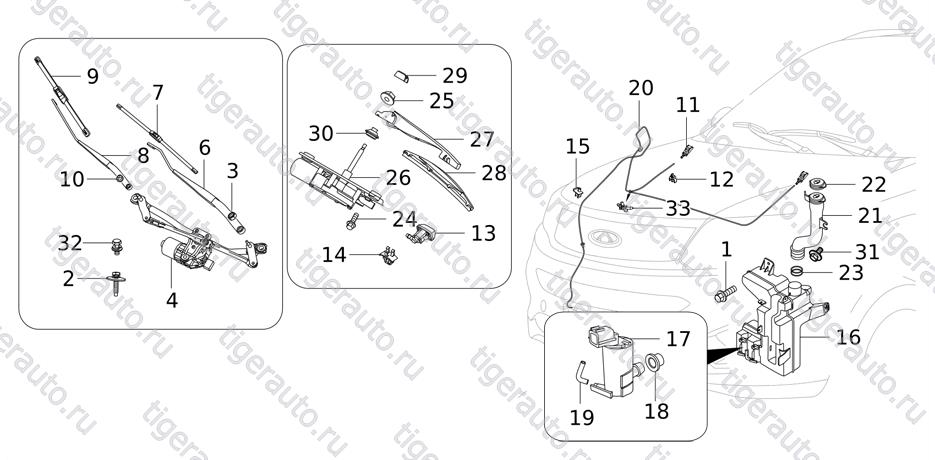

WINDSCREEN WASHER SYSTEM Chery Tiggo 5 (T21)
| № | Артикул | Название | IMG | QTY | Примечание |
|---|---|---|---|---|---|
| 1 | Q1840618F31 | SCREW |
 |
4 | |
| 2 | B115205223 | BOLT |
 |
3 | |
| 3 | Q340B08 | NUT-FLANGE, HEXAGON |
 |
2 | |
| 4 | T215205110 | MOTOR, WIPER INTERLOCKING ROD |
|
1 | |
| 5 | T215205113 | WIPER INTERLOCKING ROD |
|
1 | |
| 6 | T215205131 | WIPER ARM-MASTER |
|
1 | |
| 7 | T215205153 | WIPER BLADE-MASTER |
|
1 | |
| 8 | T215205141 | WIPER ARM-SUB |
|
1 | |
| 9 | T215205143 | WIPER BLADE-SUB |
|
1 | |
| 10 | T215205171 | TRIM CAP |
|
2 | |

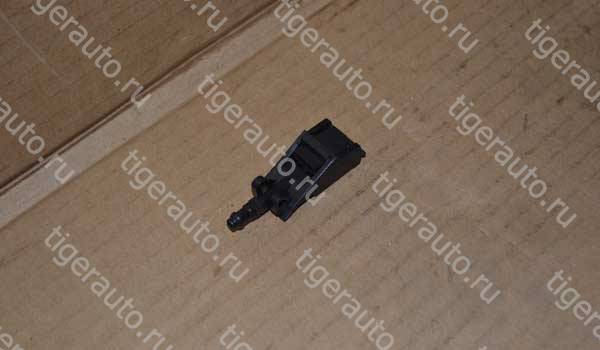

| 11 | M115207171 | FR NOZZLE |
 |
2 | |

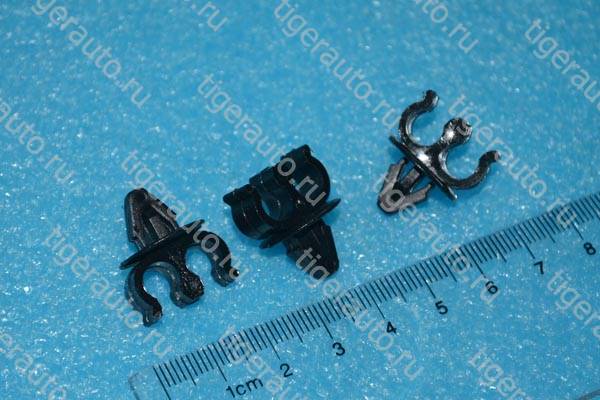

| 12 | M125207139 | FIXING CLIP |
 |
3 | |

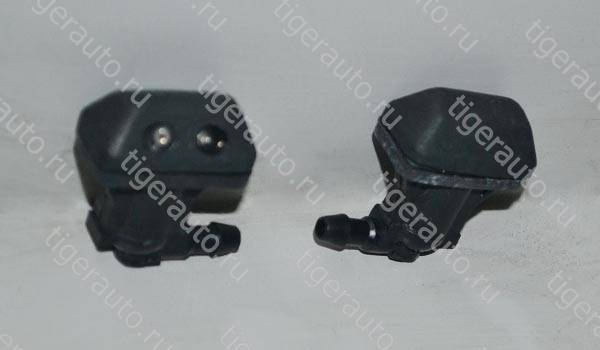

| 13 | M125207190 | RR NOZZLE |
 |
1 | |

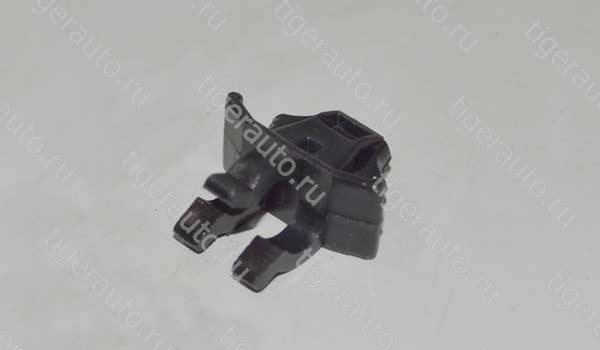

| 14 | S185207171 | CLIP |
 |
3 | |
| 15 | T115207331 | WATER PIPE CLIP |
|
1 | |
| 16 | T215207110 | WASHER RESERVOIR |
|
1 | |

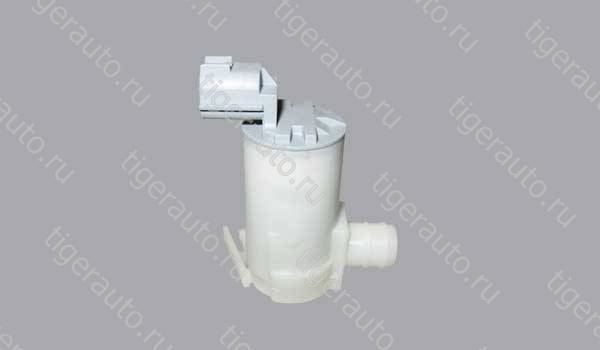

| 17 | A215207023 | WASHER PUMP |
 |
2 | |

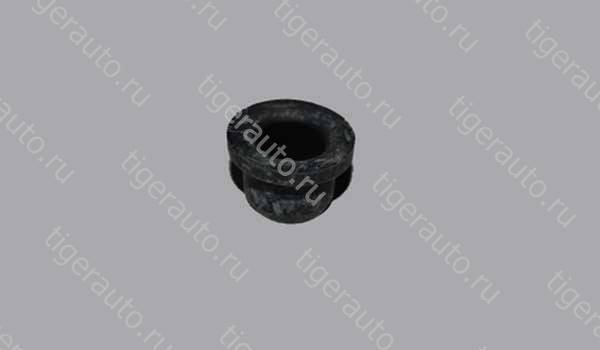

| 18 | A215207025 | SEAL-WASHER PUMP |
 |
2 | |
| 19 | T115207325 | WATER PIPE 5 |
|
1 | |
| 20 | T215207130 | FR WASHER PIPELINE |
|
1 | |
| 21 | T215207150 | HONEYCOMB DUCT |
|
1 | |

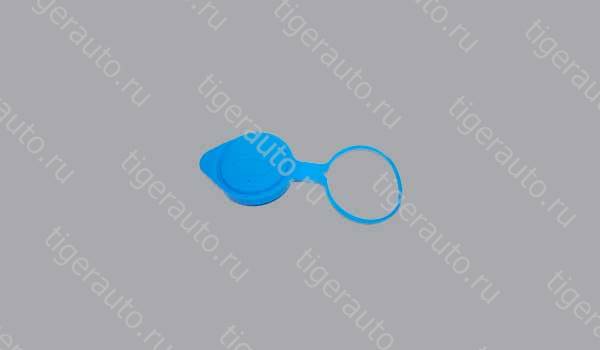

| 22 | B145207153 | CAP-WASHER RESERVOIR |
 |
1 | |
| T215207153 | CAP-WASHER RESERVOIR |
|
1 | ||
| 23 | T215207155 | SEAL |
|
1 | |
| 24 | Q1860620 | HEX FLANGE BOLT |
|
3 | |
| 25 | Q32006 | HEXAGON BUT WITH FLANGE M6 |
|
1 | |
| 26 | T215611110 | RR WIPER MOTOR |
|
1 | |
| 27 | T215611131 | RR WIPER ARM |
|
1 | |
| 28 | T215611133 | RR WIPER BLADE |
|
1 | |
| 29 | T215611135 | TRIM CAP |
|
1 | |
| 30 | T215611151 | RUBBER SLEEVE |
|
1 | |
| 31 | FQ1400615LF31 | HEXAGON HEAD BOLT AND LARGE PLAIN WASHER |
 |
1 | |
| 32 | FQ146D0620F31E | HEXAGON HEAD BOLT SINGLE COIL SPRING LOC |
 |
1 | |

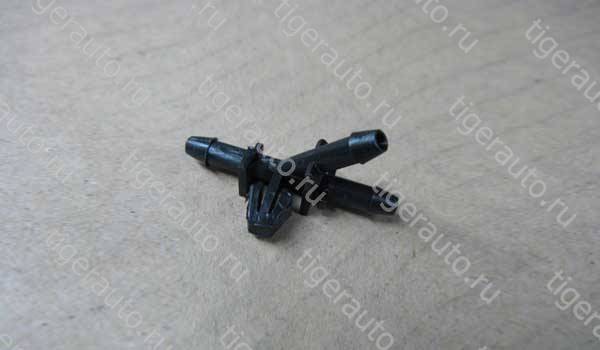

| 33 | B115207141 | THREE-WAY PIPE |
 |
1 |
